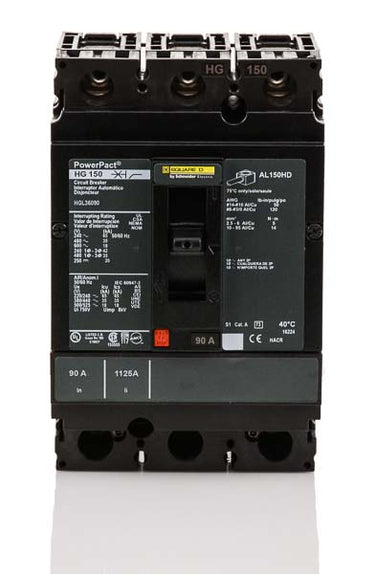

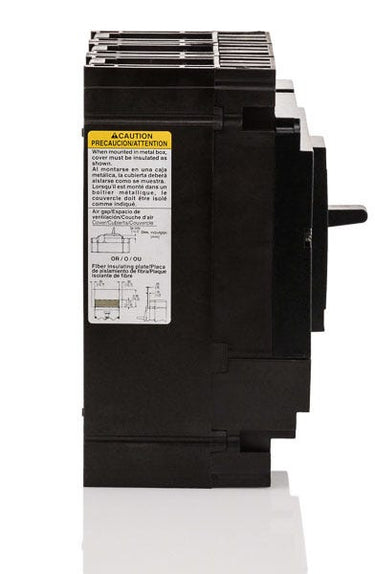

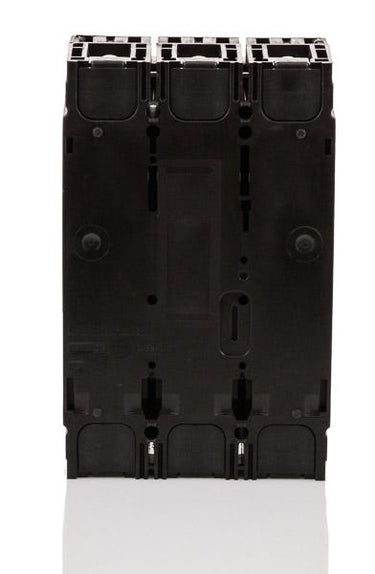

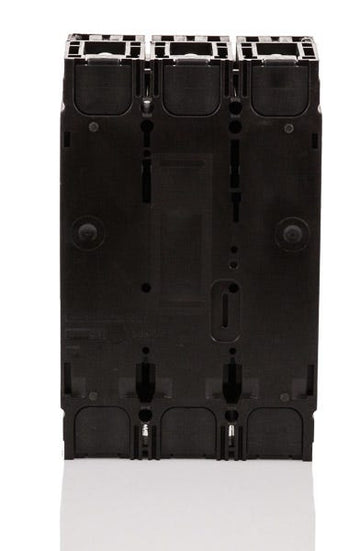

Square D HGL36090 Molded Case Circuit Breaker
- 90A
- 3 Pole
- Unit Mount
Square D
HGL36090
Molded Case Circuit Breaker
Brand
Square D
SKU
HGL36090
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HGL36090 - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D HGL36090 - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Series | HGL |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | HGL |
|---|---|
| Terminal Type | Lugs |
| For Use With | PowerPacT H-Frame Enclosures, Switchboards, Industrial Control Panels, NF Panelboards (Main), NQ Panelboards (Main) |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Non-Interchangeable Trip |
Quantity
Square D HGL36090 - 90A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | HGL |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | HGL |
|---|---|
| Terminal Type | Lugs |
| For Use With | PowerPacT H-Frame Enclosures, Switchboards, Industrial Control Panels, NF Panelboards (Main), NQ Panelboards (Main) |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Non-Interchangeable Trip |
Similar Items
80A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
Description
Belonging to the Square D PowerPacT H-Frame series, this 3-pole, 90A MCCB delivers dependable thermal-magnetic protection for industrial facilities. Designed with a unit-mount configuration, it integrates into switchboards and control panels. It is fully compatible as a substitute for discontinued FHL36090 breakers. Featuring a 65kAIC rating at 240V, it provides fixed long-time and instantaneous (LI) trip functions. The unit is HACR rated and includes a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Series | HGL |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | HGL |
|---|---|
| Terminal Type | Lugs |
| For Use With | PowerPacT H-Frame Enclosures, Switchboards, Industrial Control Panels, NF Panelboards (Main), NQ Panelboards (Main) |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhat is the difference between the Square D HGL36090, HDL36090, and HJL36090?
The difference is the interrupting rating at 480VAC. The HGL36090 has a G rating of 35kAIC, the HDL36090 has a D rating of 18kAIC, and the HJL36090 has a J rating of 65kAIC. They share the same physical dimensions and PowerPacT H-frame footprint.
What wire sizes and materials are accepted by the lugs on the HGL36090?
The HGL36090 comes standard with AL150HD mechanical lugs, which accept 14 AWG to 3/0 AWG copper or aluminum wire.
Can the HGL36090 be used in DC applications?
Yes, this thermal-magnetic breaker is rated for DC systems. It provides an interrupting rating of 20kAIC at both 250VDC and 500VDC.
What does Unit Mount mean for the HGL36090?
Unit mount means the breaker is designed to be bolted directly to a backpan or mounting plate, connecting to the circuit via wire lugs on both the line and load sides. It is not designed for I-Line or plug-on panelboard connections.
What enclosures and panelboards are compatible with the HGL36090?
This breaker is designed for use in PowerPacT H-Frame enclosures, switchboards, and industrial control panels. It can also be used as a main breaker in Square D NF and NQ panelboards.
Are the trip settings adjustable on the HGL36090?
No, the HGL36090 features a fixed thermal and fixed magnetic trip unit. It does not have adjustable dials for long-time or instantaneous trip settings.
