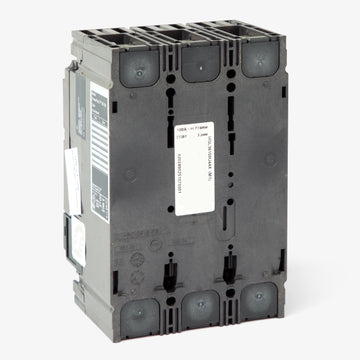

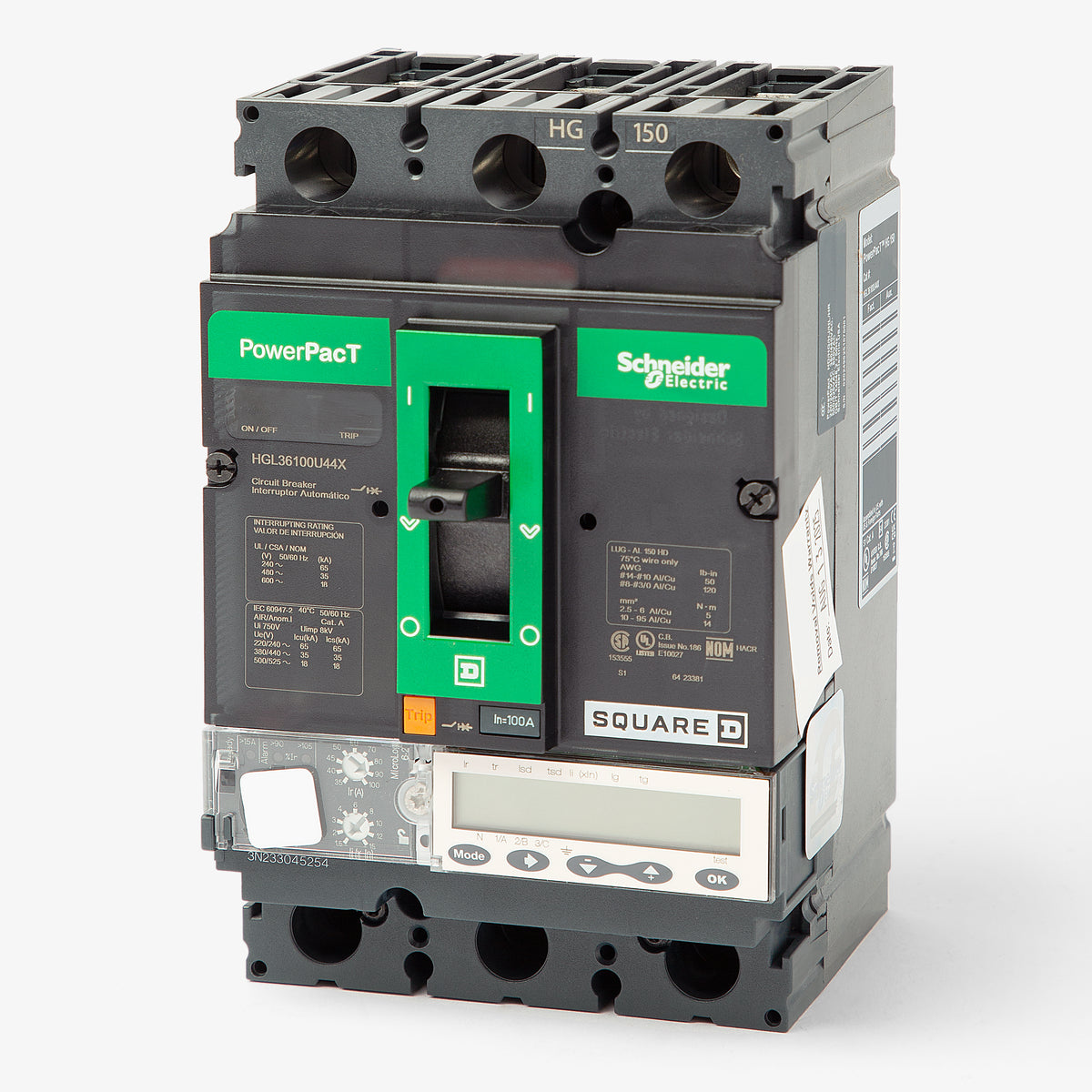

Square D HGL36100U44X Molded Case Circuit Breaker
- 100A
- 3 Pole
- Unit Mount
Square D
HGL36100U44X
Molded Case Circuit Breaker
Brand
Square D
SKU
HGL36100U44X
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HGL36100U44X - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
150A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description

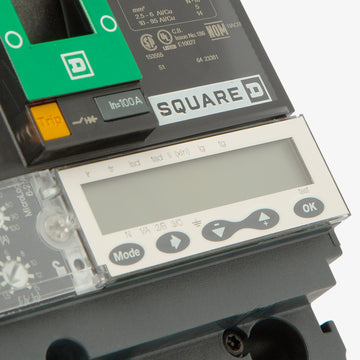

Part of the PowerPacT family, this 3-pole, 100A electronic trip circuit breaker delivers advanced system monitoring for industrial applications. It provides reliable current-limiting capabilities and true RMS sensing. Designed for unit-mount configurations, it integrates seamlessly into industrial control panels, switchboards, and H-Frame enclosures. The breaker is equipped with a Micrologic 6.2 A trip unit, offering adjustable LSIG protection and a built-in ammeter for precise diagnostics.Specifications
| Brand | Square D |
|---|---|
| Part Number | HGL36100U44X |
| Series | HGL |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC |
| Amperage Range | 40-100A |
|---|
| Frame Type | HGL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards, PowerPacT H-Frame Enclosures |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment, Communication Module |
|---|---|
| Accessories | Micrologic 6.2 A Trip Unit |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL, UKCA |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Visual Trip Indicator, True RMS Sensing |
Product FAQs
5 answersWhat does the U44X suffix mean in the HGL36100U44X catalog number?
The U44X suffix indicates that the breaker is equipped with a Micrologic 6.2 A electronic trip unit. This specific trip unit provides adjustable LSIG (Long-Time, Short-Time, Instantaneous, and Ground-Fault) protection and includes an integrated ammeter for current monitoring.
Is the HGL36100U44X compatible with Square D I-Line panelboards?
No. This is a unit-mount, feed-thru circuit breaker designed for lug-to-lug connections. It does not have the plug-on jaw connections required for I-Line panelboards. It is intended for industrial control panels, switchboards, and standard PowerPacT H-Frame enclosures.

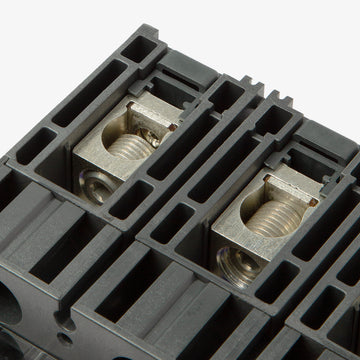

What are the wire size requirements for the lugs on this breaker?
The factory lugs on the HGL36100U44X accept wire sizes from 14 AWG to 3/0 AWG. The terminals are rated for both aluminum and copper conductors.
Does the HGL36100U44X provide equipment ground-fault protection?
Yes. The included Micrologic 6.2 A trip unit features an adjustable ground-fault trip function (the G in LSIG) to protect electrical equipment from damaging ground-fault currents.
Can the trip settings on the HGL36100U44X be adjusted in the field?
Yes. The Micrologic electronic trip unit allows electricians to adjust the Long-Time, Short-Time, Instantaneous, and Ground-Fault pickup and delay settings to coordinate with specific system requirements.
