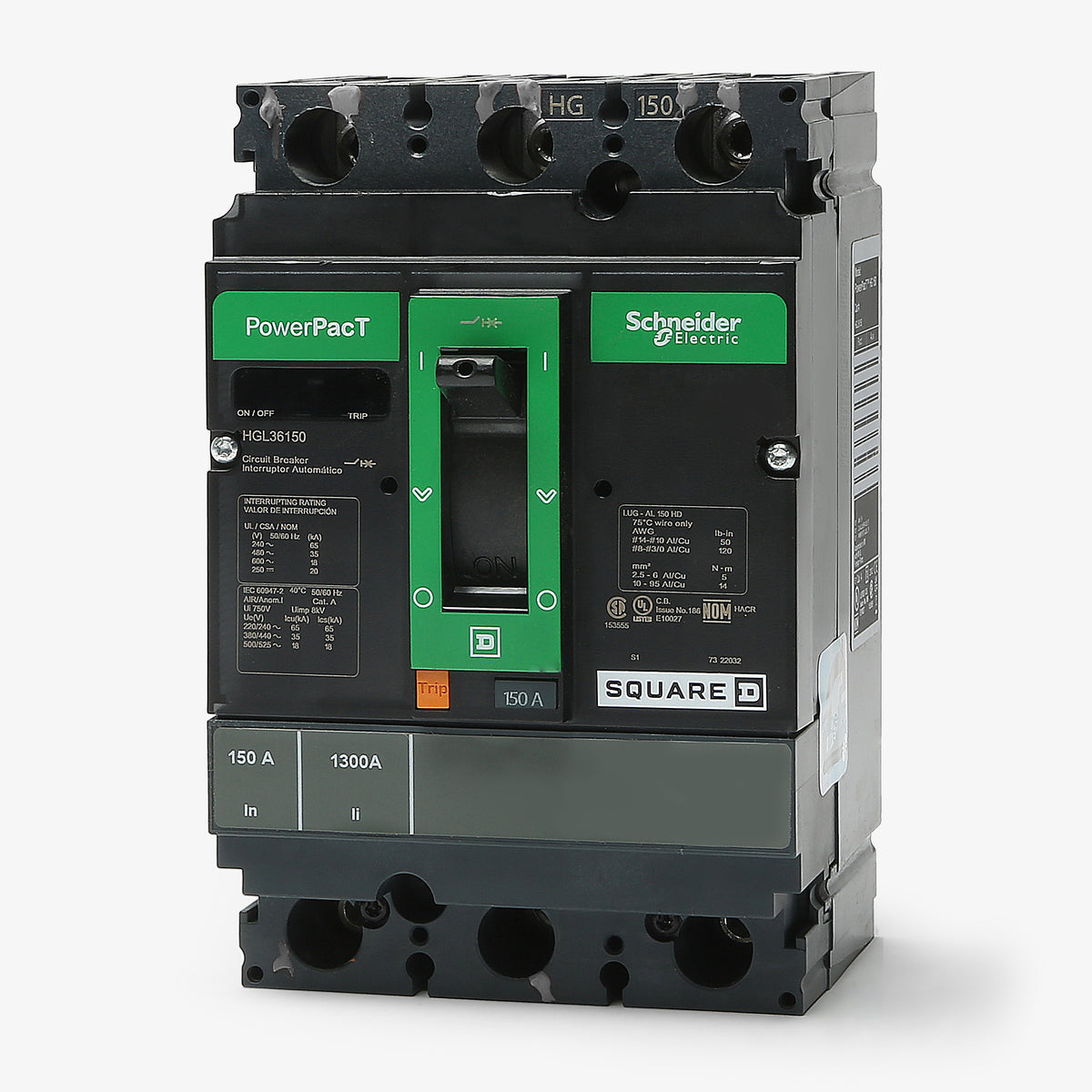

Square D HGL36150 Molded Case Circuit Breaker
- 150A
- 3 Pole
- Unit Mount
Square D
HGL36150
Molded Case Circuit Breaker
Brand
Square D
SKU
HGL36150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HGL36150 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D HGL36150 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | HGL36150 |
| Series | HGL |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | HGL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards, PowerPacT H-Frame Enclosures |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, Terminal Shields |
|---|---|
| Accessories | None (Factory Included) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, Visual Trip Indicator, Quick-Make/Quick-Break, Trip-Free Mechanism |
Quantity
Square D HGL36150 - 150A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | HGL36150-R |
| Series | HGL |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | HGL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards, PowerPacT H-Frame Enclosures |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, Terminal Shields |
|---|---|
| Accessories | None (Factory Included) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, Visual Trip Indicator, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
100A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
Description
Built for industrial power distribution, the Square D HGL36150 is a 150A, 3-pole MCCB. As part of the PowerPacT H-Frame series, it offers dependable LI trip functions. Designed with a unit mount configuration, this breaker installs into switchboards and control panels. It is an ideal substitute for legacy KA36150 and KH36150 breakers. With an interrupting capacity of 35kA at 480VAC, it handles high fault currents safely and features a Visi-Trip indicator for quick fault spotting.Specifications
| Brand | Square D |
|---|---|
| Part Number | HGL36150 |
| Series | HGL |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | HGL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards, PowerPacT H-Frame Enclosures |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, Terminal Shields |
|---|---|
| Accessories | None (Factory Included) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, Visual Trip Indicator, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
8 answersWhat is the difference between the Square D HGL36150 and the HGA36150?
The HGL36150 is a unit-mount circuit breaker that features line and load lugs for traditional panel and enclosure mounting. The HGA36150 has identical electrical specifications but comes with an I-Line plug-on connection on the line side for use in Square D I-Line panelboards.
What does the "G" represent in the HGL36150 part number?
The "G" indicates the breaking capacity, or interrupting rating, of the circuit breaker. For Square D PowerPacT H-Frame breakers, the G-rating provides a maximum interrupting capacity of 65kA at 240VAC and 35kA at 480VAC.
What wire size does the HGL36150 accept?
This breaker includes factory-installed AL150HD lugs on both the line and load sides. These standard lugs accept 14 AWG through 3/0 AWG aluminum or copper conductors.
Can the HGL36150 be reverse fed?
Yes. Because this is a standard thermal-magnetic PowerPacT H-Frame circuit breaker without a communications module, it is suitable for reverse connection. You can safely land the incoming line power on either the top or bottom lugs.
Are the trip points adjustable on this breaker?
No. The HGL36150 is equipped with a standard thermal-magnetic trip unit featuring fixed long-time (thermal) and fixed instantaneous (magnetic) settings. For adjustable trip settings, you would need to specify a PowerPacT breaker with a MicroLogic electronic trip unit.
Can I install a shunt trip or auxiliary contact in the HGL36150?
Yes. Square D PowerPacT H-Frame breakers feature a standard accessory compartment behind the front cover. You can field-install internal electrical accessories, including shunt trips (MX), undervoltage releases (MN), auxiliary switches (OF), and alarm switches (SD).
What is the maximum amp capacity for the PowerPacT H-Frame series?
The PowerPacT H-Frame series supports a maximum continuous current of 150 amps. For higher amperages up to 250 amps, you would need to step up to the physically larger PowerPacT J-Frame.
Can I mount the HGL36150 in a standard Square D load center?
No. The PowerPacT H-Frame is a commercial and industrial molded case circuit breaker designed for use in industrial control panels, switchboards, and specific PowerPacT H-Frame enclosures. It is not compatible with standard QO or Homeline residential load centers.
