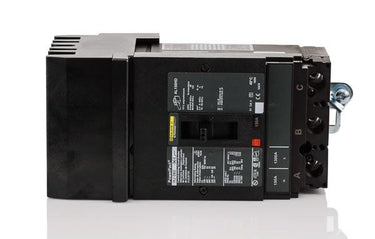

Square D HJA36150 Molded Case Circuit Breaker
- 150A
- 3 Pole
- I-Line
Square D
HJA36150
Molded Case Circuit Breaker
Brand
Square D
SKU
HJA36150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HJA36150 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D HJA36150 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | HJA36150 |
| Series | HJA |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HJA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 14 AWG-3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed, Non-Interchangeable Trip |
Quantity
Square D HJA36150 - 150A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | HJA36150-R |
| Series | HJA |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HJA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 14 AWG-3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed, Non-Interchangeable Trip |
Similar Items
3 Pole Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
110A 3 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty industrial environments, this 150A PowerPacT H-Frame circuit breaker offers robust thermal-magnetic protection. It features a non-interchangeable trip unit with long-time and instantaneous functions. The breaker mounts into Square D I-Line panelboards and switchboards. It acts as a replacement for legacy KC36150, KH36150, and KA36150 models, ensuring seamless integration into existing systems. Delivering 65kAIC at 480VAC, it includes a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | HJA36150 |
| Series | HJA |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HJA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 14 AWG-3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersHow much mounting space does this 3-pole breaker occupy in an I-Line panelboard?
The HJA36150 requires 4.5 inches of vertical bus space, as each pole takes up 1.5 inches of mounting space.
Can the HJA36150 replace legacy F-frame I-Line breakers?
Yes. The PowerPacT H-frame is designed as the direct plug-on replacement for older Square D F-frame I-Line circuit breakers, such as the FA, FH, and FC series, since they share the exact same 4.5-inch mounting space.
What does the "J" in the HJA36150 catalog number signify?
In the Square D PowerPacT nomenclature, the "J" denotes the interrupting capacity tier. For this frame size, a J-rating signifies a high interrupting capacity of 100kA at 240VAC and 65kA at 480VAC.
Are the thermal and magnetic trip settings adjustable on the HJA36150?
No. This model is equipped with a standard thermal-magnetic trip unit featuring fixed long-time and fixed instantaneous trip settings.
Does this breaker provide ground fault protection?
No. The LI trip code indicates it provides standard long-time and instantaneous protection only. If ground fault protection is required, a breaker with an LSIG or Micrologic trip unit is necessary.
Do both the line and load sides of this breaker use wire lugs?
No. The "A" in the HJA36150 catalog number indicates an I-Line connection on the line side. It utilizes integrated plug-on jaws that connect directly to the panelboard bus, while the load side features standard mechanical lugs that accept 14 AWG to 3/0 AWG wire.
