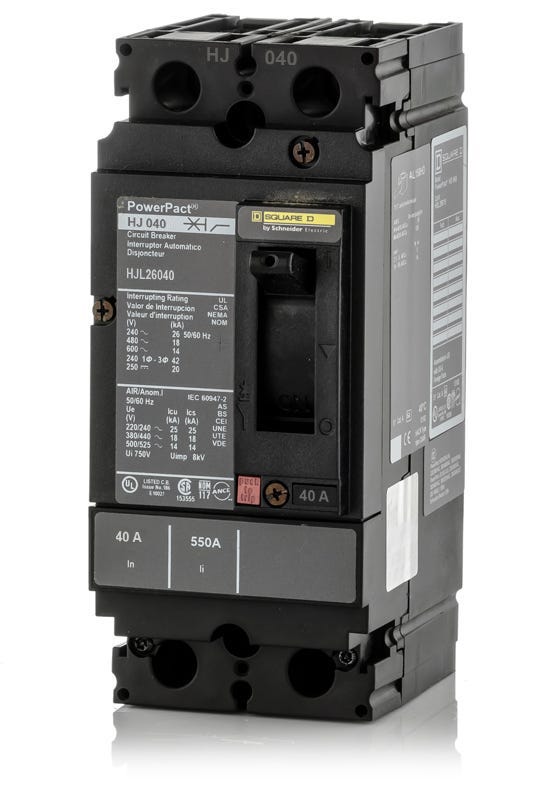

Square D HJL26040 Molded Case Circuit Breaker
- 40A
- 2 Pole
- Unit Mount
Square D
HJL26040
Molded Case Circuit Breaker
Brand
Square D
SKU
HJL26040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HJL26040 - 40A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
30A 2 Pole Molded Case Circuit Breaker
60A 2 Pole Molded Case Circuit Breaker
3 Pole Circuit Breaker
Description
Operating within the PowerPacT H-Frame family, the Square D HJL26040 is a 40A, 2-pole molded case circuit breaker for industrial applications. This unit-mount breaker is compatible with Square D control panels, switchboards, and NQ or NF panelboards. It replaces legacy FAL26040 F-Frame breakers, though retrofitting may be required. Equipped with a fixed thermal-magnetic trip unit (LI), it is rated for 65kAIC at 480VAC and features a Visi-Trip indicator for enhanced safety.Specifications
| Brand | Square D |
|---|---|
| Part Number | HJL26040 |
| Series | HJL |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | H |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Industrial Control Panels, Switchboards, Enclosures, NQ Panelboards (as Main), NF Panelboards (as Main) |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment, Lug Kits, Terminal Shields |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, HACR, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, Visual Trip Indicator, Mercury Free, PVC Free |
Product FAQs
6 answersWhat is required to use the HJL26040 as a main breaker in an NQ panelboard?
You will need a main breaker adapter kit, such as the NQMB2HJ, to install this H-Frame breaker as a main in an NQ series panelboard.
Does the HJL26040 replace older Square D circuit breakers?
Yes, this PowerPacT H-Frame breaker is the direct replacement for legacy FAL26040 F-Frame breakers. Note that retrofitting or mounting modifications may be required when upgrading.
What is the recommended lug torque for the HJL26040?
For the standard AL150HD lugs, the recommended tightening torque is 44 lb-in for 14-10 AWG wire and 124 lb-in for 8-3/0 AWG conductors.
Can the HJL26040 be reverse fed?
Yes, PowerPacT H-Frame thermal-magnetic breakers are suitable for reverse-feed applications, allowing line connections on either the top or bottom terminals.
Can this breaker be mounted on a DIN rail?
Yes, it can be DIN rail mounted by using the Square D S29305 mounting adapter kit.
What is the difference between the HJL26040 and the HDL26040 or HGL26040?
The difference lies in the interrupting rating. The HJL has a 100kA rating at 240VAC, while the HDL is rated at 25kA and the HGL is rated at 65kA at the same voltage.
