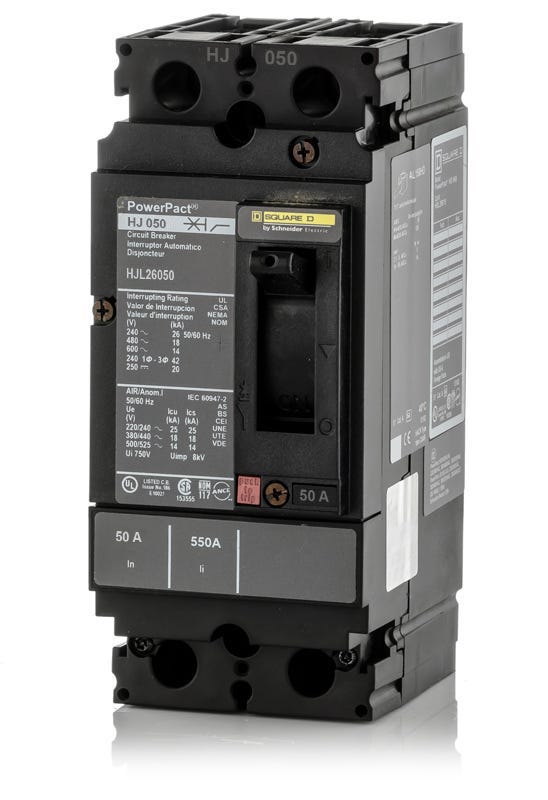

Square D HJL26050 Molded Case Circuit Breaker
- 50A
- 2 Pole
- Unit Mount
Square D
HJL26050
Molded Case Circuit Breaker
Brand
Square D
SKU
HJL26050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HJL26050 - 50A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
40A 2 Pole Molded Case Circuit Breaker
30A 2 Pole Molded Case Circuit Breaker
3 Pole Circuit Breaker
Description
Engineered for commercial and industrial applications, the Square D HJL26050 is a 50A, 2-pole molded case circuit breaker from the PowerPacT H-Frame family. This unit mount MCCB installs into Square D NQ and NF panelboards, switchboards, and control panels. It also serves as an upgrade for discontinued FH26050 legacy F-Frame breakers. Rated for 65kAIC at 480VAC, this current-limiting breaker features a Visi-Trip indicator and provides reliable thermal magnetic (LI) protection.Specifications
| Brand | Square D |
|---|---|
| Part Number | HJL26050 |
| Series | HJL |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | H |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NQ Panelboards, Square D NF Panelboards, Square D Switchboards, Industrial Control Panels |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Mercury Free, PVC Free, Visual Trip Indicator, Interchangeable Trip Unit |
Product FAQs
5 answersWhat is the difference between the HJL26050 and the HDL26050 or HGL26050?
The difference is the interrupting capacity. The HJL26050 has a 100kA rating at 240VAC, while the HDL is rated for 25kA and the HGL is rated for 65kA at the same voltage. All three share the same physical dimensions and unit-mount configuration.
Can the HJL26050 circuit breaker be reverse fed?
Yes. Standard unit-mount PowerPacT H-frame circuit breakers with thermal magnetic trip units are suitable for reverse-fed applications.
What is the required lug torque for the HJL26050?
For the standard AL150HD lugs, torque 14 to 10 AWG wire to 50 lb-in, and 8 to 3/0 AWG wire to 120 lb-in.
Is this breaker 100 percent rated for continuous current?
No, the standard HJL26050 is 80 percent rated. A 100 percent rated version would require a C suffix in the catalog number, such as HJL26050C.
What panels accept the HJL26050 breaker?
This unit-mount breaker is designed for Square D NQ and NF panelboards, switchboards, and industrial control panels. It requires a backpan or DIN rail mounting hardware and will not plug into an I-Line panelboard.
