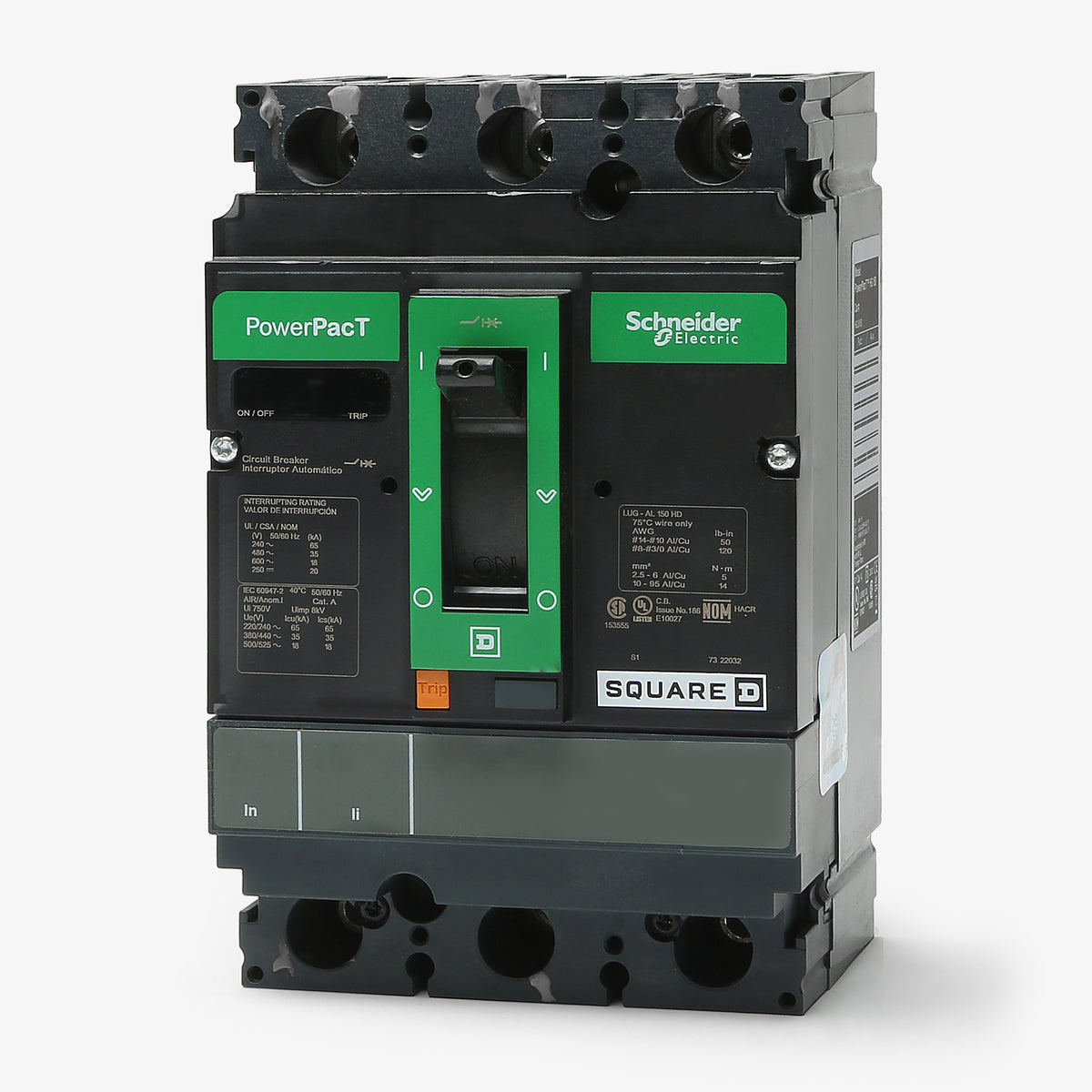

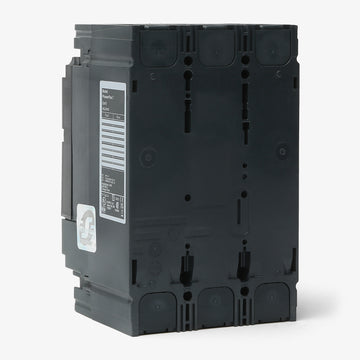

Square D HJL36040 Molded Case Circuit Breaker
- 40A
- 3 Pole
- Unit Mount
Square D
HJL36040
Molded Case Circuit Breaker
Brand
Square D
SKU
HJL36040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HJL36040 - 40A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D HJL36040 - 40A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | HJL36040 |
| Series | HJL |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HJL |
|---|---|

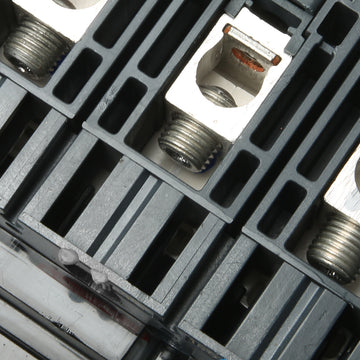

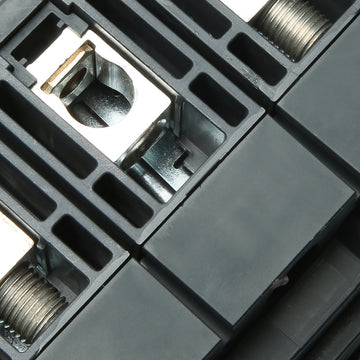

| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards, Motor Control Centers, PowerPacT H-Frame Enclosures |
| Wire Gauge | 14 AWG - 3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Visual Trip Indicator, Mercury Free, PVC Free, RoHS Compliant |
Quantity
Square D HJL36040 - 40A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | HJL36040-R |
| Series | HJL |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards, Motor Control Centers, PowerPacT H-Frame Enclosures |
| Wire Gauge | 14 AWG - 3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Visual Trip Indicator, Mercury Free, PVC Free, RoHS Compliant |
Similar Items
50A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Description
Part of the robust PowerPacT series, this 40A three-pole MCCB provides essential thermal-magnetic protection for industrial facilities. The H-Frame architecture ensures consistent performance across demanding electrical networks. Designed with a unit-mount configuration, it integrates into standard control panels and switchboards. Facilities upgrading from legacy systems can use this to replace older FHL36040 units with a retrofit kit. It features a 65kA interrupting rating at 480VAC.Specifications
| Brand | Square D |
|---|---|
| Part Number | HJL36040 |
| Series | HJL |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards, Motor Control Centers, PowerPacT H-Frame Enclosures |
| Wire Gauge | 14 AWG - 3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Visual Trip Indicator, Mercury Free, PVC Free, RoHS Compliant |
Product FAQs
4 answersWhat is the difference between the Square D HJL36040 and the HGL36040 circuit breakers?
The third letter of the catalog number designates the interrupting capacity. The HJL36040 features a J rating, providing up to 100kA at 240V and 65kA at 480V. The HGL36040 uses a G rating, which is a lower tier rated for 65kA at 240V and 35kA at 480V.
Can I install the HJL36040 in a Square D I-Line panelboard?
No. The HJL36040 features a unit mount, feed-thru design with line and load lugs intended for industrial control panels, motor control centers, and standard enclosures. For an I-Line panelboard, you need a plug-on variant such as the HJA36040.
Is the HJL36040 suitable for reverse-fed applications?
Yes. Thermal-magnetic PowerPacT H-Frame circuit breakers like the HJL36040 do not have line and load side restrictions and are suitable for reverse-fed or back-fed installations. Always ensure proper labeling per NEC requirements when back-feeding a main breaker.
What does the LI trip function on this breaker provide?
The LI code indicates a thermal-magnetic trip unit with Long-Time (L) and Instantaneous (I) protection. The Long-Time element protects against sustained overloads, while the Instantaneous element reacts to high-level short circuits. Both the thermal and magnetic trip points are fixed on the HJL36040 model.
