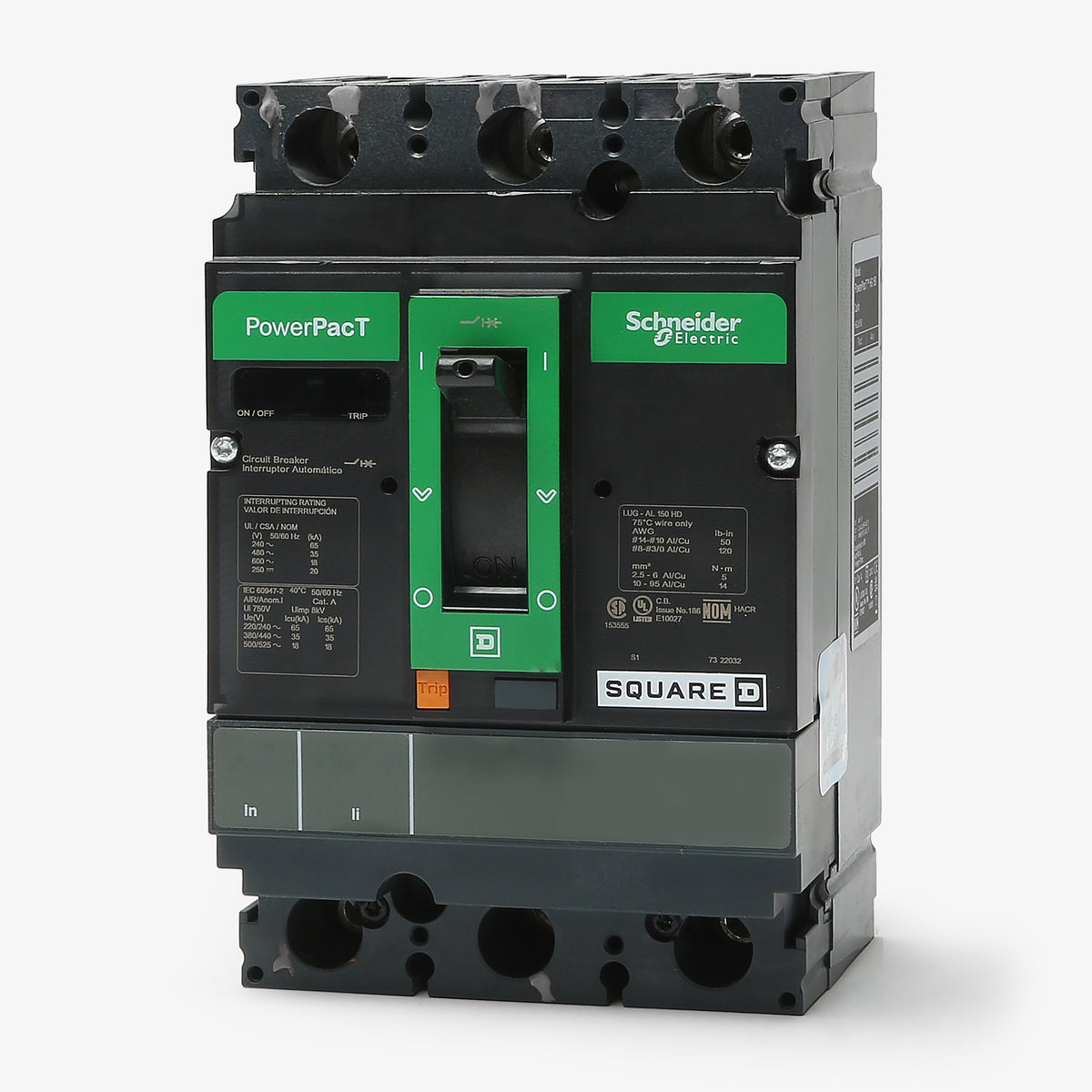

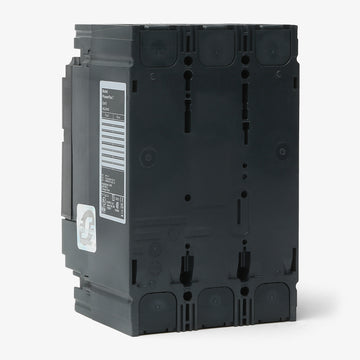

Square D HJL36030 Molded Case Circuit Breaker
- 30A
- 3 Pole
- Unit Mount
Square D
HJL36030
Molded Case Circuit Breaker
Brand
Square D
SKU
HJL36030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HJL36030 - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D HJL36030 - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | HJL36030 |
| Series | HJL |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards, Motor Control Centers, PowerPacT H-Frame Enclosures |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, HACR, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Visual Trip Indicator, Mercury Free, PVC Free, RoHS Compliant |
Quantity
Square D HJL36030 - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | HJL36030-R |
| Series | HJL |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards, Motor Control Centers, PowerPacT H-Frame Enclosures |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, HACR, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Visual Trip Indicator, Mercury Free, PVC Free, RoHS Compliant |
Similar Items
25A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
Description
Designed for reliable power management, the Square D HJL36030 is a 30A, 3-pole molded case circuit breaker from the PowerPacT H-Frame series. It utilizes fixed thermal-magnetic trip technology to provide essential long-time and instantaneous (LI) protection. Equipped with line and load lugs, this unit mount breaker fits into industrial control panels and switchboards. It is an ideal upgrade path for replacing legacy FHL36030 breakers via retrofit.Specifications
| Brand | Square D |
|---|---|
| Part Number | HJL36030 |
| Series | HJL |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards, Motor Control Centers, PowerPacT H-Frame Enclosures |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, HACR, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Visual Trip Indicator, Mercury Free, PVC Free, RoHS Compliant |
Product FAQs
5 answersWhat do the letters HJL signify in the HJL36030 catalog number?
The H denotes the PowerPacT H-Frame family. The J indicates the high interrupting rating tier. The L signifies it is a unit-mount breaker equipped with feed-thru mechanical lugs on both the line and load sides.
Can I install the HJL36030 directly into a Square D I-Line panelboard?
No, the HJL36030 is a unit-mount circuit breaker. For an I-Line panelboard installation, you must use the plug-on variant, which is catalog number HJA36030.
Is the HJL36030 circuit breaker suitable for reverse-fed applications?
Yes. Because this model utilizes a standard thermal-magnetic trip unit, it is approved for reverse-fed installations in switchboards and control panels.

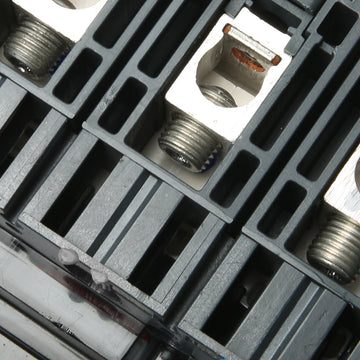

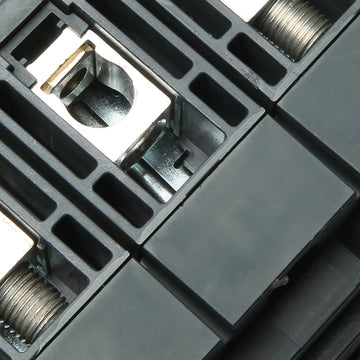

What replacement lug kit is compatible with the HJL36030?
The HJL36030 uses the AL150HD mechanical lug kit. These are the factory-standard lugs for 15A to 150A PowerPacT H-Frame breakers and accept 14 AWG to 3/0 AWG aluminum or copper conductors.
Are the overcurrent trip points adjustable on the HJL36030?
No, this model is built with fixed thermal and fixed magnetic trip elements. If your application requires adjustable settings, you must specify a breaker equipped with a Micrologic electronic trip unit.
