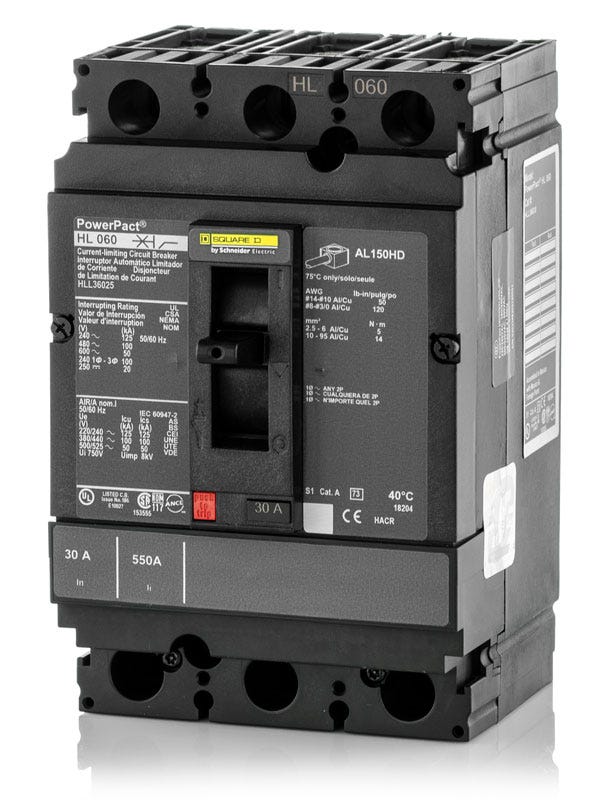

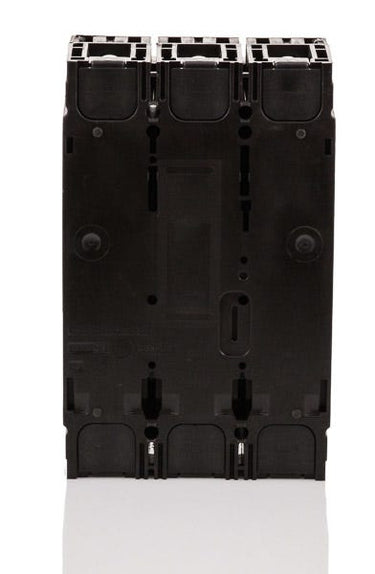

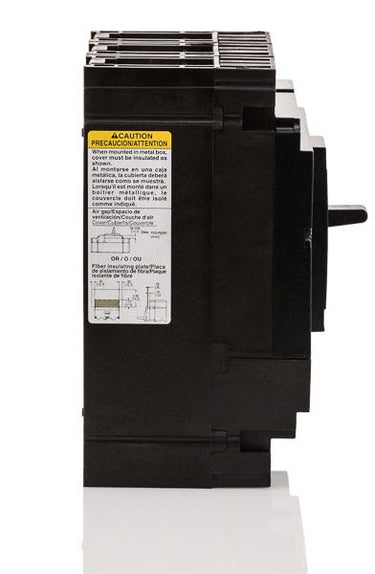

Square D HLL36025 Molded Case Circuit Breaker
- 25A
- 3 Pole
- Unit Mount
Square D
HLL36025
Molded Case Circuit Breaker
Brand
Square D
SKU
HLL36025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

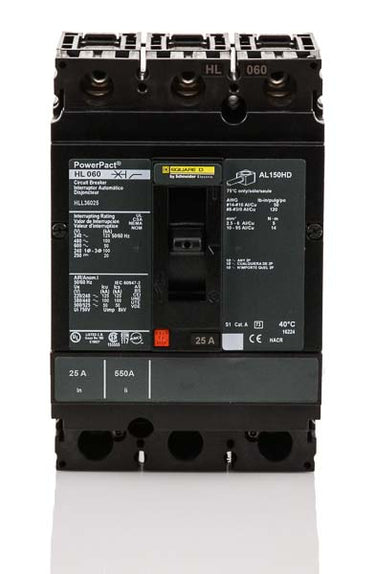

Square D HLL36025 - 25A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D HLL36025 - 25A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | HLL36025 |
| Series | HLL |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 100kA @ 480VAC, 50kA @ 600VAC, 20kA @ 250VDC, 50kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Control Panels, Switchboards, Industrial Enclosures |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL, UKCA |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
Square D HLL36025 - 25A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | HLL36025 |
| Series | HLL |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 100kA @ 480VAC, 50kA @ 600VAC, 20kA @ 250VDC, 50kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Control Panels, Switchboards, Industrial Enclosures |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL, UKCA |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
20A 3 Pole Molded Case Circuit Breaker
35A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
Description
The HLL36025 is a 3-pole, 25A molded case circuit breaker from Square D's PowerPacT H-Frame family. It provides reliable overcurrent protection for commercial and industrial electrical systems. This unit-mount breaker installs into control panels, switchboards, and enclosures. It comes equipped with line and load lugs, supporting 14 to 3/0 AWG wire for flexible integration.Specifications
| Brand | Square D |
|---|---|
| Part Number | HLL36025 |
| Series | HLL |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 100kA @ 480VAC, 50kA @ 600VAC, 20kA @ 250VDC, 50kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Control Panels, Switchboards, Industrial Enclosures |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL, UKCA |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
8 answersWhat size wire does the HLL36025 circuit breaker accept?
The standard lugs on this breaker accept 14 AWG to 3/0 AWG aluminum or copper conductors.
What is the difference between the HLL36025 and the HLA36025?
The HLL36025 is a unit-mount circuit breaker with lugs on both the line and load sides. The HLA36025 is the I-Line plug-on version designed specifically for Square D I-Line panelboards and switchboards.
Can the HLL36025 be used in DC electrical systems?
Yes, this breaker is rated for use in DC applications up to 250VDC with an interrupting capacity of 20kA, and up to 500VDC with an interrupting capacity of 50kA.
Is the HLL36025 suitable for reverse feeding?
Yes, PowerPacT H-Frame thermal magnetic circuit breakers like the HLL36025 feature a factory sealed trip unit and are suitable for reverse connection.
Is the HLL36025 a 100 percent rated circuit breaker?
No, standard PowerPacT H-Frame breakers like the HLL36025 are 80 percent rated. For a 100 percent rated version, you must order the HLL36025C.
How does the HLL36025 mount inside an enclosure?
It is a unit-mount breaker, meaning it is secured with screws to a backpan or mounting plate within control panels or industrial enclosures, and wired using the provided terminal lugs.
Is the HLL36025 considered a current limiting circuit breaker?
Yes, PowerPacT H-Frame breakers with the L interrupting rating are UL Listed and CSA Certified as current limiting circuit breakers.
Can I adjust the trip settings on the HLL36025?
No, this breaker features a thermal magnetic trip unit with fixed thermal and fixed magnetic settings. It provides standard long time and instantaneous protection without field adjustability.
