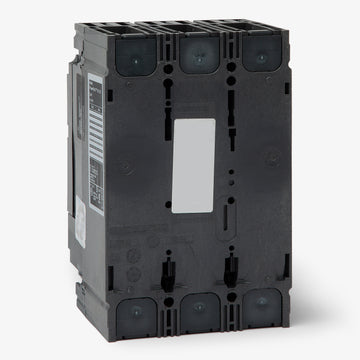

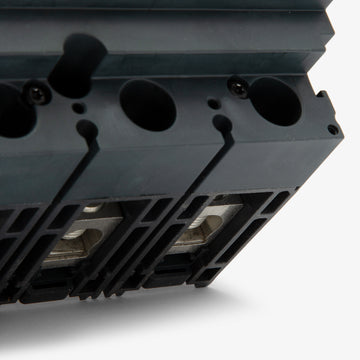

Square D HLL36040 Molded Case Circuit Breaker
- 40A
- 3 Pole
- Unit Mount
Square D
HLL36040
Molded Case Circuit Breaker
Brand
Square D
SKU
HLL36040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

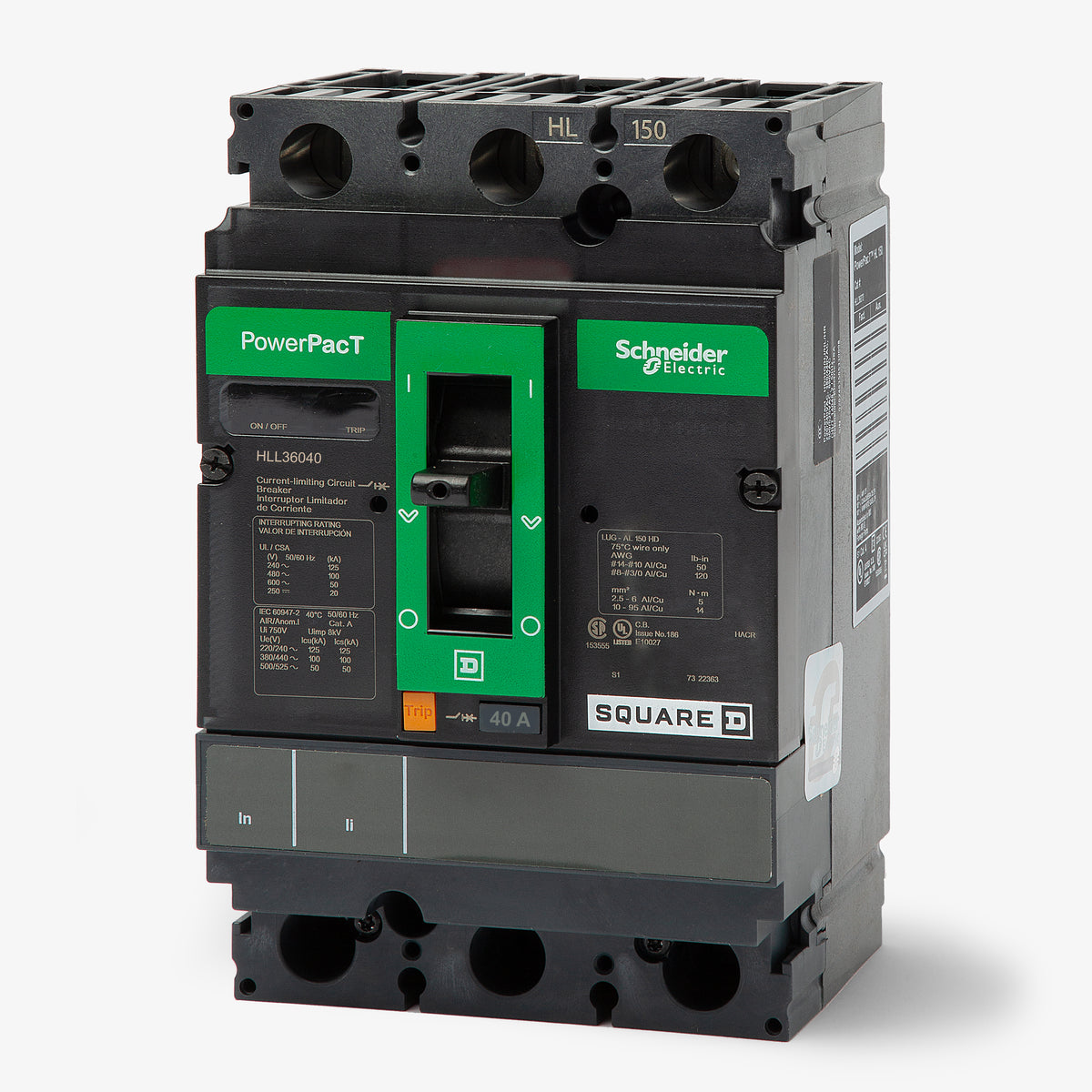

Square D HLL36040 - 40A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D HLL36040 - 40A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Series | HLL |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 100kA @ 480VAC, 50kA @ 600VAC, 20kA @ 250VDC, 50kA @ 500VDC |
| Frame Type | H |
|---|---|
| Terminal Type | Lugs |
| For Use With | Control Panels, Switchboards, Industrial Enclosures |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL, UKCA |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
Square D HLL36040 - 40A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | HLL |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 100kA @ 480VAC, 50kA @ 600VAC, 20kA @ 250VDC, 50kA @ 500VDC |
| Frame Type | H |
|---|---|
| Terminal Type | Lugs |
| For Use With | Control Panels, Switchboards, Industrial Enclosures |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL, UKCA |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
35A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
25A 3 Pole Molded Case Circuit Breaker
Description
Built for demanding commercial applications, the Square D HLL36040 is a 40A, 3-pole PowerPacT H-Frame MCCB. It delivers reliable power distribution for control panels and switchboards. The unit-mount configuration utilizes line and load lugs accepting 14-3/0 AWG wire. It is suitable for reverse-feed applications and accommodates options like undervoltage releases. Featuring fixed thermal-magnetic trip functions (LI), it provides a 100kAIC rating at 480V and HACR certification.Specifications
| Brand | Square D |
|---|---|
| Series | HLL |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 100kA @ 480VAC, 50kA @ 600VAC, 20kA @ 250VDC, 50kA @ 500VDC |
| Frame Type | H |
|---|---|
| Terminal Type | Lugs |
| For Use With | Control Panels, Switchboards, Industrial Enclosures |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL, UKCA |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhat enclosures or panels is the HLL36040 compatible with?
As a unit-mount circuit breaker, it is designed for control panels, switchboards, and industrial enclosures. It is not compatible with Square D I-Line panelboards, which require a plug-on I-Line bracket.
Can the HLL36040 be reverse fed?
Yes. Standard unit-mount PowerPacT H-frame thermal magnetic circuit breakers have factory sealed trip units and are suitable for reverse-feed applications.

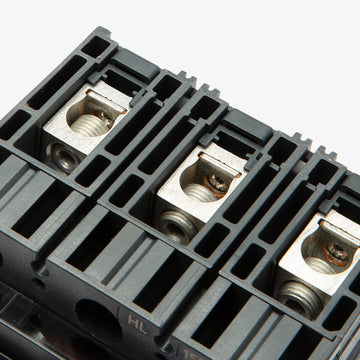

What are the lug torque specifications for this breaker?
The standard AL150HD lugs require 44.3 lb-in (5 N.m) of torque for 14 to 10 AWG wire, and 123.9 lb-in (14 N.m) for 8 to 3/0 AWG wire.
What do the letters in the HLL36040 catalog number indicate?
The 'H' denotes the PowerPacT H-frame. The first 'L' indicates the interrupting rating (100kA at 480VAC). The second 'L' specifies it is a unit-mount breaker with lugs on both the line and load sides.
Is this circuit breaker HACR rated?
Yes, the HLL36040 carries an HACR rating, making it suitable for heating, air conditioning, and refrigeration motor group applications.
What is the continuous current rating for this breaker?
It is a standard 80% rated circuit breaker, meaning the continuous load should not exceed 32 amps (80% of its 40A rating).
