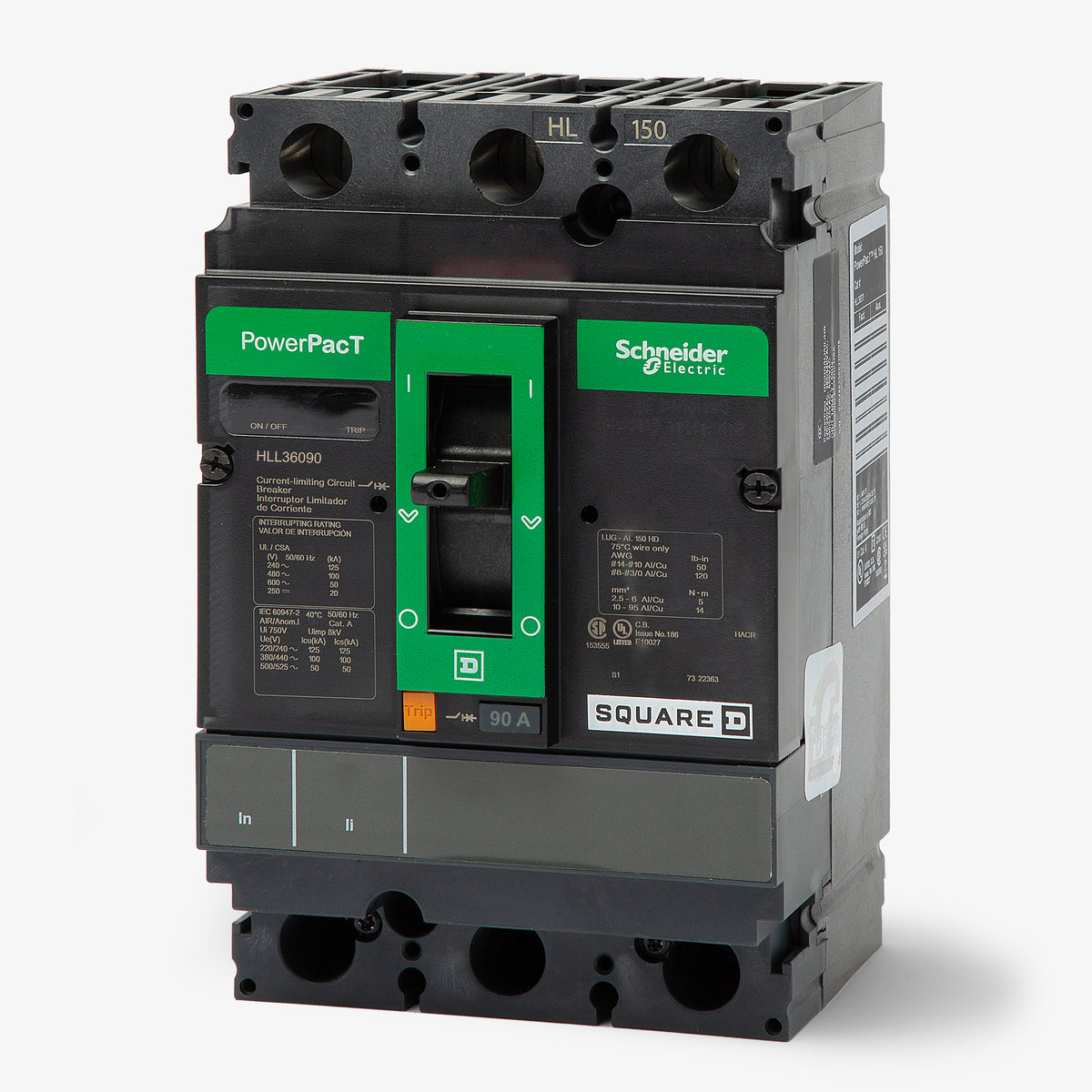

Square D HLL36090 Molded Case Circuit Breaker
- 90A
- 3 Pole
- Unit Mount
Square D
HLL36090
Molded Case Circuit Breaker
Brand
Square D
SKU
HLL36090
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HLL36090 - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D HLL36090 - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | HLL36090 |
| Series | HLL |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 100kA @ 480VAC, 50kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HLL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Control Panels, Switchboards, Industrial Enclosures |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL, UKCA |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Visual Trip Indicator, 80% Rated |
Sold out
Quantity
Square D HLL36090 - 90A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | HLL36090 |
| Series | HLL |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 100kA @ 480VAC, 50kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HLL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Control Panels, Switchboards, Industrial Enclosures |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL, UKCA |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Visual Trip Indicator, 80% Rated |
Similar Items
60A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
45A 3 Pole Molded Case Circuit Breaker
Description
Providing robust circuit protection, the Square D HLL36090 is a 90A, 3-pole MCCB engineered for commercial and industrial environments. This unit-mount breaker integrates easily into switchboards, control panels, and enclosures via standard lug terminals. It features an 80% continuous current rating and a visual trip indicator for simplified maintenance. Equipped with an adjustable magnetic trip and a 125kAIC rating at 240VAC, it delivers dependable current-limiting performance.Specifications
| Brand | Square D |
|---|---|
| Part Number | HLL36090 |
| Series | HLL |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 100kA @ 480VAC, 50kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HLL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Control Panels, Switchboards, Industrial Enclosures |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL, UKCA |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Visual Trip Indicator, 80% Rated |
Product FAQs
7 answersWhat does the "L" in the HLL36090 part number indicate?
In the Square D PowerPacT nomenclature, the second letter "L" designates the interrupting rating tier. The L-tier provides very high interrupting capacity, rated up to 125kA at 240VAC and 100kA at 480VAC.
Is the HLL36090 compatible with I-Line panelboards?
No. The third letter "L" in HLL36090 indicates it is a unit-mount breaker equipped with lugs on both the line and load sides. For an I-Line panelboard, you require the I-Line equivalent, which is the HLA36090.
Can the PowerPacT HLL36090 replace older Square D breakers?
Yes, the PowerPacT H-frame series was introduced to replace legacy Square D F-frame circuit breakers, such as the FAL or FHL models. Depending on your existing enclosure, you may need specific mounting hardware or adapter plates to complete the retrofit.
How does the adjustable magnetic trip work on this breaker?
While the thermal protection (long-time) is fixed at 90 amps, the magnetic (instantaneous) trip threshold can be adjusted using the dial on the front of the breaker. This allows electricians to fine-tune the short-circuit response to coordinate with downstream devices or motor inrush currents.

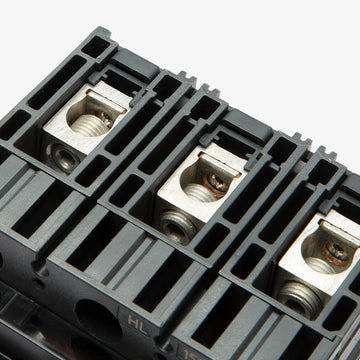

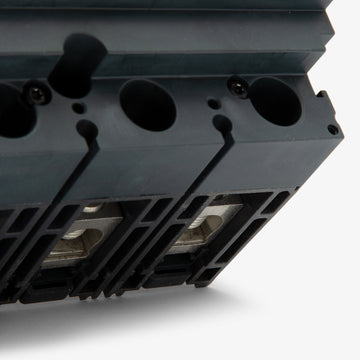

What type of wire can be used with the factory lugs?
The factory-installed lugs accept either copper or aluminum conductors ranging from 14 AWG to 3/0 AWG. Ensure you apply the correct torque as specified on the breaker faceplate to prevent thermal issues at the terminations.
Can this circuit breaker be reverse fed?
Standard PowerPacT H-frame thermal-magnetic circuit breakers without specialized communication modules or ground fault features are typically suitable for reverse feeding. Always verify the faceplate for any "Line" and "Load" markings before backfeeding the breaker.

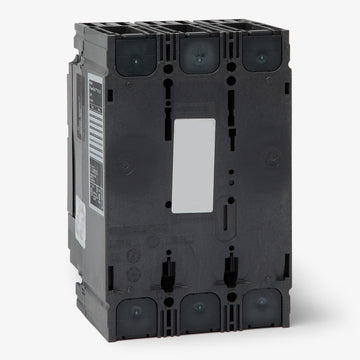

How is the HLL36090 mounted?
This is a unit-mount circuit breaker, meaning it is designed to be bolted directly to a backpan or mounting plate in control panels, switchboards, or industrial enclosures. It does not plug into a busway.
