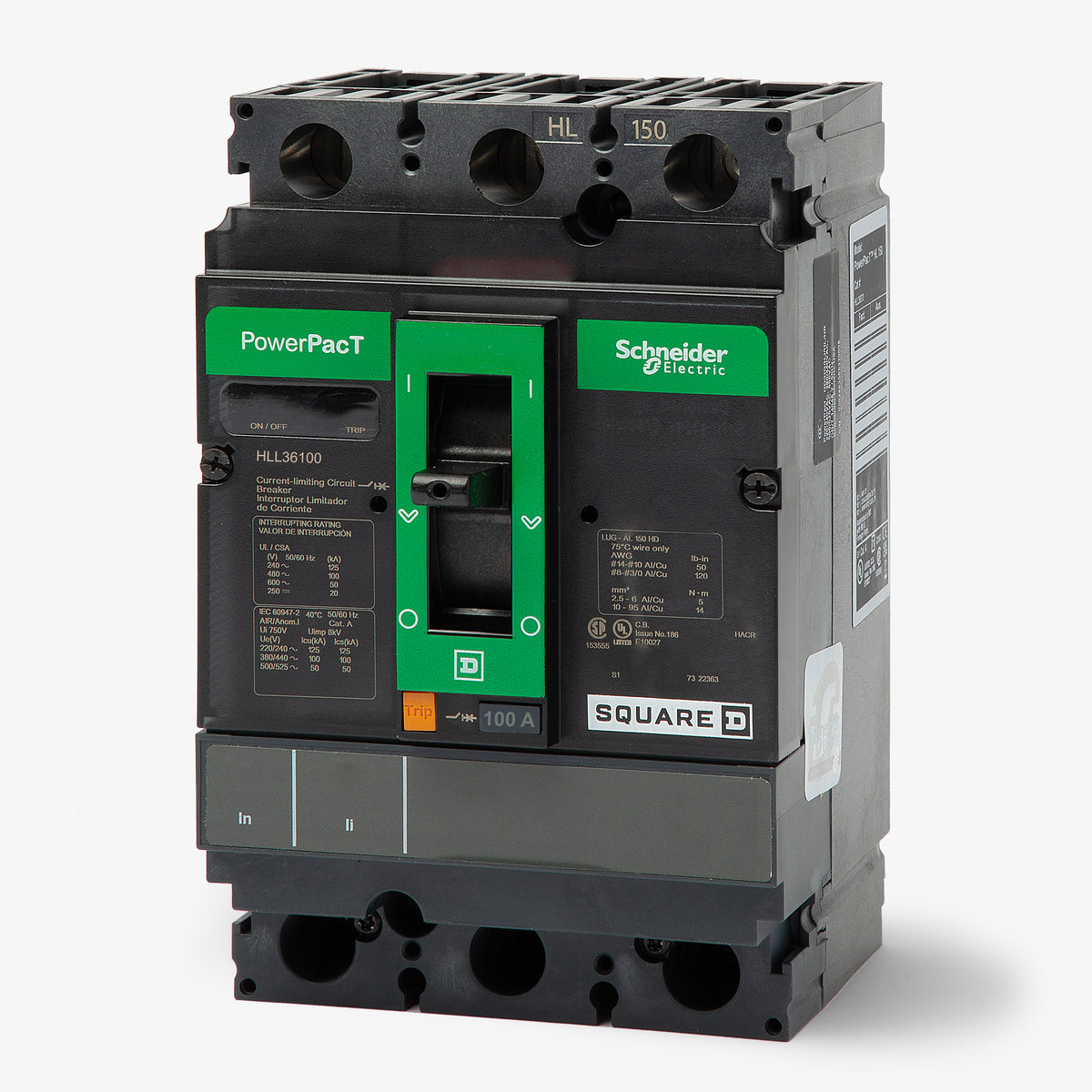

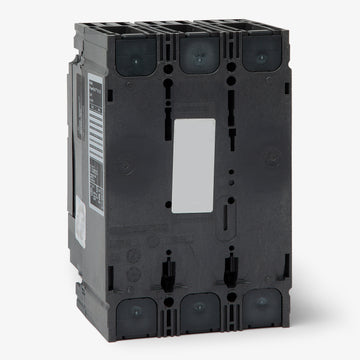

Square D HLL36100 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Unit Mount
Square D
HLL36100
Molded Case Circuit Breaker
Brand
Square D
SKU
HLL36100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HLL36100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D HLL36100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | HLL36100 |
| Series | HLL |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 100kA @ 480VAC, 50kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HLL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Control Panels, Switchboards, Enclosures |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment, Visual Trip Indicator |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL, UKCA |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism |
Quantity
Square D HLL36100 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | HLL |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 100kA @ 480VAC, 50kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HLL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Control Panels, Switchboards, Enclosures |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment, Visual Trip Indicator |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL, UKCA |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism |
Similar Items
125A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty power distribution, the Square D HLL36100 is a 100A, 3-pole PowerPacT H-Frame circuit breaker delivering reliable thermal-magnetic protection. Designed as a unit-mount solution, it integrates into control panels and serves as a modernized replacement for the discontinued FCL36100 breaker. With a robust 100 kAIC rating at 480V, it features a trip-free mechanism, reverse feed capability, and fixed trip settings for consistent performance.Specifications
| Brand | Square D |
|---|---|
| Part Number | HLL36100 |
| Series | HLL |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 100kA @ 480VAC, 50kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HLL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Control Panels, Switchboards, Enclosures |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment, Visual Trip Indicator |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL, UKCA |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism |
Product FAQs
7 answersWhat does the "L" in the HLL36100 catalog number designate?
The second letter in the catalog number indicates the short-circuit interrupting rating tier within the PowerPacT series. The L-class provides the highest interrupting capacity for the thermal-magnetic H-Frame, delivering up to 125 kA at 240VAC and 100 kA at 480VAC.
Can the HLL36100 be used to replace a discontinued FCL36100 breaker?
Yes. The PowerPacT H-Frame series replaces legacy Square D F-Frame breakers, including the 100 kA rated FCL. However, the H-Frame footprint is slightly larger (6.4 inches tall). When retrofitting, expect to drill new mounting holes in your backpan and adjust for wire bending space.
What are the instantaneous magnetic trip set points for this 100A breaker?
The HLL36100 features a fixed thermal-magnetic trip unit. The magnetic hold current is calibrated to 900 A, and the instantaneous trip current is fixed at 1700 A.

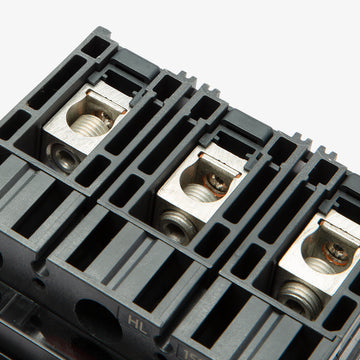

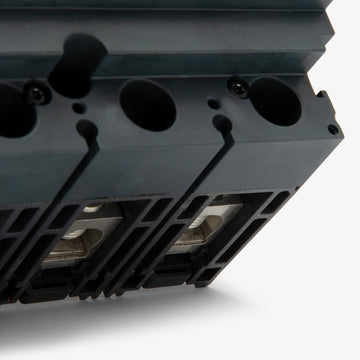

What is the terminal torque specification for the standard AL150HD lugs?
Using a 3/16-inch hex wrench, torque the wire binding screws to 44 lb-in (5 N.m) for 14 AWG to 10 AWG conductors, and 120 lb-in (14 N.m) for 8 AWG to 3/0 AWG conductors.
Can the HLL36100 be reverse fed?
Yes. Standard unit-mount PowerPacT H-Frame circuit breakers with thermal-magnetic trip units are factory-sealed and do not have line/load orientation restrictions, making them fully suitable for reverse feeding applications.
Are internal accessories field-installable on this model?
Yes. Shunt trips, undervoltage releases, and auxiliary switch modules can be field-installed. They mount directly into dedicated accessory compartments located beneath the removable front cover.
Does this breaker snap onto a panelboard bus?
No. The HLL36100 is a unit-mount (feed-thru) breaker. It must be bolted directly to a backpan or mounting plate inside a control panel, switchboard, or enclosure. It cannot be plugged into I-Line distribution panels.
