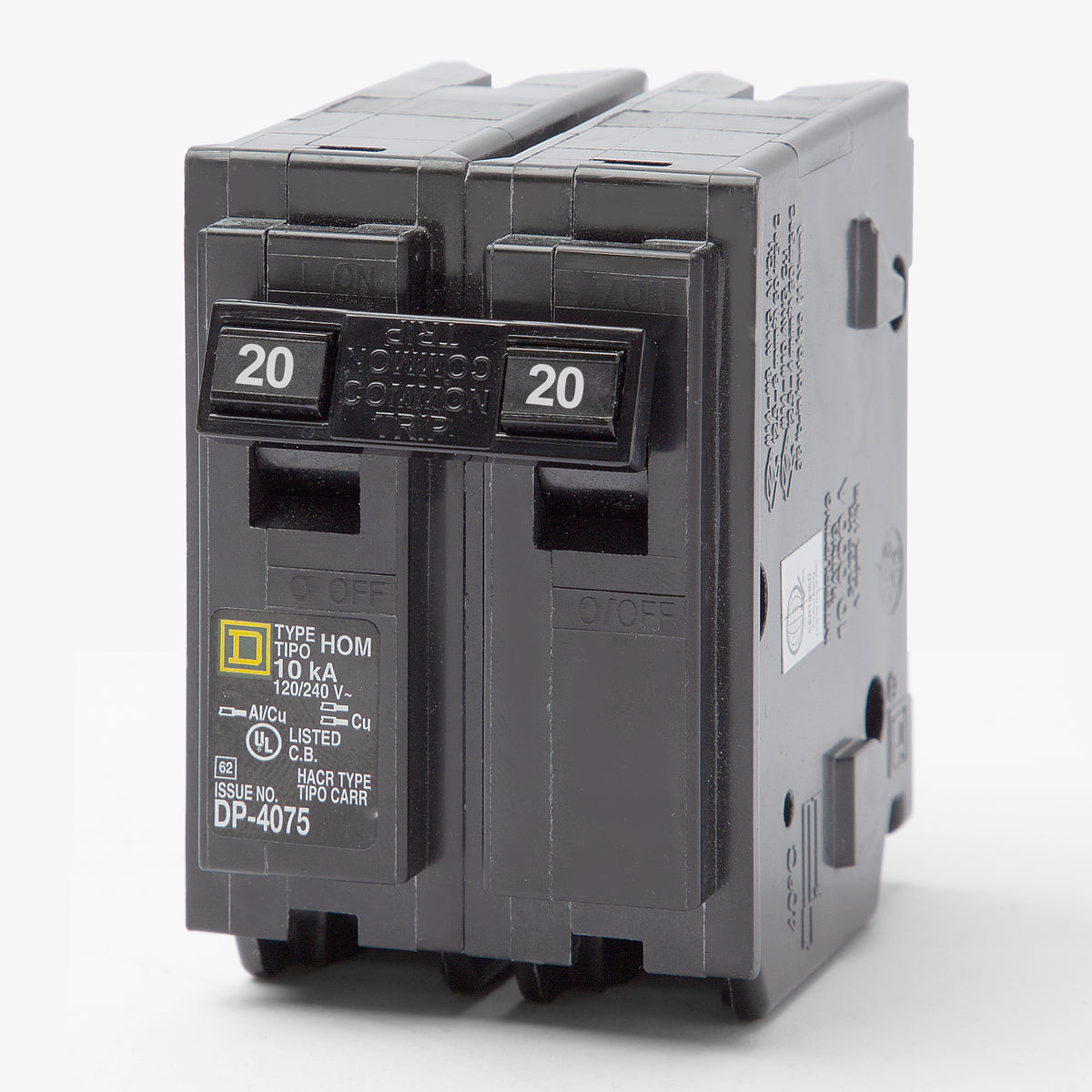

Square D HOM220 Miniature Circuit Breaker
- 20A
- 2 Pole

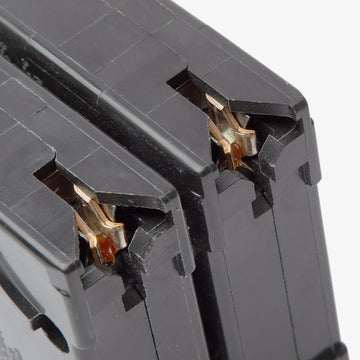

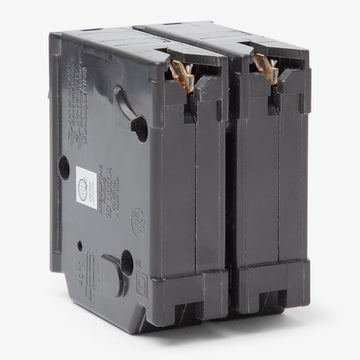

- Plug-On
Square D
HOM220
Miniature Circuit Breaker
Brand
Square D
SKU
HOM220
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HOM220 - 20A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D HOM220 - 20A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | HOM220 |
| Series | HOM |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|

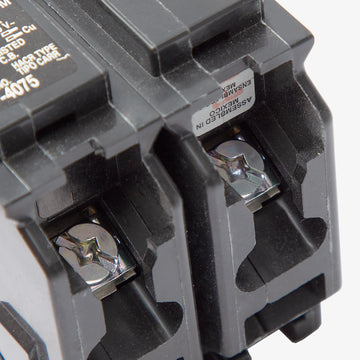

| Terminal Type | Screw/Clamp Terminal |
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 14-8 AWG (Al/Cu), (2) 14-10 AWG (Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Tie |
|---|---|
| Standards | HACR Rated, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Sold out
Quantity
Square D HOM220 - 20A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | HOM220-R |
| Series | HOM |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Screw/Clamp Terminal |
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 14-8 AWG (Al/Cu), (2) 14-10 AWG (Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Tie |
|---|---|
| Standards | HACR Rated, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Similar Items
15A 2 Pole Miniature Circuit Breaker
30A 2 Pole Miniature Circuit Breaker
35A 2 Pole Miniature Circuit Breaker
Description
Engineered for modern residential electrical systems, this 20-amp two-pole component delivers standard thermal-magnetic protection. It handles common household loads like small air conditioners or baseboard heaters. The unit mounts securely into Square D Homeline load centers without requiring extra hardware. It accepts 14-8 AWG aluminum or copper wiring via standard screw clamp terminals. With a 10kAIC rating at 120/240VAC, it meets standard residential fault requirements.Specifications
| Brand | Square D |
|---|---|
| Part Number | HOM220 |
| Series | HOM |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Screw/Clamp Terminal |
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 14-8 AWG (Al/Cu), (2) 14-10 AWG (Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Tie |
|---|---|
| Standards | HACR Rated, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
6 answersWill the HOM220 breaker fit in a Square D QO load center?
No, the HOM220 is exclusively compatible with Square D Homeline load centers [1.4.1]. QO panels require 3/4-inch QO breakers, while Homeline breakers use a 1-inch format.
What is the recommended terminal torque for the HOM220?
The manufacturer specifies a tightening torque of 35.4 lb-in (4.0 N-m) for the terminal screws.
Does the HOM220 support double lugging?
Yes, the clamp terminal on the HOM220 is rated to accept up to two copper conductors (14 to 10 AWG) per pole. Note that aluminum wiring is restricted to a single conductor (14 to 8 AWG) per pole.
Is the HOM220 circuit breaker rated for HVAC applications?
Yes, the HOM220 is HACR rated, making it suitable for protecting motor group combinations typically found in heating, air conditioning, and refrigeration equipment.
How many panel spaces does the HOM220 require?
This 2-pole breaker requires two standard 1-inch spaces, occupying 2 inches of total width in a Homeline load center.
What are the part numbers for the arc fault and ground fault versions of this breaker?
If your branch circuit requires additional protection, use catalog number HOM220CAFI for the combination arc fault (CAFI) model or HOM220GFI for the ground fault (GFCI) version.
