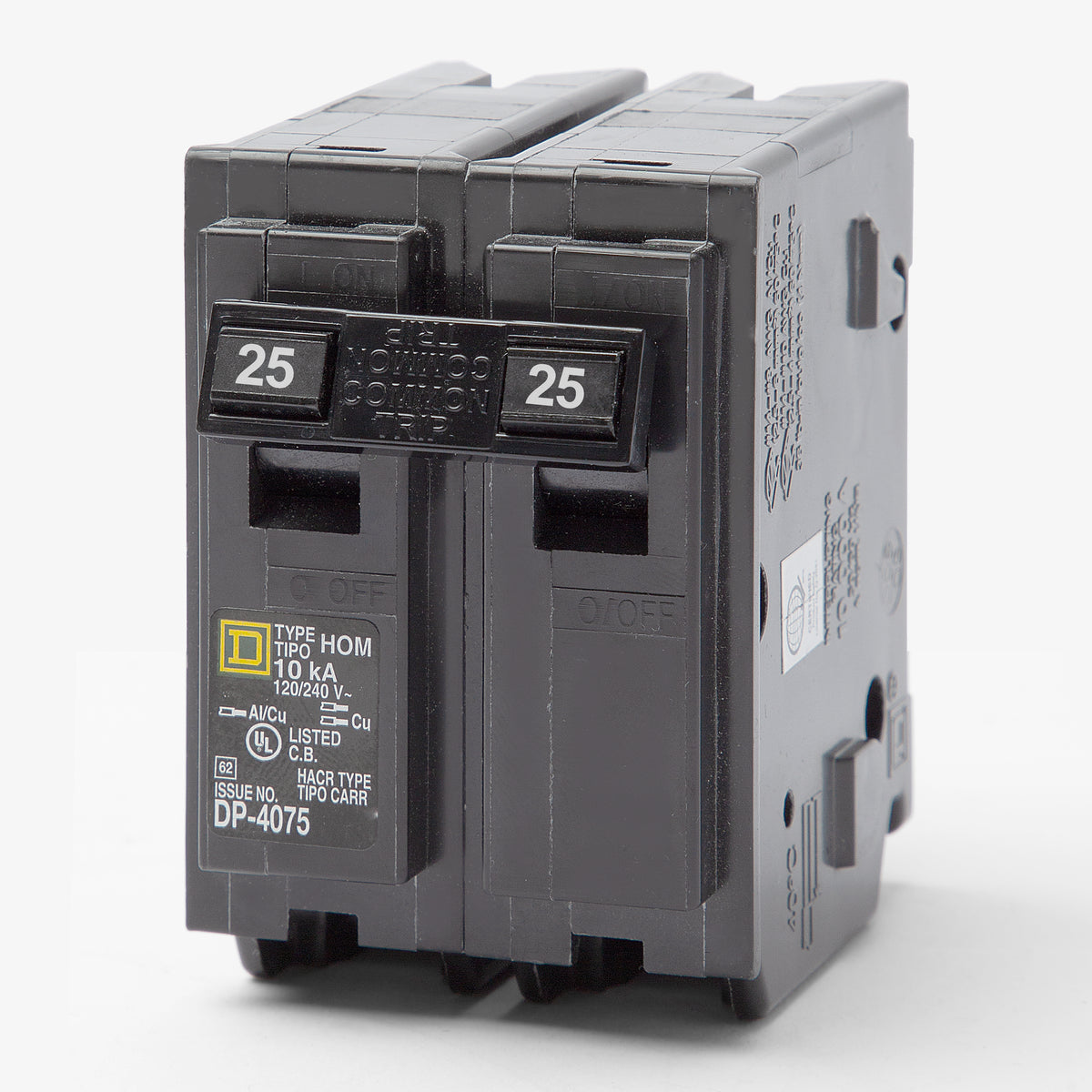

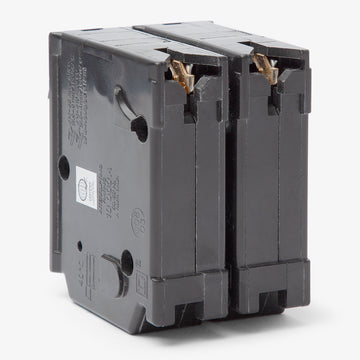

Square D HOM225 Miniature Circuit Breaker
- 25A
- 2 Pole

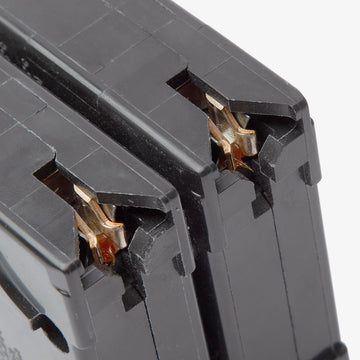

- Plug-On
Square D
HOM225
Miniature Circuit Breaker
Brand
Square D
SKU
HOM225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HOM225 - 25A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D HOM225 - 25A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | HOM225 |
| Series | HOM |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Screw/Clamp Terminal |
| For Use With | Homeline Load Centers |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Sold out
Quantity
Square D HOM225 - 25A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | HOM225-R |
| Series | HOM |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Screw/Clamp Terminal |
| For Use With | Homeline Load Centers |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Similar Items
20A 2 Pole Miniature Circuit Breaker
35A 2 Pole Miniature Circuit Breaker
15A 2 Pole Miniature Circuit Breaker
Description
Engineered for residential applications, the Square D HOM225 delivers standard thermal-magnetic protection. This two-pole miniature breaker handles 25-amp loads across 120/240V systems. It mounts into standard Homeline load centers using a simple plug-on connection. For replacement scenarios, it serves as an alternative to Eaton CL225 units. Featuring a 10kA short-circuit rating, it meets UL 489 standards. The HACR rating makes it suitable for dedicated HVAC equipment circuits.Specifications
| Brand | Square D |
|---|---|
| Part Number | HOM225 |
| Series | HOM |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Screw/Clamp Terminal |
| For Use With | Homeline Load Centers |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
7 answersCan I install the HOM225 in a Square D QO load center?
No, the HOM225 is designed exclusively for Square D Homeline load centers. It will not fit in QO panels, which require QO series breakers.
How many panel spaces does the HOM225 require?
As a 2-pole breaker, the HOM225 requires two standard 1-inch spaces in a Homeline load center.
What is the recommended tightening torque for the terminals on the HOM225?
The clamp terminals should be torqued to 35.4 lb-in for secure and compliant connections.
Can the terminals on the HOM225 accept two wires per pole?
Yes, the clamp terminals are designed to accept up to two copper wires (14 to 10 AWG) or a single copper or aluminum wire (14 to 8 AWG).
Is the HOM225 suitable for use with HVAC equipment?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires a 25A circuit.
Does the HOM225 provide GFCI or AFCI protection?
No, the HOM225 is a standard thermal-magnetic breaker. It provides overload and short-circuit protection but does not include ground-fault or arc-fault circuitry.
Can I use the HOM225 in a panel from another manufacturer?
No, the HOM225 is UL listed specifically for Square D Homeline load centers. Installing it in panels from other brands violates the UL listing and compromises safety.
