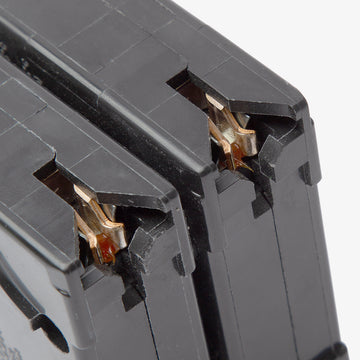

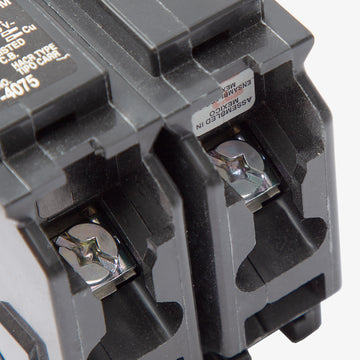

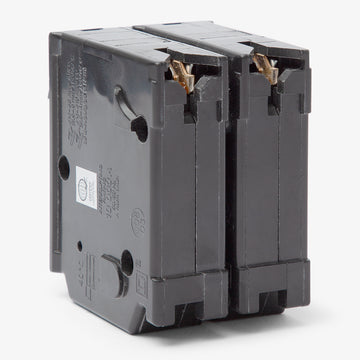

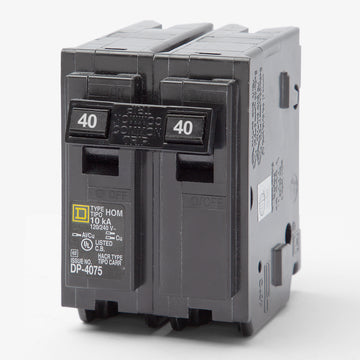

Square D HOM240 Miniature Circuit Breaker
- 40A
- 2 Pole
- Plug-On
Square D
HOM240
Miniature Circuit Breaker
Brand
Square D
SKU
HOM240
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HOM240 - 40A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D HOM240 - 40A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | HOM240 |
| Series | HOM |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Tie |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Sold out
Quantity
Square D HOM240 - 40A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | HOM240-R |
| Series | HOM |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Tie |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Similar Items
35A 2 Pole Miniature Circuit Breaker
50A 2 Pole Miniature Circuit Breaker
30A 2 Pole Miniature Circuit Breaker
Description
Built for residential power distribution, the HOM240 delivers 40 amps of thermal-magnetic protection for dedicated 240V circuits. It is commonly utilized for electric ranges, larger air conditioning condensers, or small subpanels. This two-pole unit mounts into Square D Homeline load centers and CSED devices. It occupies two standard spaces and features box lug terminals that accept 8-2 AWG copper or aluminum conductors. Carrying a 10kAIC interrupting rating, it meets standard home codes.Specifications
| Brand | Square D |
|---|---|
| Part Number | HOM240 |
| Series | HOM |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Tie |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
5 answersCan I install the HOM240 in a Square D QO load center?
No. Homeline (HOM) breakers are 1 inch per pole and are exclusively designed for Square D Homeline load centers. QO panels require QO series breakers, which are 3/4 inch per pole and utilize a different bus connection.
What is the recommended terminal tightening torque for the HOM240?
The box lugs on the HOM240 should be torqued to 40.7 lb-in (4.6 N.m) when using 8 to 2 AWG copper or aluminum wire.
Does the HOM240 require a neutral connection?
No. The standard HOM240 is a thermal-magnetic breaker and does not require a pigtail or plug-on neutral connection. Only GFCI, AFCI, or dual-function breakers require a neutral connection.
What is the difference between the HOM240 and HOM240CP?
The CP suffix indicates commercial packaging, meaning the breaker comes in a retail blister pack. The circuit breaker itself is identical to the standard HOM240.
Is the Square D HOM240 HACR rated?
Yes, the HOM240 is HACR rated, making it suitable for group motor applications in heating, air conditioning, and refrigeration equipment.
