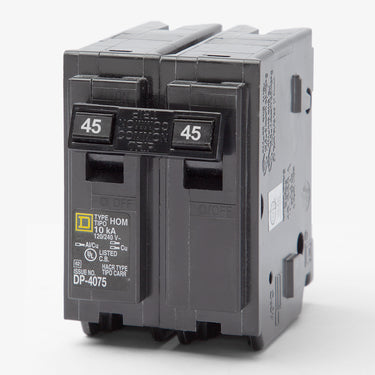

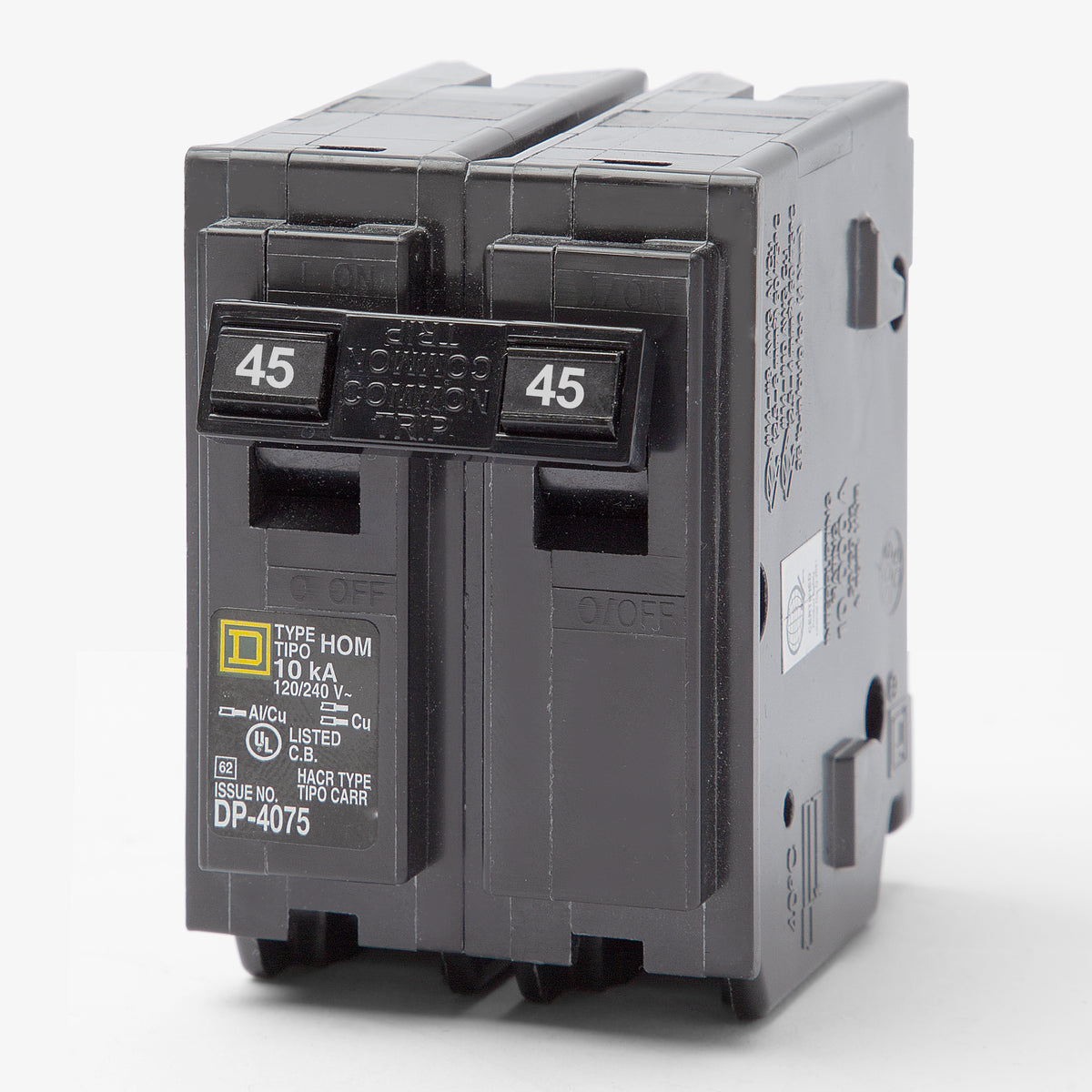

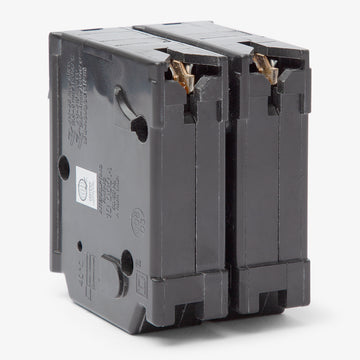

Square D HOM245 Miniature Circuit Breaker
- 45A
- 2 Pole

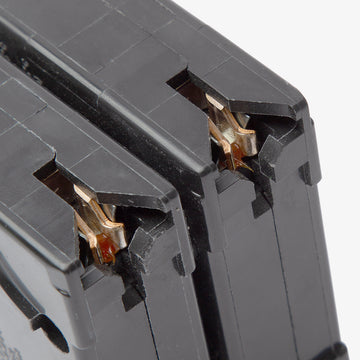

- Plug-On
Square D
HOM245
Miniature Circuit Breaker
Brand
Square D
SKU
HOM245
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HOM245 - 45A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D HOM245 - 45A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | HOM245 |
| Series | HOM |
| Amperage | 45A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|

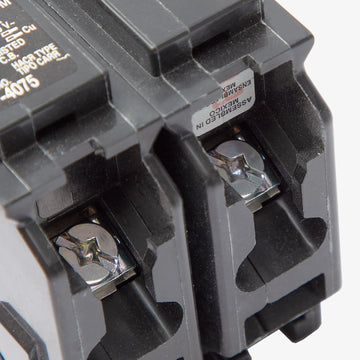

| Terminal Type | Box Lugs |
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Sold out
Quantity
Square D HOM245 - 45A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | HOM245-R |
| Series | HOM |
| Amperage | 45A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Similar Items
40A 2 Pole Miniature Circuit Breaker
35A 2 Pole Miniature Circuit Breaker
60A 2 Pole Miniature Circuit Breaker
Description
Designed to meet exact equipment specifications, the HOM245 supplies 45 amps of reliable thermal-magnetic protection. This specific amperage is often required by certain electric water heaters, heat pumps, or specialized residential machinery. Installation is straightforward within Square D Homeline load centers thanks to the standard plug-on mounting format. The two-pole footprint occupies two panel spaces and accommodates 8-2 AWG wiring. Rated for 10kAIC, it provides standard fault clearing.Specifications
| Brand | Square D |
|---|---|
| Part Number | HOM245 |
| Series | HOM |
| Amperage | 45A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
6 answersCan I install the HOM245 in a Square D QO load center?
No. Homeline (HOM) breakers have a 1-inch per pole format and are only compatible with Square D Homeline load centers. QO panels require QO series breakers, which use a 3/4-inch format.
What panels are compatible with the HOM245 circuit breaker?
The HOM245 is designed exclusively for use in Square D Homeline load centers and compatible Homeline equipment.
How much panel space does the HOM245 require?
As a 2-pole Homeline breaker, it requires two standard 1-inch spaces, taking up a total of 2 inches in the panel.
What is the recommended terminal tightening torque for the HOM245?
The box lugs on the HOM245 should be torqued to 40.7 lb-in when using 8 to 2 AWG copper or aluminum wire.
Is the Square D HOM245 HACR rated?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires this specific rating.
Does the HOM245 provide GFCI or AFCI protection?
No, the HOM245 is a standard thermal-magnetic circuit breaker. It provides overload and short-circuit protection but does not include ground fault or arc fault capabilities.
