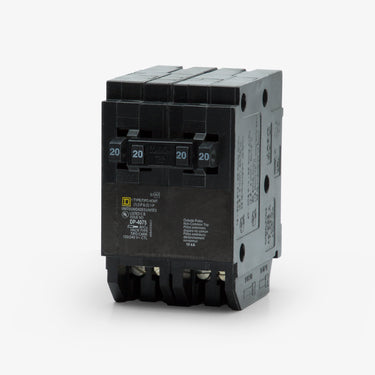

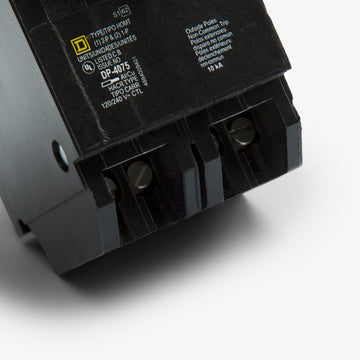

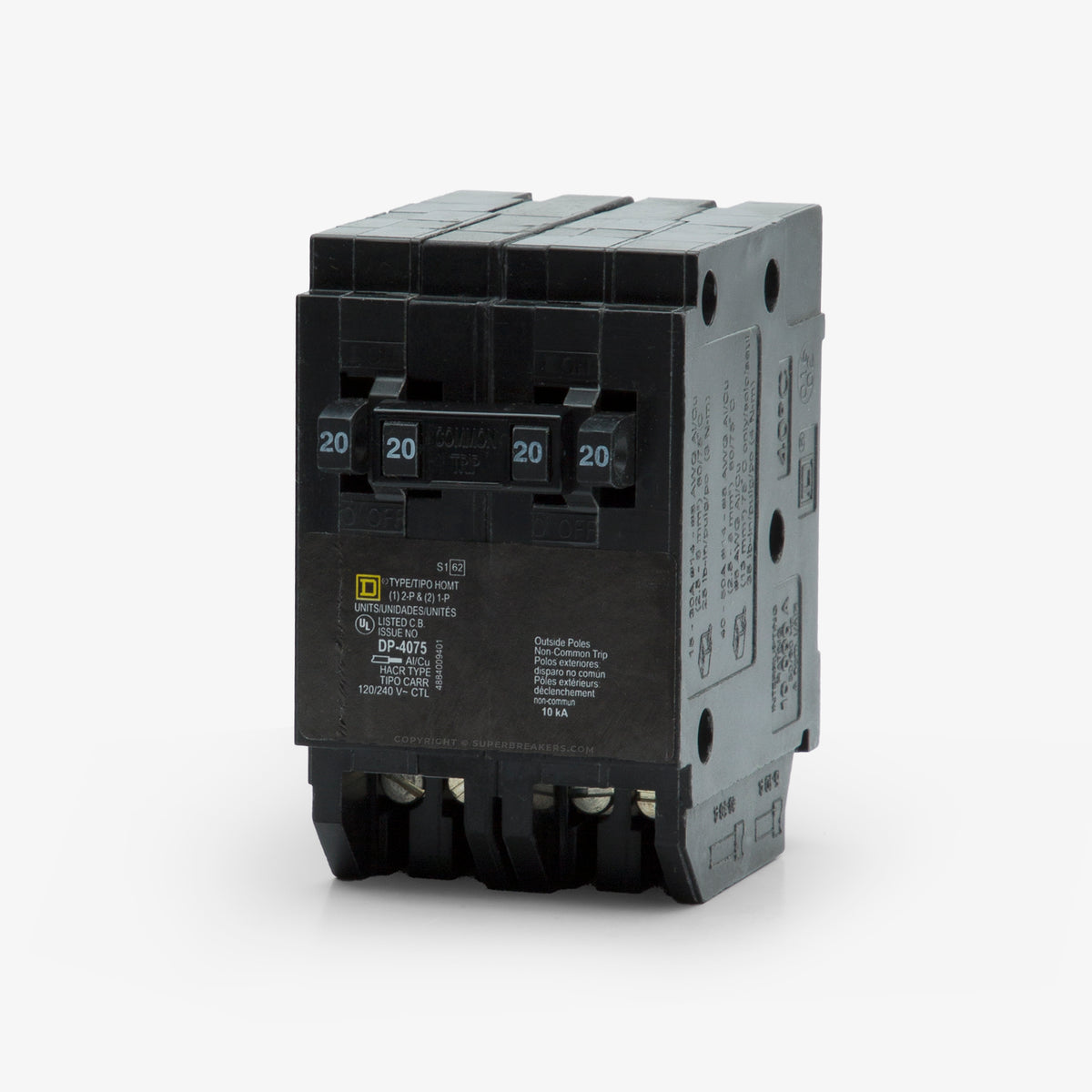

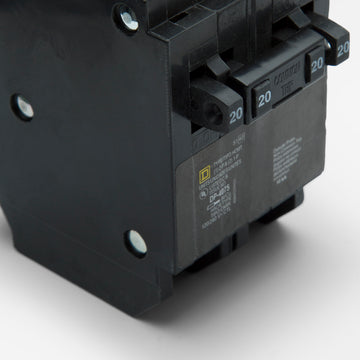

Square D HOMT2020220 Quad Tandem Miniature Circuit Breaker
- 20A
- 4 Pole
- Plug-On
Square D
HOMT2020220
Quad Tandem Miniature Circuit Breaker
Brand
Square D
SKU
HOMT2020220
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HOMT2020220 - 20A Quad Tandem Miniature Circuit Breaker
New
Quantity
Quantity
Square D HOMT2020220 - 20A Quad Tandem Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | HOMT2020220 |
| Series | HOMT |
| Amperage | 20A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 14-8 AWG |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quad Tandem |
|---|---|
| Available Options | Padlock Attachment |
| Standards | CSA C22.2 No. 5, HACR, RoHS, UL 489 |
| Approval | CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Quad Tandem, Common Trip |
Sold out
Quantity
Square D HOMT2020220 - 20A Quad Tandem Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | HOMT2020220-R |
| Series | HOMT |
| Amperage | 20A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 14-8 AWG |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quad Tandem |
|---|---|
| Available Options | Padlock Attachment |
| Standards | CSA C22.2 No. 5, HACR, RoHS, UL 489 |
| Approval | CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Quad Tandem, Common Trip |
Similar Items
15/20A Quad Tandem Miniature Circuit Breaker
15/25A Quad Tandem Miniature Circuit Breaker
15/15A Quad Tandem Miniature Circuit Breaker
Description
Part of the Homeline series, the HOMT2020220 expands residential electrical capacity. It combines two 20A single-pole circuits and one 20A double-pole circuit. Engineered for seamless integration, it installs into Square D Homeline load centers. The plug-on design ensures a secure fit while occupying just two panel spaces. Rated 10kAIC at 120/240V, it utilizes thermal-magnetic trip technology. The unit includes a common trip mechanism for the center poles and is HACR rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | HOMT2020220 |
| Series | HOMT |
| Amperage | 20A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 14-8 AWG |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quad Tandem |
|---|---|
| Available Options | Padlock Attachment |
| Standards | CSA C22.2 No. 5, HACR, RoHS, UL 489 |
| Approval | CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Quad Tandem, Common Trip |
Product FAQs
6 answersWhich load centers are compatible with the HOMT2020220 quad tandem breaker?
This breaker is designed exclusively for use in Square D Homeline load centers that are rated to accept tandem breakers. It cannot be installed in Square D QO panels or load centers from other manufacturers.
How many panel spaces does the HOMT2020220 require?
This quad tandem breaker requires two standard 1-inch spaces in a Homeline load center to provide four circuits (two 1-pole and one 2-pole).
What is the physical layout of the circuits on the HOMT2020220?
The quad tandem configuration features a central 2-pole 20A breaker, flanked by two independent 1-pole 20A breakers on the outside edges.
What is the recommended wire size and tightening torque for the terminals?
The box lugs accept 14 to 8 AWG copper or aluminum wire. The manufacturer specifies a tightening torque of 35.4 lb-in for secure connections.
Is the HOMT2020220 suitable for HVAC equipment?
Yes, this breaker is HACR rated, making it suitable for heating, air conditioning, and refrigeration applications that require a 20A circuit.
Does the center 2-pole breaker feature a common trip mechanism?
Yes, the inner 2-pole 20A circuit includes a common trip mechanism, ensuring both legs disconnect simultaneously in the event of an overload or short-circuit fault.
