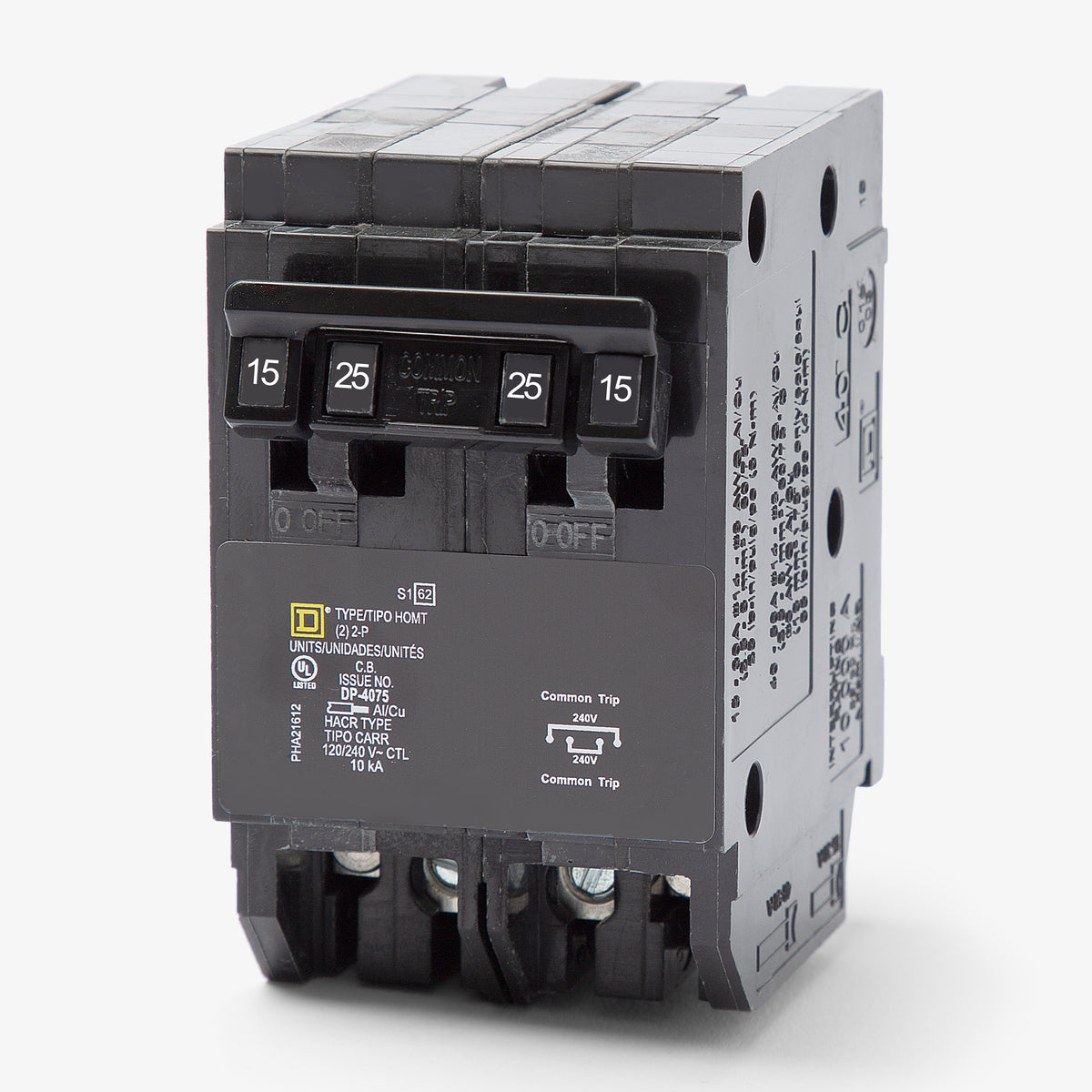

Schneider Electric HOMT215225 15/25A Quad Tandem Miniature Circuit Breaker
- 15/25A
- 4 Pole
- Plug-On
Schneider Electric
HOMT215225
15/25A Quad Tandem Miniature Circuit Breaker
Brand
Schneider Electric
SKU
HOMT215225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Schneider Electric HOMT215225 - 15/25A Quad Tandem Miniature Circuit Breaker
New
Quantity
Similar Items
20/30A Quad Tandem Miniature Circuit Breaker
15/30A Quad Tandem Miniature Circuit Breaker
20/30A Quad Tandem Miniature Circuit Breaker
Description
Engineered to maximize panel capacity, the HOMT215225 provides two independent 2-pole circuits—one 15A and one 25A—within a compact quad tandem design. This space-saving configuration allows installers to add 240V loads without requiring a larger enclosure. Designed for residential applications, this thermal-magnetic breaker mounts into Square D Homeline load centers. It occupies just two standard pole spaces while delivering 4-pole functionality. Rated 10 kAIC at 120/240V, it is HACR rated.Specifications
| Brand | Schneider Electric |
|---|---|
| Series | HOMT |
| Amperage | 15/25A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Homeline Load Centers |
| Wire Gauge | 14-8 AWG |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quad Tandem |
|---|---|
| Available Options | Padlock Attachment |
| Standards | HACR, UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Tandem |
Product FAQs
6 answersWhich load centers accept the HOMT215225 quad tandem breaker?
It is compatible exclusively with Square D Homeline load centers and CSED devices that are designed to accept tandem breakers. It will not fit QO series or panels from other manufacturers.
How many panel spaces does this quad tandem breaker occupy?
The HOMT215225 requires two standard 1-inch spaces in a Homeline panel, allowing you to add a 15A 2-pole circuit and a 25A 2-pole circuit without requiring four full spaces.
How are the 15A and 25A circuits configured on the HOMT215225?
This quad tandem breaker combines two independent 2-pole circuits into a single unit. It provides one 15A 2-pole circuit and one 25A 2-pole circuit, sharing a common trip internally for each respective pair.
What type of wire can be used with the HOMT215225 box lugs?
The box lugs on this breaker are rated to accept either copper or aluminum wiring.
Is this breaker suitable for HVAC equipment?
Yes, the HOMT215225 is HACR rated, making it suitable for heating, air conditioning, and refrigeration applications that require 15A or 25A 240V circuits.
Does the HOMT215225 provide ground-fault or arc-fault protection?
No, this is a standard thermal-magnetic breaker designed for overload and short-circuit protection only. It does not include GFCI or AFCI capabilities.
