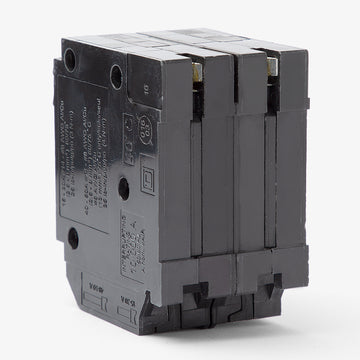

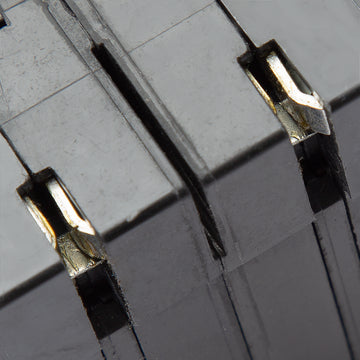

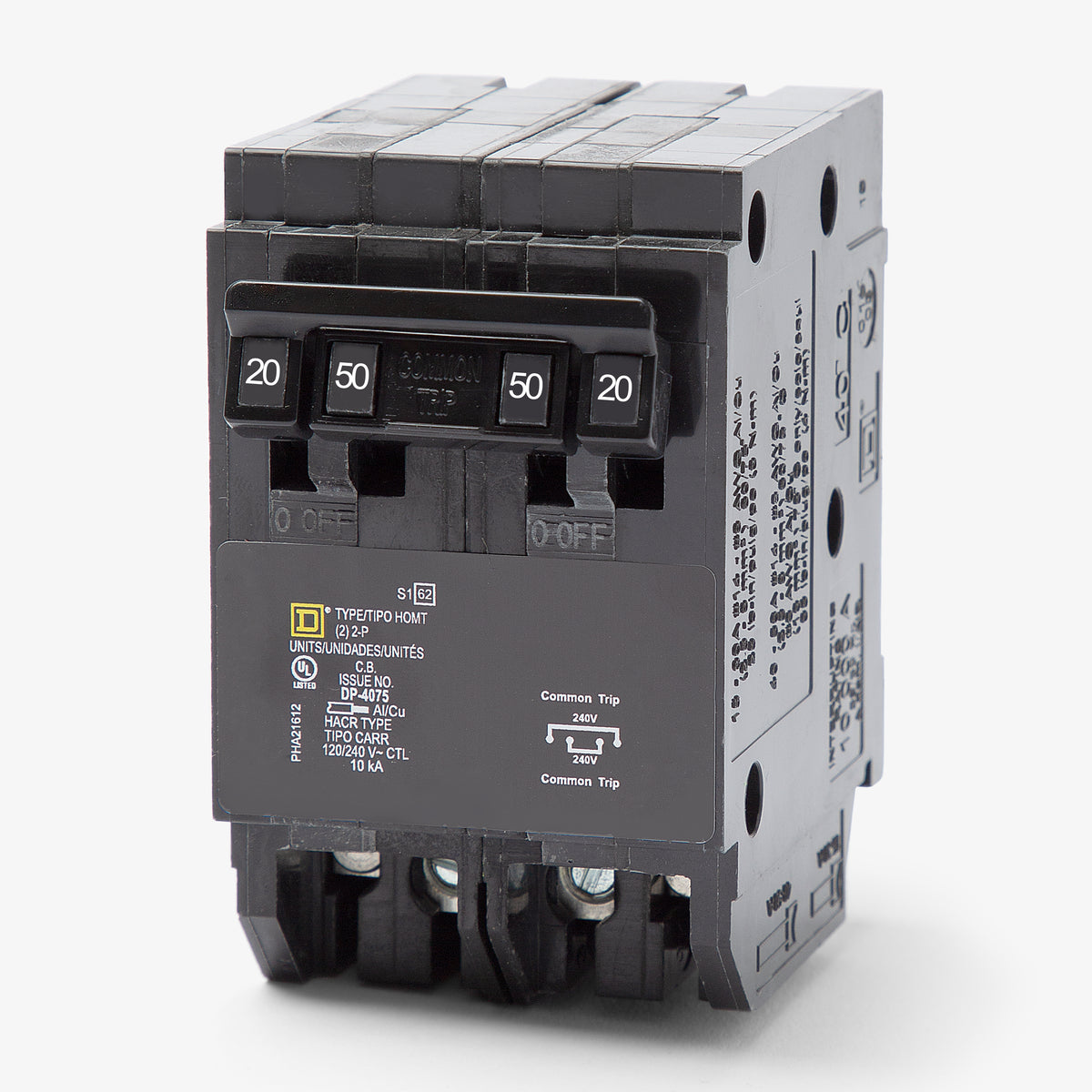

Square D HOMT220250 20/50A Quad Tandem Miniature Circuit Breaker
- 20/50A
- 4 Pole
- Plug-On
Square D
HOMT220250
20/50A Quad Tandem Miniature Circuit Breaker
Brand
Square D
SKU
HOMT220250
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HOMT220250 - 20/50A Quad Tandem Miniature Circuit Breaker
New
Quantity
Similar Items
30/50A Quad Tandem Miniature Circuit Breaker
20/40A Quad Tandem Miniature Circuit Breaker
25/40A Quad Tandem Miniature Circuit Breaker
Description
Engineered for residential power distribution, the Square D HOMT220250 quad tandem breaker maximizes panel capacity. It provides four poles of protection by combining a 20A two-pole and a 50A two-pole circuit into one unit. This thermal-magnetic breaker mounts into Square D Homeline load centers, occupying just two standard pole spaces. It features box lug terminals accepting copper or aluminum wiring. Rated for 10kAIC at 120/240VAC, this HACR-rated breaker delivers reliable protection.Specifications
| Brand | Square D |
|---|---|
| Series | HOMT |
| Amperage | 20/50A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 14-8 AWG (20A), 14-6 AWG (50A) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quad Tandem |
|---|---|
| Available Options | Padlock Attachment |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Quad Tandem, Common Trip |
Product FAQs
8 answersWhich load centers are compatible with the HOMT220250 quad tandem breaker?
This breaker is designed exclusively for use in Square D Homeline load centers. It cannot be installed in Square D QO panels or panels from other manufacturers. Additionally, it must be installed in panel slots specifically designed to accept tandem breakers.
How are the 20A and 50A circuits configured on this quad breaker?
The HOMT220250 provides two independent 240V circuits. The outer poles are tied together to form a 20A two-pole circuit, and the inner poles form a 50A two-pole circuit.
How many panel spaces does the HOMT220250 require for installation?
This quad tandem breaker occupies two standard 1-inch pole spaces in a Homeline load center, providing four poles of protection in half the typical footprint.
What are the wire gauge requirements for the 20A and 50A terminals?
The box lugs for the 20A outer circuit accept 14 to 8 AWG copper or aluminum wire. The lugs for the 50A inner circuit accept 14 to 6 AWG copper or aluminum wire.
Is the HOMT220250 rated for use with HVAC equipment?
Yes, this breaker is HACR rated, making it compliant for use with heating, air conditioning, and refrigeration motor group combinations.
Do the 240V circuits on this breaker feature common trip functionality?
Yes, both the 20A outer circuit and the 50A inner circuit feature common trip mechanisms. A fault on one leg of either circuit will trip both poles of that specific circuit simultaneously.
What is the difference between the HOMT220250 and HOMT2020250 breakers?
The HOMT220250 has a 2-pole 20A circuit on the outer poles for 240V applications. The HOMT2020250 has two independent 1-pole 20A circuits on the outer poles for 120V branch circuits. Both models share the same 2-pole 50A inner circuit.
What type of trip mechanism does the HOMT220250 use?
It utilizes a fixed thermal-magnetic trip mechanism. The thermal component provides a delayed response to prevent nuisance tripping from temporary overloads, while the magnetic component provides instantaneous tripping during severe short circuits.
