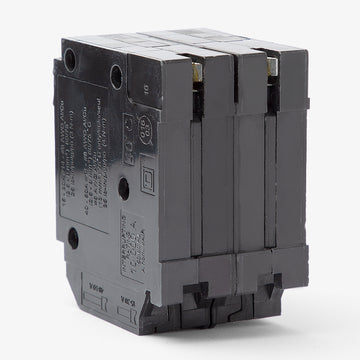

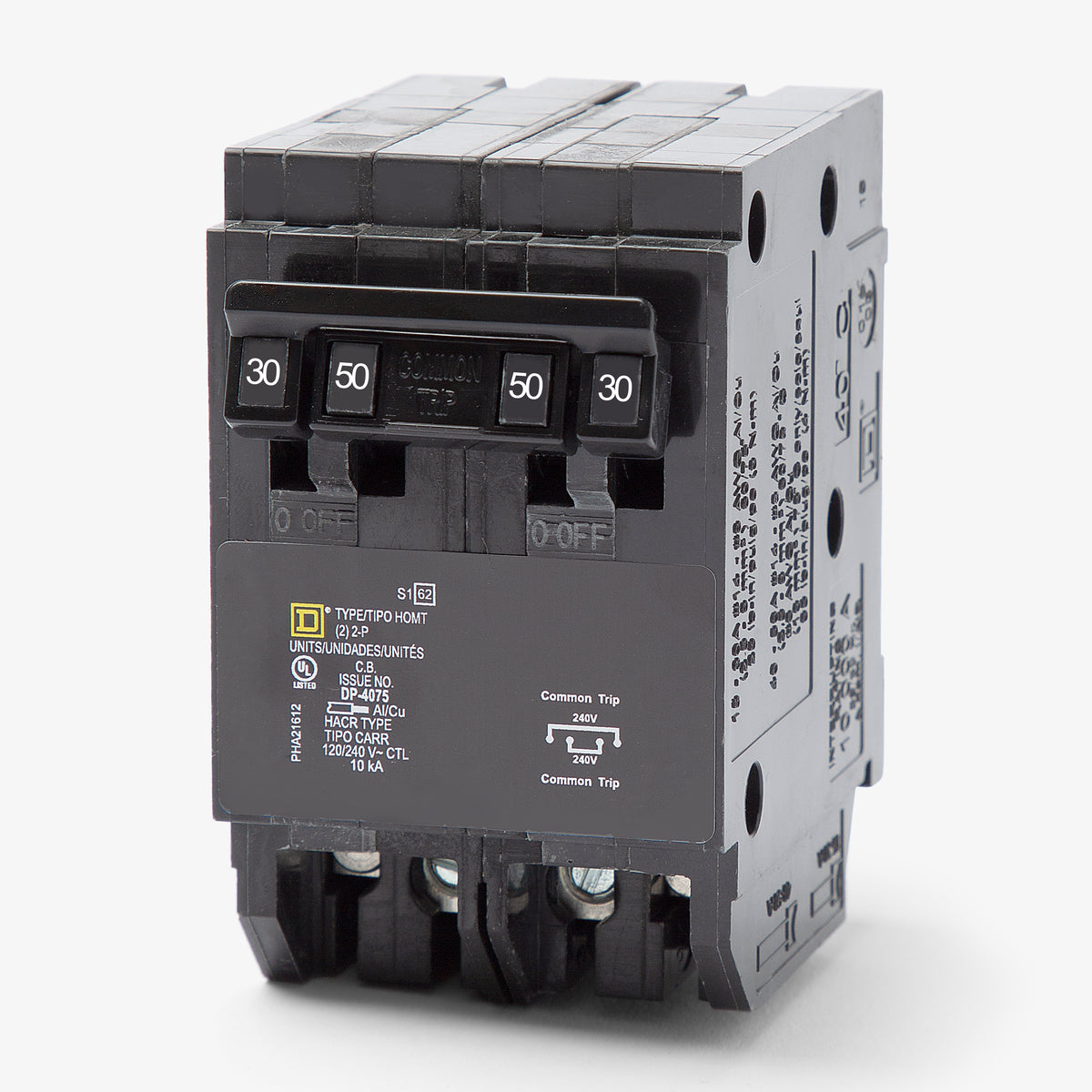

Square D HOMT230250 30/50A Quad Tandem Miniature Circuit Breaker
- 30/50A
- 4 Pole

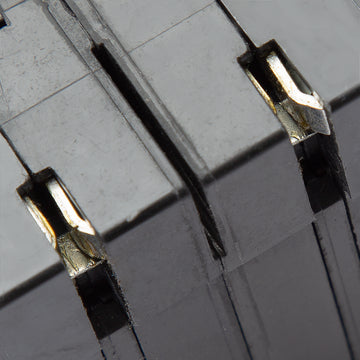

- Plug-On
Square D
HOMT230250
30/50A Quad Tandem Miniature Circuit Breaker
Brand
Square D
SKU
HOMT230250
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HOMT230250 - 30/50A Quad Tandem Miniature Circuit Breaker
New
Quantity
Similar Items
20/50A Quad Tandem Miniature Circuit Breaker
15/40A Quad Tandem Miniature Circuit Breaker
20/40A Quad Tandem Miniature Circuit Breaker
Description
Part of the Homeline series, this quad tandem breaker delivers a 2-pole 30A and a 2-pole 50A circuit within a standard two-space footprint. It is an ideal solution for residential upgrades where panel space is limited but additional 240V circuits are required. This unit mounts into compatible Square D Homeline load centers via a standard plug-on connection. Delivering a 10 kAIC interrupting rating at 120/240 VAC, it utilizes thermal-magnetic trip technology and is fully HACR rated.Specifications
| Brand | Square D |
|---|---|
| Series | HOMT |
| Amperage | 30/50A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 14-8 AWG (30A), 14-6 AWG (50A) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quad Tandem |
|---|---|
| Available Options | Padlock Attachment |
| Standards | HACR, UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Tandem |
Product FAQs
6 answersHow are the 30A and 50A circuits configured on the HOMT230250?
This quad tandem breaker features a 30A, 2-pole circuit on the outer poles and a 50A, 2-pole circuit on the inner poles. Both circuits operate with a common trip.
How much panel space does the HOMT230250 require?
This quad tandem breaker requires two standard 1-inch spaces in a compatible Square D Homeline load center, providing four poles of protection in a compact footprint.
What are the wire size and torque specifications for the HOMT230250?
The 30A outer poles accept 14 to 8 AWG copper or aluminum wire, while the 50A inner poles accept 14 to 6 AWG. All box lug terminals should be torqued to 35.4 to 40.7 lb-in (4.0 to 4.6 N.m) during installation.
Can I install the HOMT230250 in a Square D QO load center?
No. This breaker is exclusively designed for Square D Homeline load centers. It will not fit QO series panels, which require QO or QOT type breakers.
Is the HOMT230250 suitable for use with HVAC equipment?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires HACR-type circuit protection.
Does this breaker provide a common trip for both 240V circuits?

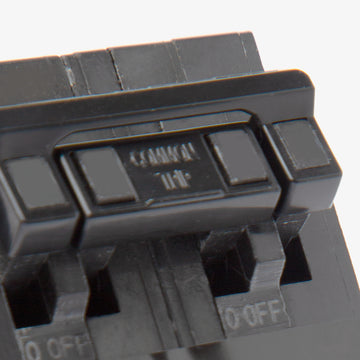

Yes, the HOMT230250 is factory-assembled with internal common trip mechanisms and handle ties for both the 30A outer poles and the 50A inner poles. This ensures both legs of either 240V circuit will trip simultaneously during a fault.
