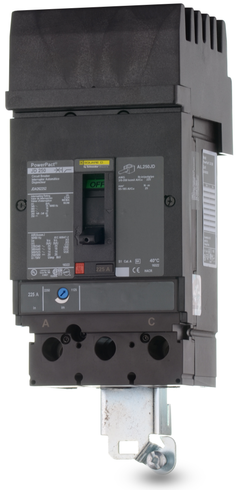

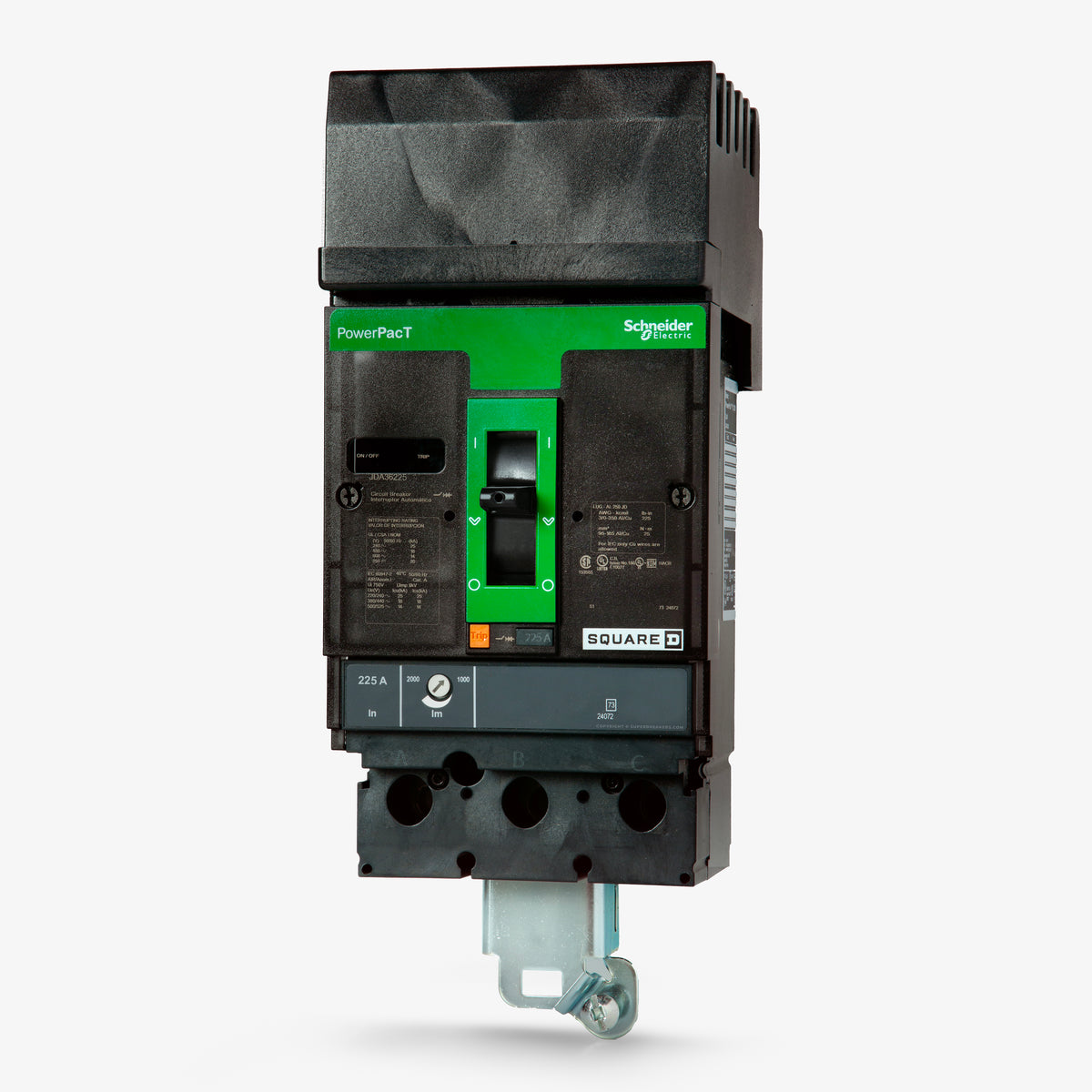

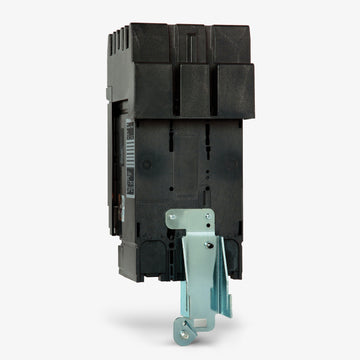

Square D JDA36225 Molded Case Circuit Breaker
- 225A
- 3 Pole
- I-Line
Square D
JDA36225
Molded Case Circuit Breaker
Brand
Square D
SKU
JDA36225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D JDA36225 - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D JDA36225 - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | JDA36225 |
| Series | JDA |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | JDA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 3/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release, Shunt Trip |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL, CCC |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Mercury Free, PVC Free |
Quantity
Square D JDA36225 - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | JDA36225-R |
| Series | JDA |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | JDA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 3/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release, Shunt Trip |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL, CCC |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Mercury Free, PVC Free |
Similar Items
175A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
225A 2 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty applications, the Square D JDA36225 is a 225A, 3-pole molded case circuit breaker from the PowerPacT J-Frame series. It provides reliable long-time and instantaneous (LI) protection for industrial electrical systems. This component plugs into Square D I-Line panelboards and switchboards. It also functions as a drop-in substitute for discontinued KA36225 breakers. It features a D-interrupting rating of 18kAIC at 480V and includes the signature Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | JDA36225 |
| Series | JDA |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | JDA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 3/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release, Shunt Trip |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL, CCC |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Mercury Free, PVC Free |
Product FAQs
9 answersWhich panelboards are compatible with the JDA36225 circuit breaker?

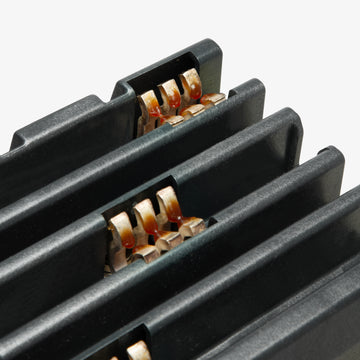

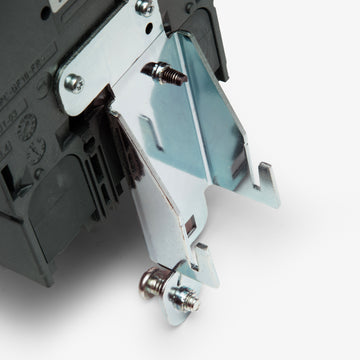

This breaker is designed exclusively for Square D I-Line panelboards and switchboards. The plug-in jaw mechanism mounts directly onto the I-Line bus.
How much mounting space does this 3-pole breaker require in an I-Line panel?
It requires 4.5 inches of I-Line bus mounting space. Each phase occupies 1.5 inches.
What are the magnetic hold and trip threshold values for this 225A breaker?
The JDA36225 features a magnetic hold current of 1125A and a magnetic trip current of 2250A.
What is the standard replacement lug kit for this breaker?
The factory replacement lug kit is catalog number AL250JD, which accepts one 3/0 AWG to 350 kcmil aluminum or copper wire per phase.
What is the recommended tightening torque for the AL250JD load side lugs?
The load side wire lugs should be torqued to 221 lb-in (25 N.m) when securing properly sized aluminum or copper conductors.
Does this breaker include both line and load side wire lugs?
No, it is equipped with mechanical lugs on the load side only. The line side utilizes the integrated I-Line plug-in jaw connection to attach directly to the panelboard bus.
Does this breaker feature a push-to-trip button?
Yes, it includes a push-to-trip mechanism on the front cover. This allows you to mechanically test the tripping function and verify the breaker mechanism is operating correctly before performing maintenance.
Is this circuit breaker HACR rated?
Yes, the JDA36225 is HACR rated, making it approved for overcurrent protection on commercial heating, air conditioning, and refrigeration equipment.
What does the LI designation mean on the trip unit?
The LI code indicates the breaker provides Long-Time (L) and Instantaneous (I) trip functions using a thermal-magnetic trip unit. This protects the circuit against both sustained overloads and sudden short circuits.
