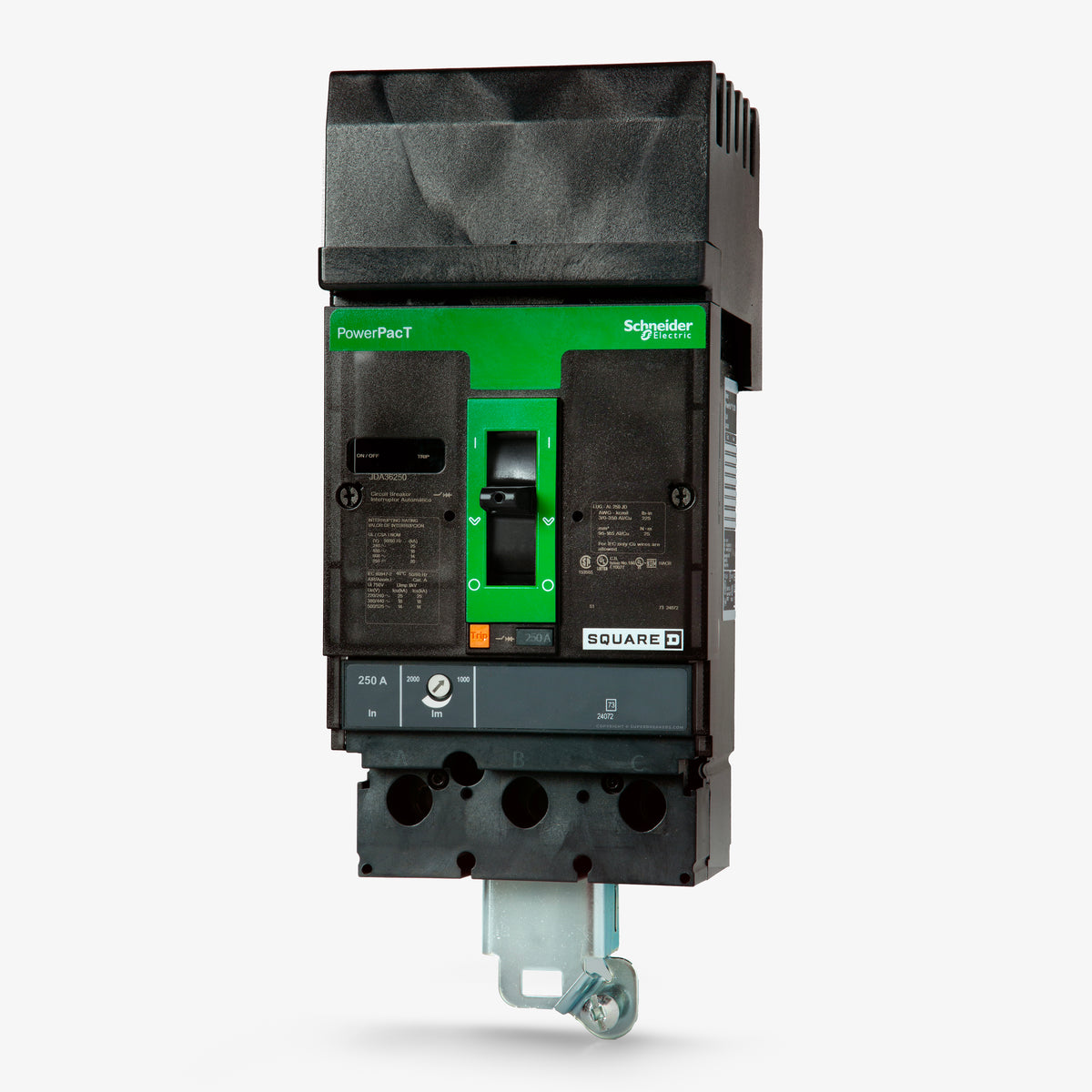

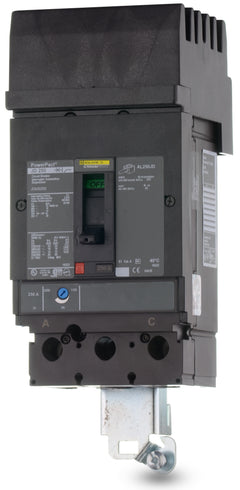

Square D JDA36250 Molded Case Circuit Breaker
- 250A
- 3 Pole
- I-Line
Square D
JDA36250
Molded Case Circuit Breaker
Brand
Square D
SKU
JDA36250
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D JDA36250 - 250A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D JDA36250 - 250A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | JDA36250 |
| Series | JDA |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | JDA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 3/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Motor Operator, Rotary Handle, Phase Barriers |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UKCA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Reverse Feed, Non-Interchangeable Trip, Mercury Free, PVC Free |
Quantity
Square D JDA36250 - 250A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | JDA36250-R |
| Series | JDA |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | JDA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 3/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Motor Operator, Rotary Handle, Phase Barriers |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UKCA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Reverse Feed, Non-Interchangeable Trip, Mercury Free, PVC Free |
Similar Items
175A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
250A 2 Pole Molded Case Circuit Breaker
Description
Engineered for industrial applications, the Square D JDA36250 is a 3-pole, 250A MCCB from the PowerPacT J-Frame family. With its I-Line plug-on mounting style, it installs seamlessly into Square D I-Line panelboards and switchboards. It also serves as a replacement for legacy KA36250 breakers. Rated for 18 kAIC at 480VAC, it utilizes a thermal-magnetic trip unit with adjustable magnetic settings. The breaker includes Visi-Trip visual indication and current-limiting capabilities.Specifications
| Brand | Square D |
|---|---|
| Part Number | JDA36250 |
| Series | JDA |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | JDA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 3/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Motor Operator, Rotary Handle, Phase Barriers |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UKCA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Reverse Feed, Non-Interchangeable Trip, Mercury Free, PVC Free |
Product FAQs
5 answersWhat types of enclosures or panels accept the JDA36250?
This breaker is specifically designed with an I-Line plug-in mounting connection. It will only fit Square D I-Line panelboards and switchboards, and cannot be used in traditional bolt-on or unit-mount enclosures.
What does the LI trip function mean on this breaker?
The LI designation indicates that the thermal-magnetic trip unit provides Long-Time (L) protection for sustained overloads and Instantaneous (I) protection for sudden short circuits. On this specific model, the thermal long-time setting is fixed, while the instantaneous magnetic trip is user-adjustable for coordination with downstream devices.
What are the wire size requirements for the standard load lugs?
The factory-installed load lugs accept wire sizes ranging from 3/0 AWG to 350 kcmil. These standard lugs are rated for both Aluminum (Al) and Copper (Cu) conductors. Verify your enclosure has adequate bending space when using maximum gauge 350 kcmil wiring.
How does the JDA36250 connect to the panel busbar?

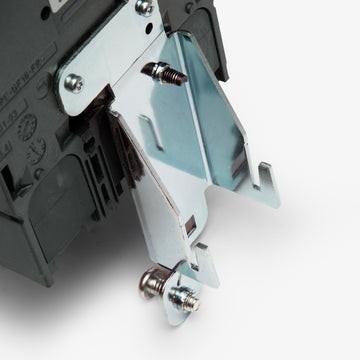

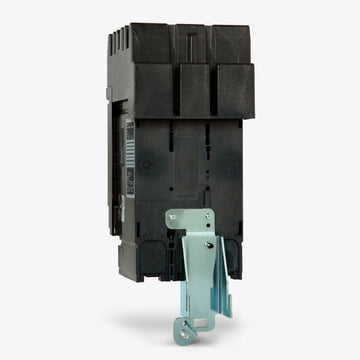

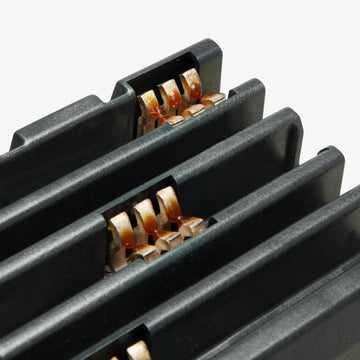

It features Square D's I-Line plug-in design. The line side uses specialized jaws that firmly clamp onto the panelboard's vertical bus stack, ensuring a secure electrical connection without requiring individual line-side cables. The load side uses standard mechanical wire lugs.
Is this PowerPacT breaker suitable for DC power systems?
Yes. In addition to alternating current applications up to 600VAC, it is rated for use in direct current systems up to 250VDC. When installed in DC systems, it provides up to a 20 kA interrupting capacity, making it suitable for industrial battery banks or commercial DC power applications.
