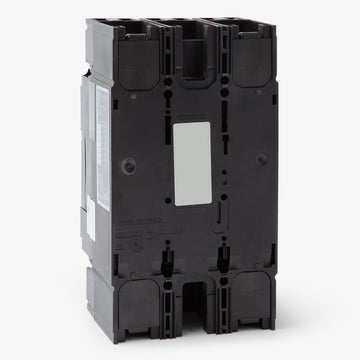

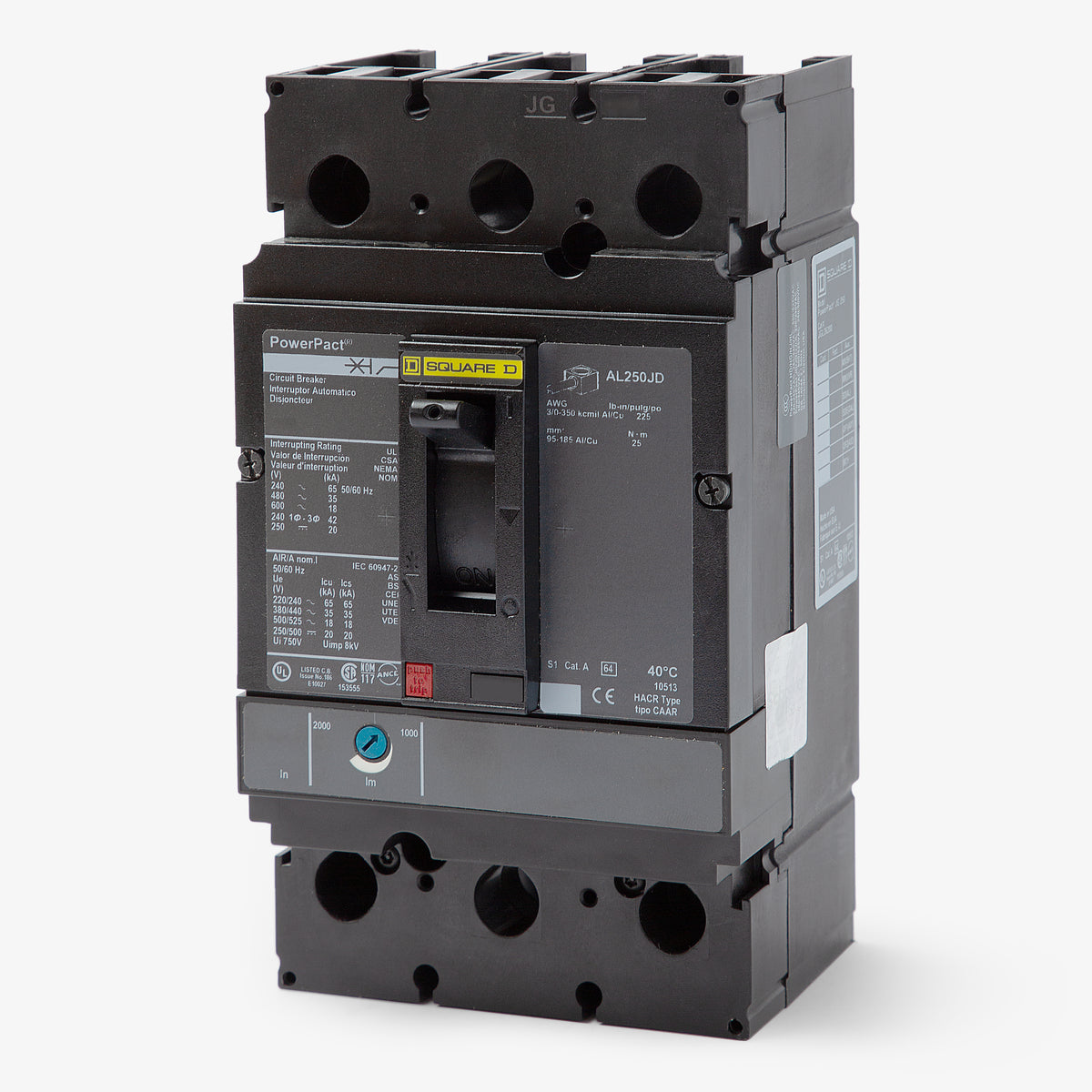

Square D JGL36225 Molded Case Circuit Breaker
- 225A
- 3 Pole
- Unit Mount
Square D
JGL36225
Molded Case Circuit Breaker
Brand
Square D
SKU
JGL36225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D JGL36225 - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D JGL36225 - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | JGL36225 |
| Series | JGL |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | JGL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards, Switchboards, Motor Control Centers, Industrial Enclosures |
| Wire Gauge | 3/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Lugs (AL250JD) |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UL, UKCA |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Mercury Free, PVC Free, Visual Trip Indicator |
Quantity
Square D JGL36225 - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | JGL36225-R |
| Series | JGL |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | JGL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards, Switchboards, Motor Control Centers, Industrial Enclosures |
| Wire Gauge | 3/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Lugs (AL250JD) |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UL, UKCA |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Mercury Free, PVC Free, Visual Trip Indicator |
Similar Items
250A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
Description
Part of the PowerPacT J-Frame series, this 225-amp molded case circuit breaker provides robust long-time and instantaneous trip functions for commercial environments. The unit-mount configuration integrates seamlessly into Square D NF panelboards, motor control centers, and industrial enclosures. Featuring a 65kAIC rating at 240V and adjustable magnetic trip settings, it ensures precise coordination while maintaining a compact footprint.Specifications
| Brand | Square D |
|---|---|
| Part Number | JGL36225 |
| Series | JGL |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | JGL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards, Switchboards, Motor Control Centers, Industrial Enclosures |
| Wire Gauge | 3/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Lugs (AL250JD) |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UL, UKCA |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Mercury Free, PVC Free, Visual Trip Indicator |
Product FAQs

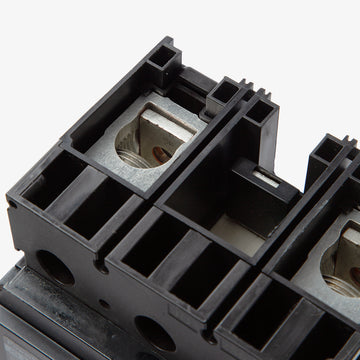

6 answersWhat wire sizes and torque specifications are required for the lugs on the JGL36225?
The factory-installed lugs accept 3/0 AWG to 350 kcmil aluminum or copper conductors. When installing, tighten the terminals to 221 lb-in (25 N.m).

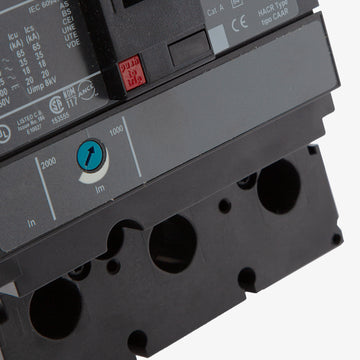

How do I configure the trip settings on this circuit breaker?
This thermal-magnetic breaker features fixed thermal overload protection at 225A and an adjustable magnetic short-circuit pickup. You can adjust the magnetic trip range from a low hold current of 1125A up to a high trip current of 2250A.
Is it safe to reverse feed the JGL36225?
Yes. Standard unit-mount PowerPacT J-Frame breakers with factory-sealed trip units are suitable for reverse connection.
What is the difference between the JGL36225 and the JGA36225?
The JGL36225 is a unit-mount circuit breaker that uses lug connections on both the line and load sides. The JGA36225 is the I-Line version, featuring a plug-on line side specifically designed for Square D I-Line panelboards.
Is this breaker rated for 100 percent continuous current?
No, this standard model is rated for 80 percent continuous current. If your application requires a 100 percent continuous current rating, you must use the JGL36225C variant.
Will this circuit breaker fit in a standard I-Line panelboard?
No, this is a feed-thru, unit-mount breaker intended for Square D NF panelboards, switchboards, and industrial enclosures. For an I-Line panelboard, you must use an I-Line specific frame like the JGA36225.
