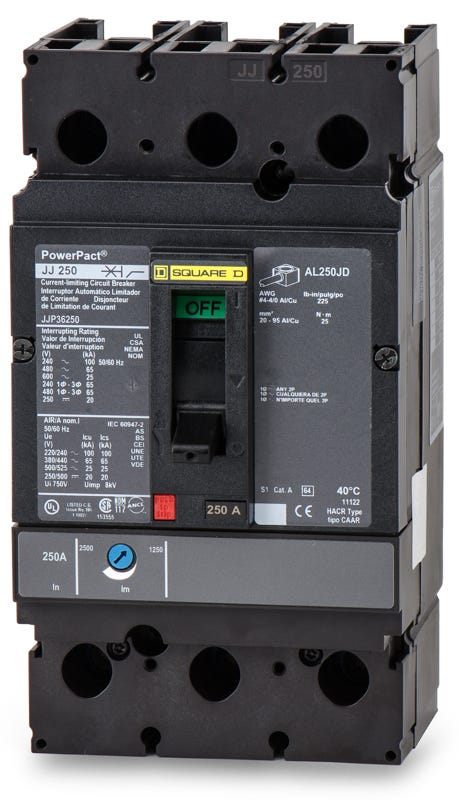

Schneider Electric JJP36250 Molded Case Circuit Breaker
- 250A
- 3 Pole
- Unit Mount
Schneider Electric
JJP36250
Molded Case Circuit Breaker
Brand
Schneider Electric
SKU
JJP36250
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Schneider Electric JJP36250 - 250A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Schneider Electric JJP36250 - 250A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Schneider Electric |
|---|---|
| Part Number | JJP36250 |
| Series | JJP |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | JJP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NQ Panelboards, Square D NF Panelboards, Square D QED Switchboards, Square D Model 6 Motor Control Centers, Industrial Control Panels |
| Wire Gauge | 3/0 AWG-350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Visual Trip Indicator, Reverse Feed, 80% Rated, Trip-Free Mechanism |
