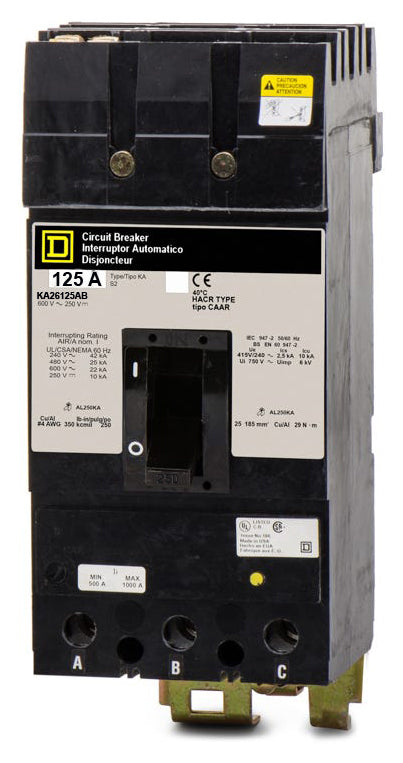

Square D KA26125AB Molded Case Circuit Breaker
- 125A
- 2 Pole
- I-Line
Square D
KA26125AB
Molded Case Circuit Breaker
Brand
Square D
SKU
KA26125AB
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D KA26125AB - 125A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D KA26125AB - 125A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | KA26125AB |
| Series | KA |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480Y/277VAC, 25kA @ 480VAC, 22kA @ 600Y/347VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Phase Connection A-B |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D KA26125AB - 125A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | KA26125AB-R |
| Series | KA |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480Y/277VAC, 25kA @ 480VAC, 22kA @ 600Y/347VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Phase Connection A-B |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
150A 2 Pole Molded Case Circuit Breaker
150A 2 Pole Molded Case Circuit Breaker
175A 2 Pole Molded Case Circuit Breaker
Description
Engineered for industrial applications, the Square D KA26125AB delivers reliable overcurrent protection. This 2-pole, 125A molded case circuit breaker utilizes thermal-magnetic trip technology with long-time and instantaneous functions. Designed for Square D I-Line panelboards and switchboards, it features plug-on mounting and an AB phase connection. This legacy K-Frame unit is replaced by the PowerPact HGA261251 for modern upgrades. Rated 25kAIC at 480VAC, it includes a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | KA26125AB-R |
| Series | KA |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480Y/277VAC, 25kA @ 480VAC, 22kA @ 600Y/347VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Phase Connection A-B |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
8 answersWhat panelboards are compatible with the KA26125AB circuit breaker?
This breaker is designed exclusively for use in Square D I-Line panelboards and switchboards. It features an I-Line style plug-in connection on the line side.
What does the AB suffix mean in the KA26125AB catalog number?
The AB suffix indicates the factory-configured phase connection. This 2-pole breaker is designed to connect to the A and B phases on the I-Line bus.
What wire sizes are accepted by the lugs on this breaker?
The load-side lugs accept wire gauges from 4 AWG to 350 kcmil. They are compatible with both aluminum and copper conductors.
How does this breaker mount into the panel?
It uses an I-Line style plug-in connection for the line side, which mounts directly onto the panelboard bus, and features standard lugs for the load-side wire connections.
What does the LI trip function code indicate?
The LI code means the thermal-magnetic trip unit provides Long-Time overload protection and Instantaneous short-circuit protection.
Is the trip unit on the KA26125AB adjustable?
Yes, it features a fixed thermal element for overload protection and an adjustable magnetic element, allowing you to set the instantaneous short-circuit trip threshold.
Is the KA26125AB rated for direct current systems?
Yes, this breaker is rated for both AC and DC systems. It supports up to 600VAC and is also rated for 250VDC with a 10kA interrupting capacity.
Is the Square D KA frame still in active production?
The KA frame is a legacy molded case circuit breaker. Square D has replaced the legacy K-frame series with the newer PowerPact H-frame breakers for modern installations.
