Square D KA26150AC Molded Case Circuit Breaker
- 150A
- 2 Pole
- I-Line
Square D
KA26150AC
Molded Case Circuit Breaker
Brand
Square D
SKU
KA26150AC
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

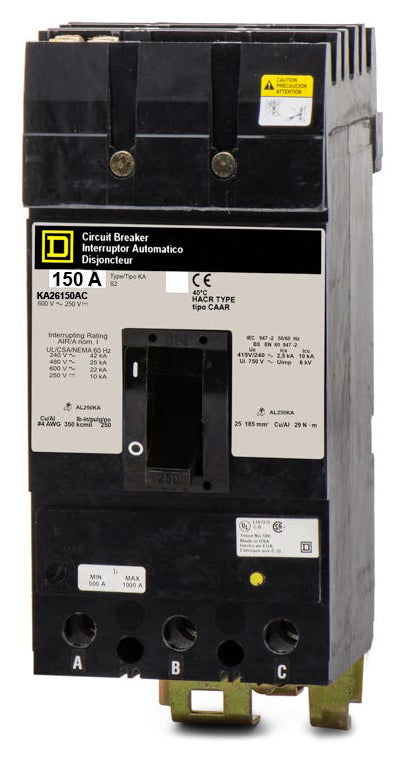

Square D KA26150AC - 150A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D KA26150AC - 150A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | KA26150AC |
| Series | KA |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480Y/277VAC, 25kA @ 480VAC, 22kA @ 600Y/347VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Phase Connection A-C (Factory Configured) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Quantity
Square D KA26150AC - 150A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | KA26150AC |
| Series | KA |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480Y/277VAC, 25kA @ 480VAC, 22kA @ 600Y/347VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Phase Connection A-C (Factory Configured) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Similar Items
175A 2 Pole Molded Case Circuit Breaker
125A 2 Pole Molded Case Circuit Breaker
125A 2 Pole Molded Case Circuit Breaker
Description
Engineered for industrial applications, the Square D KA26150AC provides reliable 150A protection. This 2-pole MCCB features a thermal-magnetic trip unit with adjustable magnetic settings. It installs into Square D I-Line panelboards using a factory-configured A-C phase connection. As a legacy K-Frame component, it maintains existing infrastructure and is replaced by the JGA261502 model for upgrades. Rated 25 kAIC at 480VAC, it includes a Visi-Trip indicator and is HACR rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | KA26150AC |
| Series | KA |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480Y/277VAC, 25kA @ 480VAC, 22kA @ 600Y/347VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Phase Connection A-C (Factory Configured) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Product FAQs
8 answersWhich panelboards are compatible with the KA26150AC circuit breaker?
This breaker is designed exclusively for Square D I-Line panelboards and switchboards. It utilizes a plug-on I-Line connection that engages directly with the panel busbar system.
What does the "AC" suffix indicate in the KA26150AC catalog number?
In Square D I-Line nomenclature, the "AC" suffix designates the phase connection. This specific 2-pole breaker is factory-configured to connect to the A and C phases of the panelboard bus.
What wire sizes are accepted by the lugs on this breaker?
The factory lugs accept aluminum or copper wire ranging from 4 AWG to 350 kcmil. Ensure proper torque specifications are followed during installation to maintain a secure connection.
What type of terminals are included on the load side of this breaker?
The load side is equipped with mechanical lugs designed to accept either aluminum or copper conductors. The line side utilizes the I-Line plug-in jaws, so no line-side wiring is required.
How does the adjustable magnetic trip function work on this K-frame breaker?
While the thermal overload protection is fixed at 150 amps, the magnetic short-circuit trip threshold can be adjusted. This allows electricians to fine-tune the instantaneous trip response to coordinate with other breakers in the system and prevent nuisance tripping.
Can the thermal trip setting be adjusted on the KA26150AC?
No, the thermal overload protection is fixed at 150 amps. Only the magnetic short-circuit trip threshold is adjustable on this specific K-frame breaker.
Is the KA26150AC still actively manufactured by Square D?
The KA frame is a legacy molded case circuit breaker. For modern applications or upgrades, Square D has replaced the K-frame series with the PowerPact H-frame family for amperages up to 150A.
What safety precautions should be taken before installing this I-Line circuit breaker?
Always de-energize the panelboard or switchboard before installation. Verify that the power is completely off using a properly rated voltage sensing device, and ensure the breaker is in the OFF position before engaging it with the busbar.
