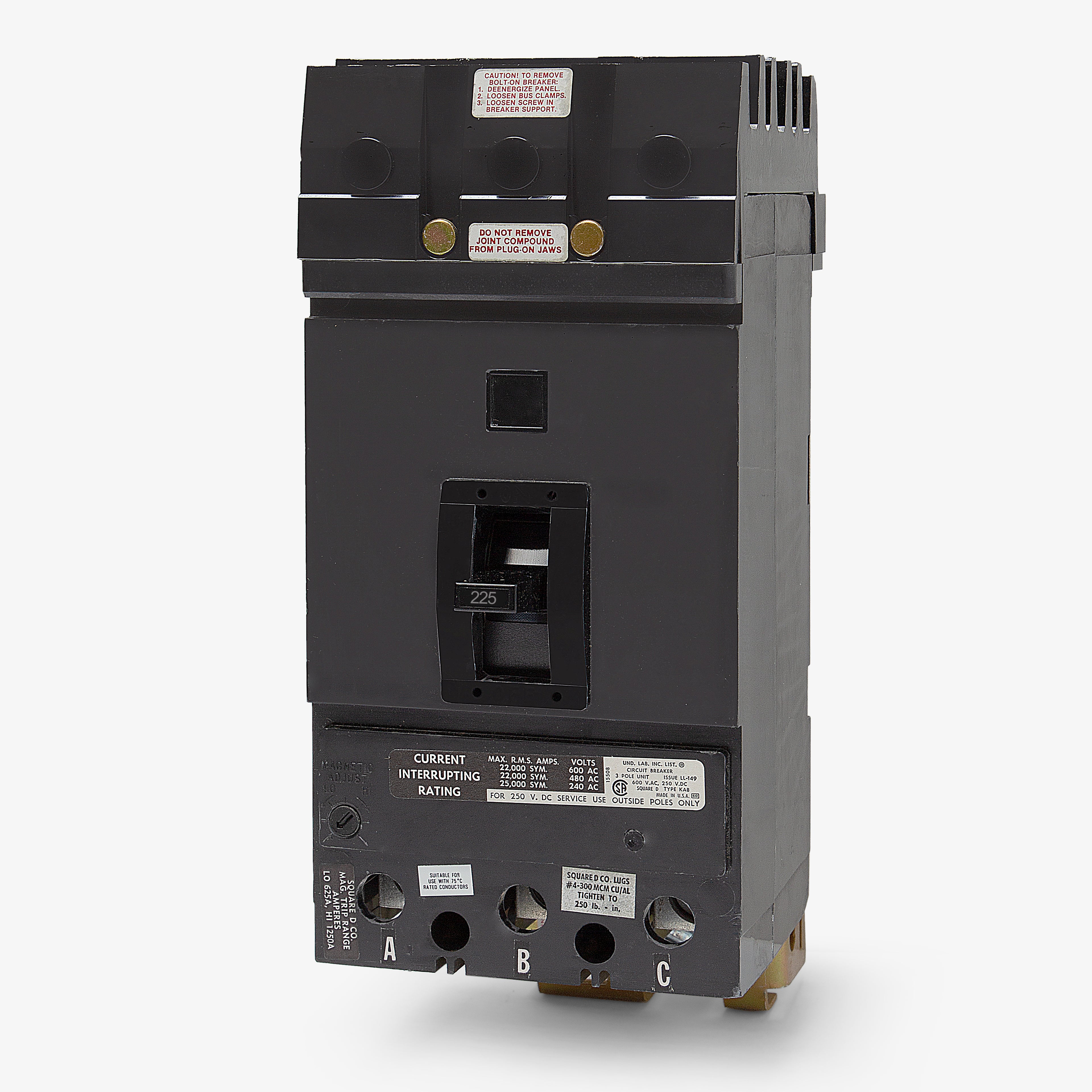

Schneider Electric / Square D KAB36225 Molded Case Circuit Breaker
- 225A
- 3 Pole
- I-Line
Schneider Electric / Square D
KAB36225
Molded Case Circuit Breaker
Brand
Schneider Electric / Square D
SKU
KAB36225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Schneider Electric / Square D KAB36225 - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
150A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
Description
Built for industrial applications, the Square D KAB36225 is a 3-pole, 225A molded case circuit breaker from the legacy K-Frame series. It operates up to 600VAC, providing long-time and instantaneous (LI) overcurrent protection. Featuring an I-Line mounting style, it integrates into Square D I-Line panelboards and switchboards. This unit is superseded by the JGA36225 for modern upgrades. It delivers a 42kA interrupting capacity at 240V and includes a Visi-Trip indicator.Specifications
| Brand | Schneider Electric / Square D |
|---|---|
| Part Number | KAB36225 |
| Series | KAB |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat is the modern replacement for the legacy KAB36225 circuit breaker?
The KAB36225 is a legacy K-frame breaker. For complete panel upgrades or modern replacements, it is superseded by the PowerPact J-frame series, specifically the JGA36225.
What replacement lug kit is compatible with the load side of this breaker?
The standard mechanical lug kit for this 225A K-frame breaker is the AL250KA. This kit includes three lugs that accept 4 AWG to 350 kcmil aluminum or copper conductors.
How does the I-Line mounting system secure this breaker to the panelboard?

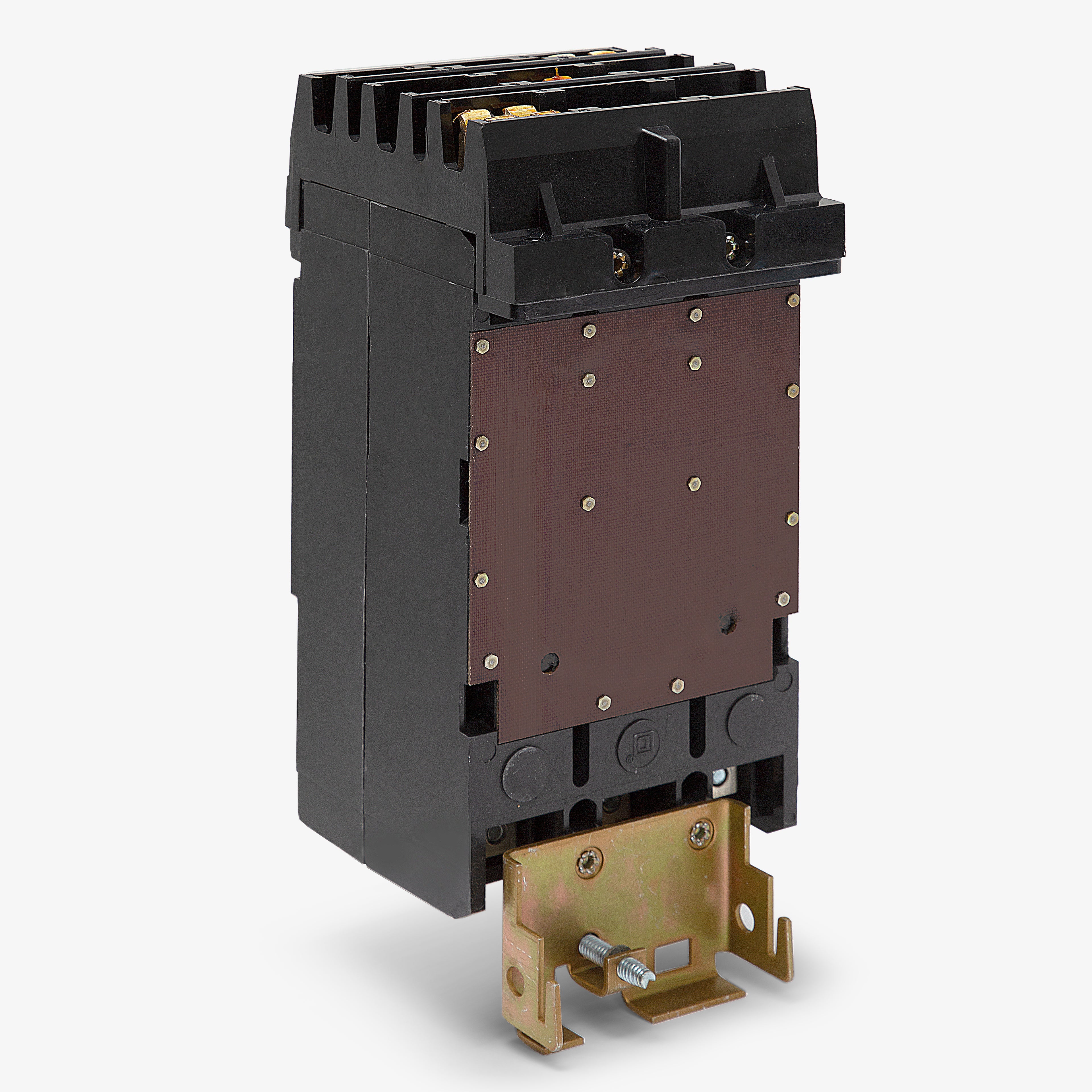

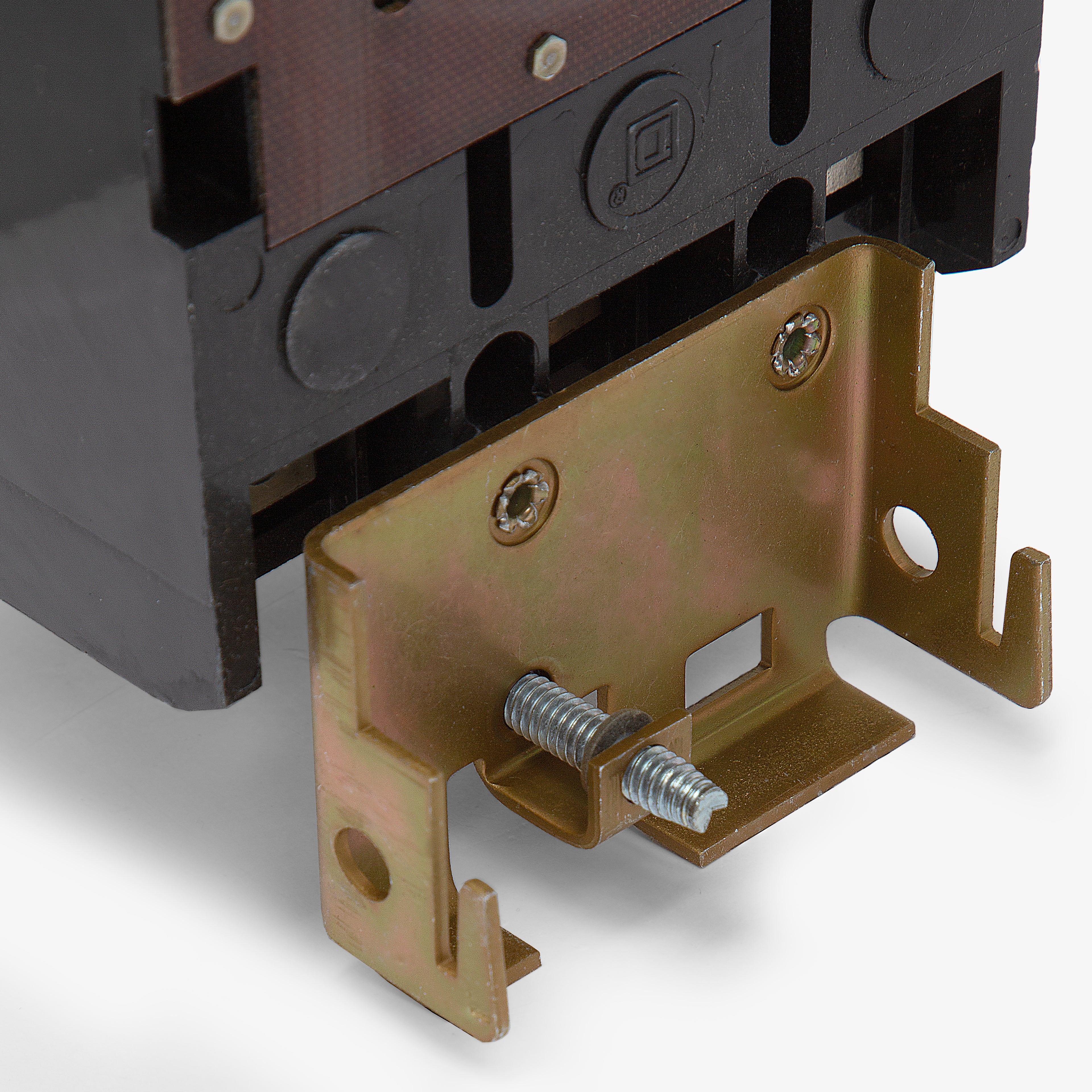

The breaker jaws plug directly onto the I-Line busbar stack. It is then bolted to the panel mounting pan using a retaining bracket and screw to secure the connection and prevent movement.
Is electrical joint compound required when installing this I-Line breaker?

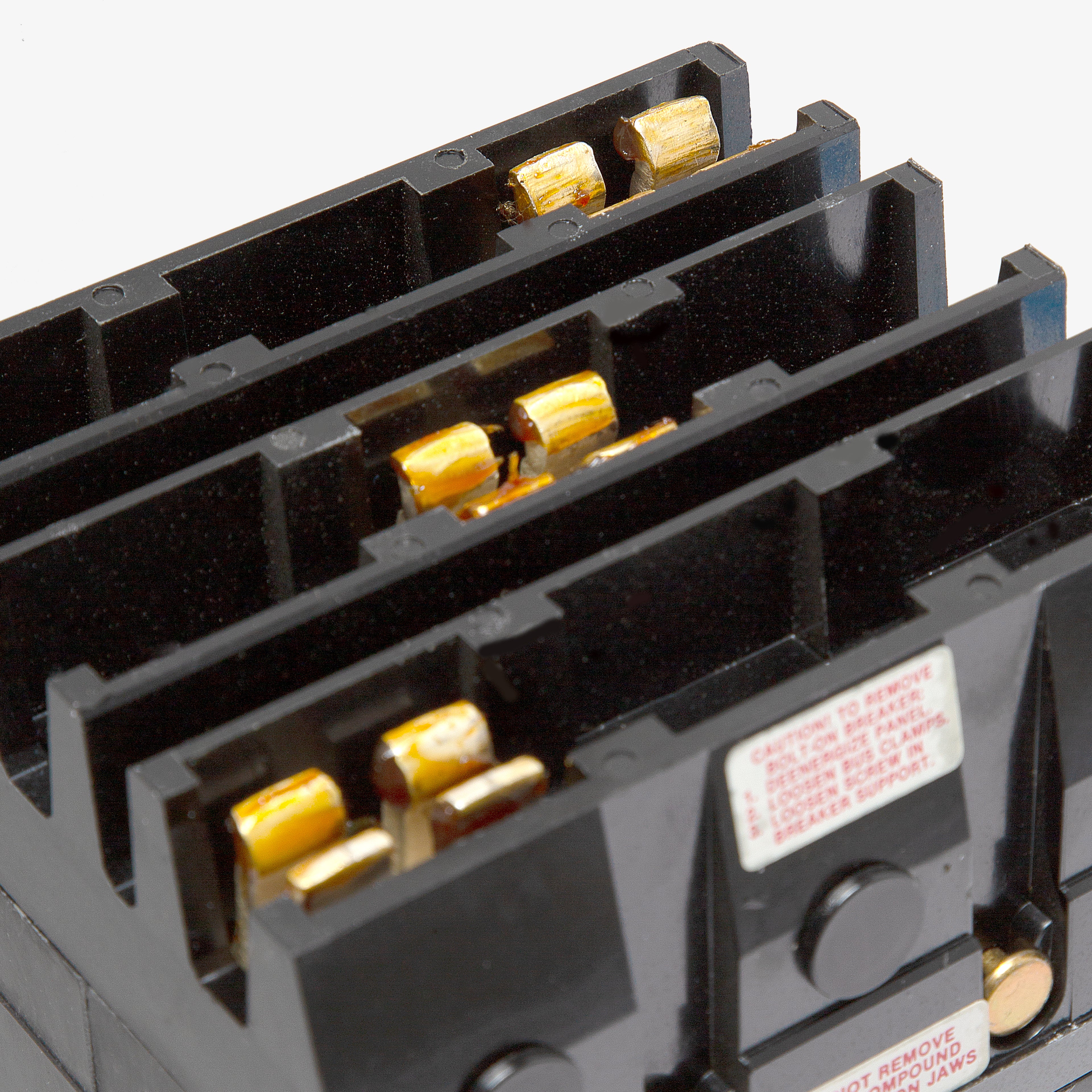

Yes. When installing or reinstalling an I-Line circuit breaker, Square D recommends applying PJC7201 joint compound to the breaker jaws to maintain optimal electrical connection performance on the busbar.
How does the LI trip unit operate on the KAB36225?
The LI designation stands for Long-Time and Instantaneous protection. The thermal element provides fixed Long-Time protection against sustained overloads, while the magnetic element is adjustable, allowing you to set the specific Instantaneous trip threshold for short circuits.
Which panelboards are compatible with the KAB36225?
This breaker is designed exclusively for use in Square D I-Line panelboards and I-Line switchboards. It will not fit in standard QO, Homeline, or NQ/NF series panels.
