Square D KAL26100 Molded Case Circuit Breaker
- 100A
- 2 Pole
- Unit Mount
Square D
KAL26100
Molded Case Circuit Breaker
Brand
Square D
SKU
KAL26100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

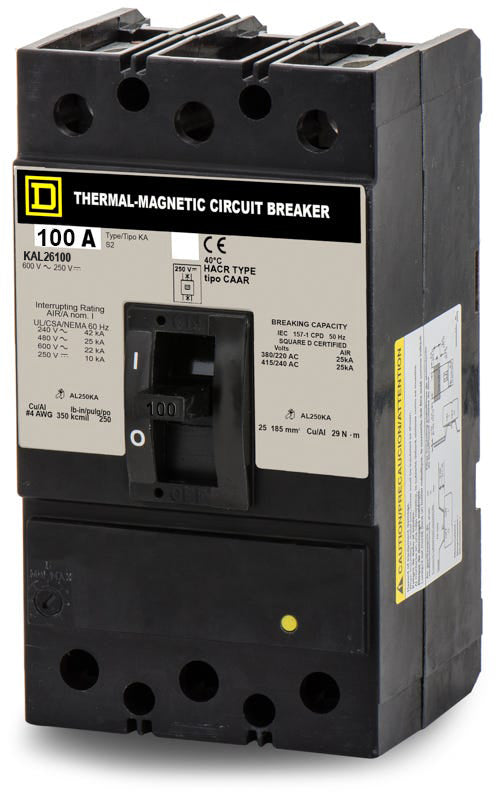

Square D KAL26100 - 100A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D KAL26100 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | KAL26100 |
| Series | KAL |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Enclosures, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip, Trip-Free Mechanism |
Quantity
Square D KAL26100 - 100A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | KAL |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Enclosures, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip, Trip-Free Mechanism |
Similar Items
70A 2 Pole Molded Case Circuit Breaker
175A 2 Pole Molded Case Circuit Breaker
200A 2 Pole Molded Case Circuit Breaker
Description
Serving industrial and commercial power distribution needs, this 100A K-Frame unit delivers reliable long-time and instantaneous protection. The thermal-magnetic design ensures consistent performance across demanding electrical environments. It mounts into legacy Square D switchboards, individual enclosures, and motor control centers. For modern upgrades, this specific profile has been superseded by the PowerPacT HJL26100 series. Featuring a 25kAIC rating at 480VAC, it handles faults safely.Specifications
| Brand | Square D |
|---|---|
| Series | KAL |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Enclosures, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip, Trip-Free Mechanism |
Product FAQs
7 answersWhat equipment is the KAL26100 compatible with?
This unit-mount breaker is designed for use in legacy Square D switchboards, motor control centers, and individual enclosures that accept K-Frame breakers.
What is the standard lug kit for the KAL26100?
The standard mechanical lug kit is the AL250KA, which accepts 4 AWG to 350 kcmil aluminum or copper wire.
How does the trip unit on the KAL26100 operate?
It features a thermal-magnetic trip unit with a fixed thermal element for overload protection and an adjustable magnetic element, allowing you to set the instantaneous short-circuit trip threshold.
Is the Square D KAL26100 still in active production?
The KAL series is a legacy K-Frame breaker. While exact replacements depend on your panel mounting hardware, Square D officially transitioned this series to the modern PowerPact H-Frame and J-Frame families.
Can the KAL26100 be reverse fed?
Yes, standard thermal-magnetic KAL breakers can be back-fed because they are not marked with line and load restrictions. However, if equipped with a ground-fault module, reverse feeding is not permitted.
Can this breaker be used in DC applications?
Yes, the KAL26100 is rated for up to 250VDC with a 10kA interrupting capacity, making it suitable for specific direct current systems.
What does the feed-thru connection type mean for installation?
A feed-thru, or unit-mount, configuration means the breaker bolts directly to the mounting surface or enclosure backpan rather than plugging into a busbar. Both the line and load sides require wired lug connections.
