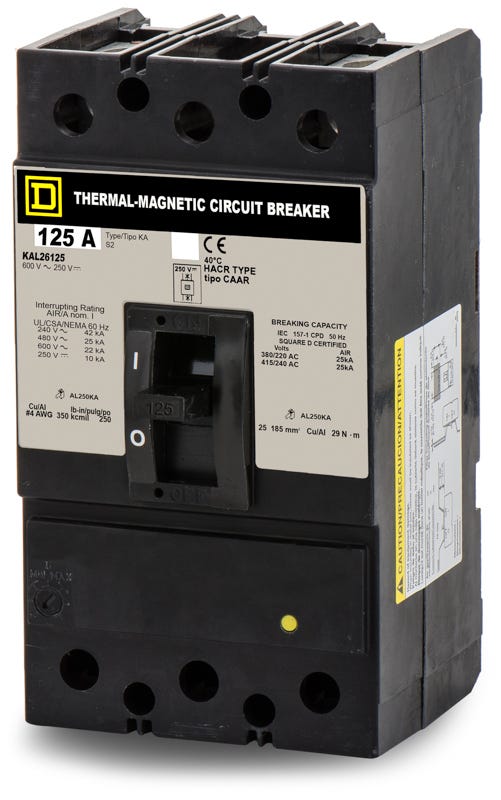

Square D KAL26125 Molded Case Circuit Breaker
- 125A
- 2 Pole
- Unit Mount
Square D
KAL26125
Molded Case Circuit Breaker
Brand
Square D
SKU
KAL26125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D KAL26125 - 125A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D KAL26125 - 125A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | KAL26125-R |
| Series | KAL |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Trip-Free Mechanism, Common Trip |
Sold out
Quantity
Square D KAL26125 - 125A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | KAL26125-R |
| Series | KAL |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Trip-Free Mechanism, Common Trip |
Similar Items
175A 2 Pole Molded Case Circuit Breaker
70A 2 Pole Molded Case Circuit Breaker
200A 2 Pole Molded Case Circuit Breaker
Description
Operating as a core component in commercial power systems, this 125A molded case breaker delivers dependable thermal-magnetic protection. The rugged construction withstands the demands of continuous industrial applications. This unit-mount device installs into legacy Square D switchboards, motor control centers, and specific equipment enclosures. When planning system upgrades, engineers typically replace this frame with the PowerPacT HGL26125 model. The adjustable magnetic trip adds flexibility.Specifications
| Brand | Square D |
|---|---|
| Part Number | KAL26125-R |
| Series | KAL |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Trip-Free Mechanism, Common Trip |
Product FAQs
6 answersWhat equipment is the KAL26125 designed to be installed in?
This legacy K-frame breaker is engineered for unit-mount applications in older Square D switchboards, motor control centers, and specific equipment enclosures. It bolts directly to the chassis and uses feed-thru lugs, meaning it will not plug onto I-Line panelboard busbars.
What is the recommended modern replacement for the KAL26125?
For system upgrades or replacing obsolete units, the modern equivalent is the Square D PowerPact H-frame series. The HGL26125 is a common replacement that provides matching amperage and higher interrupting ratings.
What are the wire size requirements for the KAL26125 terminals?
The standard feed-thru lugs accommodate both aluminum and copper conductors ranging from 4 AWG to 350 kcmil. Ensure proper torque specifications are followed during installation to prevent terminal overheating.
How does the trip unit function on the KAL26125?
It utilizes a thermal-magnetic trip unit with a fixed thermal element for long-time overload protection and an adjustable magnetic element, allowing electricians to fine-tune the instantaneous short-circuit response.
Is the KAL26125 suitable for direct current applications?
Yes, in addition to its AC ratings, this breaker is certified for 250VDC systems with a 10kA interrupting capacity, making it suitable for specific industrial DC control circuits.
What safety precautions should be taken before adjusting the magnetic trip settings?
Always de-energize the circuit breaker and verify that power is disconnected before modifying the adjustable magnetic trip settings. Adjustments should only be made by qualified personnel based on a proper coordination study.
