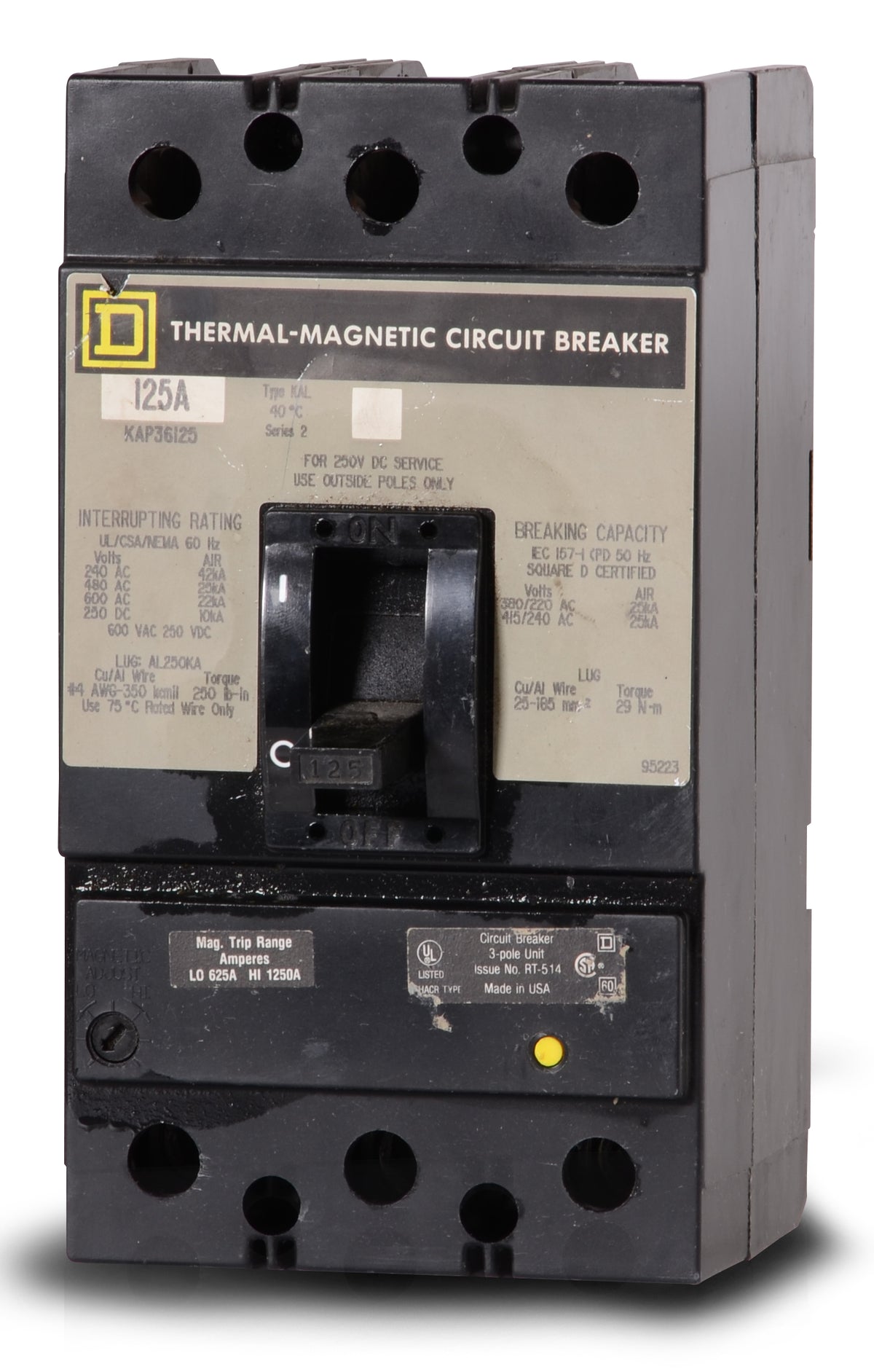

Square D KAP36125 Molded Case Circuit Breaker
- 125A
- 3 Pole
- Bolt-On
Square D
KAP36125
Molded Case Circuit Breaker
Brand
Square D
SKU
KAP36125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D KAP36125 - 125A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
125A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial applications, the Square D KAP36125 is a 3-pole, 125A molded case circuit breaker. It belongs to the legacy K-Frame family, providing dependable protection for heavy-duty electrical systems. This bolt-on MCCB installs into compatible Square D panelboards and switchboards. As a discontinued model, it serves as an exact replacement for existing setups, while modern upgrades require the PowerPacT J-Frame. Rated at 25kAIC at 480VAC, it features an adjustable magnetic trip.Specifications
| Brand | Square D |
|---|---|
| Part Number | KAP36125 |
| Series | KAP |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Visual Trip Indicator |
Product FAQs
6 answersWhat equipment is the KAP36125 compatible with?
It is designed for use in legacy Square D panelboards and switchboards that accept bolt-on K-Frame circuit breakers.
What is the difference between the KAP36125 and KAL36125?
Both are 125A, 3-pole K-Frame breakers. The KAP36125 comes factory-equipped with line and load lugs for feed-thru applications. Standard KAL breakers often connect directly to a busbar on the line side and may require separate lug kits depending on the mounting configuration.
Is the KAP36125 still manufactured?
The KAP36125 is a discontinued legacy K-Frame breaker. For modern upgrades or new installations, Square D recommends transitioning to the PowerPact series, which may require panel modifications or retrofit kits.
Can I add a shunt trip to the KAP36125?
Yes, field-installable accessories like the Square D KA11021 shunt trip (120 to 240VAC) are compatible with KAP and KAL frame breakers for remote tripping applications.
What does the LI trip function mean on this breaker?
LI stands for Long-Time and Instantaneous trip functions. It features a fixed thermal element for standard overload protection and an adjustable magnetic element for short-circuit protection, allowing electricians to fine-tune the instantaneous trip point based on the load.
How does a feed-thru connection work on the KAP36125?
A feed-thru connection means the breaker is equipped with lugs on both the line and load sides. This allows it to be wired directly into a system using cables without requiring a specialized busbar connection, making it ideal for standalone enclosures or specific switchboard configurations.
