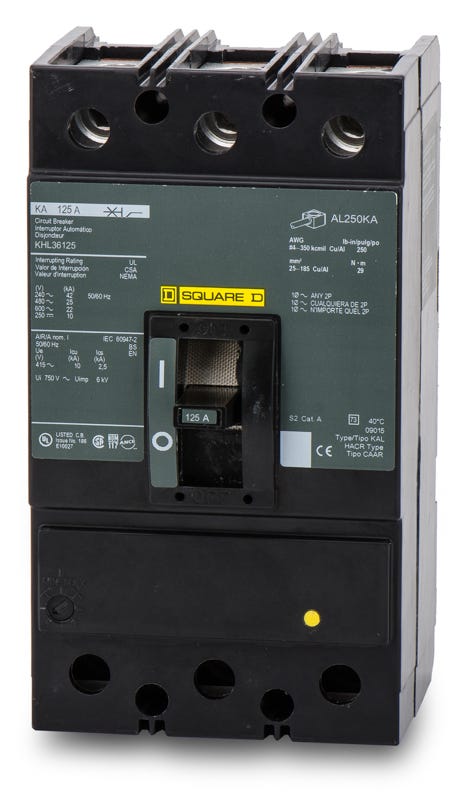

Square D KHL36125 Molded Case Circuit Breaker
- 125A
- 3 Pole
- Unit Mount
Square D
KHL36125
Molded Case Circuit Breaker
Brand
Square D
SKU
KHL36125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D KHL36125 - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D KHL36125 - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | KHL36125 |
| Series | KHL |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KHL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs (AL250KA) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, HACR Rated |
Quantity
Square D KHL36125 - 125A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | KHL36125-R |
| Series | KHL |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KHL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs (AL250KA) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, HACR Rated |
Similar Items
150A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
Description
A dependable choice for industrial facilities, the Square D KHL36125 is a 125A, 3-pole molded case circuit breaker. It mounts into standard Square D enclosures, switchboards, and motor control centers to deliver long-time and instantaneous (LI) trip functions. This legacy K-Frame breaker features adjustable magnetic trip settings and a high interrupting capacity of 35kAIC at 480VAC. For modern upgrades, this unit is officially replaced by the newer PowerPacT J-Frame (JGL36125) series.Specifications
| Brand | Square D |
|---|---|
| Part Number | KHL36125 |
| Series | KHL |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KHL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs (AL250KA) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, HACR Rated |
Product FAQs
6 answersWhat type of mounting does the KHL36125 use?
The KHL36125 is a unit-mount, feed-thru circuit breaker. It is designed to be bolted directly to a backpan or mounting bracket and uses lug-to-lug wire connections, rather than plugging into an I-Line bus.
What is the magnetic trip adjustment range for this breaker?
The KHL36125 features an adjustable magnetic (instantaneous) trip range of 625A to 1250A. The thermal (long-time) trip is fixed at 125A.
Which standard lug kit is used on the KHL36125?
This legacy K-Frame breaker typically uses the AL250KA mechanical lug kit. These lugs accept one 4 AWG to 350 kcmil aluminum or copper conductor per phase.
Is the KHL36125 still in active production?
The KHL series is a legacy K-Frame breaker. For modern upgrades and new installations, Schneider Electric replaces this footprint with the PowerPact H-Frame (such as the HDL36125) or J-Frame (such as the JGL36125) series, depending on your specific enclosure and mounting requirements.
Can the KHL36125 be reverse fed?
Yes, standard thermal-magnetic K-Frame breakers like the KHL36125 do not have line and load side restrictions and can be safely reverse fed if required by your panel configuration.
What enclosures are compatible with the KHL36125?
This unit-mount breaker is designed for use in standard Square D individual enclosures, switchboards, and motor control centers that are built to accommodate the legacy K-Frame footprint.
