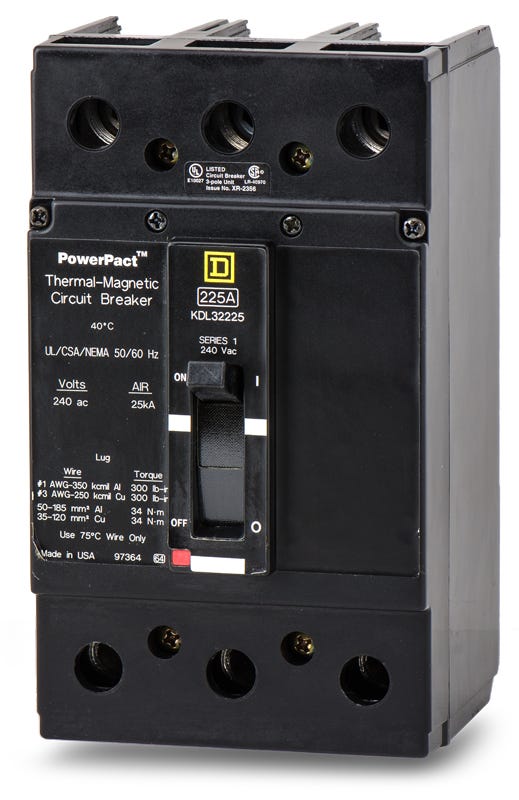

Square D KDL32225 Molded Case Circuit Breaker
- 225A
- 3 Pole
- Unit Mount
Square D
KDL32225
Molded Case Circuit Breaker
Brand
Square D
SKU
KDL32225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D KDL32225 - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D KDL32225 - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | KDL32225 |
| Series | KDL |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC |
| Frame Type | KDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D QO 3-Phase Load Centers, Square D Enclosures, Switchboards |
| Wire Gauge | 6 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Quantity
Square D KDL32225 - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | KDL32225 |
| Series | KDL |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC |
| Frame Type | KDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D QO 3-Phase Load Centers, Square D Enclosures, Switchboards |
| Wire Gauge | 6 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Similar Items
200A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial applications, the KDL32225 is a 3-pole, 225A molded case circuit breaker from Square D's legacy K-Frame lineup. It features a feed-thru connection with line and load lugs for versatile power distribution. This unit-mount breaker installs into Square D enclosures, switchboards, and 3-phase QO load centers. It serves as a functional substitute for QDL32225 configurations. Rated 25kAIC at 240VAC, it utilizes fixed thermal and magnetic trip elements for LI protection.Specifications
| Brand | Square D |
|---|---|
| Part Number | KDL32225 |
| Series | KDL |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC |
| Frame Type | KDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D QO 3-Phase Load Centers, Square D Enclosures, Switchboards |
| Wire Gauge | 6 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
8 answersWhat equipment is compatible with the KDL32225 circuit breaker?
This unit-mount breaker is designed for installation in Square D enclosures, switchboards, and compatible 3-phase QO load centers that accept K-frame main breakers.
How does the feed-thru connection type affect installation?
As a feed-thru, unit-mount breaker, it bolts directly to the backpan of an enclosure or switchboard and uses wire lugs on both the line and load sides, rather than plugging into a busbar.
What wire sizes and materials are supported by the KDL32225 lugs?
The factory-installed lugs are dual-rated for both aluminum and copper conductors, accepting wire sizes from 6 AWG up to 350 kcmil.
How does the thermal-magnetic trip unit function on this breaker?
The fixed thermal-magnetic trip unit provides Long-Time (L) protection for gradual overloads and Instantaneous (I) protection for immediate short circuits. Both the thermal and magnetic trip points are fixed and non-adjustable.
What does the 25kAIC rating signify for this K-frame breaker?
The 25kAIC (Amps Interrupting Capacity) rating means the breaker can safely interrupt up to 25,000 amps of fault current at 240V AC, protecting downstream equipment from severe short circuits.
Can the KDL32225 be used to replace a QDL32225?
Yes, it serves as a functional substitute for QDL32225 configurations in many applications, providing the same 225A capacity and 25kAIC rating at 240V AC.
Can this breaker be installed in a 480V or 600V system?
No, the KDL32225 is strictly rated for a maximum of 240V AC. Installing it in higher voltage systems violates its UL listing and safety ratings.
Does the KDL32225 include ground-fault or arc-fault protection?
No, this is a standard thermal-magnetic breaker designed solely for overcurrent and short-circuit protection. It does not contain GFCI or AFCI circuitry.
