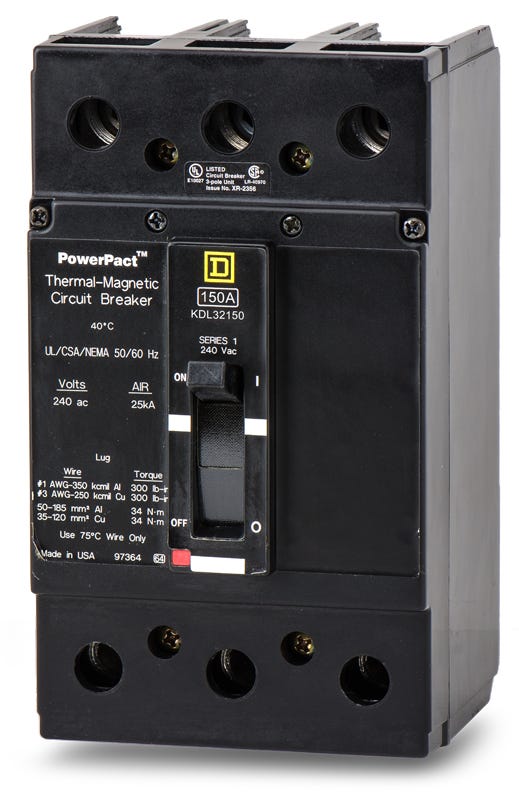

Square D KDL32150 Molded Case Circuit Breaker
- 150A
- 3 Pole
- Unit Mount
Square D
KDL32150
Molded Case Circuit Breaker
Brand
Square D
SKU
KDL32150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D KDL32150 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D KDL32150 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | KDL32150 |
| Series | KDL |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC |
| Frame Type | KDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D QO 3-Phase Load Centers, Square D Enclosures, Switchboards |
| Wire Gauge | 6 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Quantity
Square D KDL32150 - 150A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | KDL32150 |
| Series | KDL |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC |
| Frame Type | KDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D QO 3-Phase Load Centers, Square D Enclosures, Switchboards |
| Wire Gauge | 6 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Similar Items
200A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
Description
Designed for commercial power systems, the Square D KDL32150 is a 150A molded case circuit breaker built for 3-phase distribution. It features a thermal-magnetic trip unit for reliable long-time and instantaneous (LI) protection. This unit-mount breaker utilizes a feed-thru connection, installing seamlessly into Square D QO 3-phase load centers and switchboards. It serves as a 25kAIC upgrade to the standard QDL32150. The HACR-rated breaker includes lugs accepting 6 AWG to 350 kcmil wiring.Specifications
| Brand | Square D |
|---|---|
| Part Number | KDL32150 |
| Series | KDL |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC |
| Frame Type | KDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D QO 3-Phase Load Centers, Square D Enclosures, Switchboards |
| Wire Gauge | 6 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
6 answersHow does the KDL32150 mount into compatible equipment?
This is a unit-mount circuit breaker with a feed-thru connection. It secures directly to Square D QO 3-phase load centers, enclosures, and switchboards using line and load lugs, rather than plugging onto a bus bar.
Does the KDL32150 have adjustable trip settings?
No, this breaker utilizes a thermal-magnetic trip unit with fixed thermal and fixed magnetic settings for long-time and instantaneous (LI) protection.
Is the Square D KDL32150 still in active production?
No, the KDL frame is a legacy molded case circuit breaker that is no longer manufactured by Schneider Electric. It is typically sourced as an exact replacement part to maintain existing electrical systems.
Can I use a KGL breaker to replace a KDL breaker?
Yes, the KGL series is the higher-interrupting counterpart to the KDL series. A KGL32150 has the same physical dimensions and mounting but offers a higher interrupting rating of 65kAIC at 240V, compared to the 25kAIC rating of the KDL32150.
What is the difference between the KDL32150 and QDL32150?
While both are 150A, 3-pole, 240V breakers with a 25kAIC rating, they belong to different frame families (K-frame vs. Q-frame) and have different physical dimensions. The KDL32150 is often used as a heavy-duty upgrade to the standard QDL32150 in compatible switchboards and enclosures.
Is the KDL32150 HACR rated?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment.
