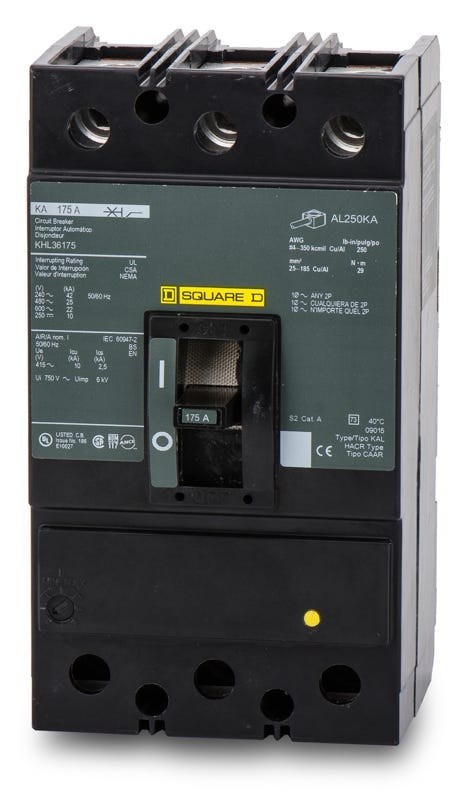

Square D KHP36175 Molded Case Circuit Breaker
- 175A
- 3 Pole
- Bolt-On
Square D
KHP36175
Molded Case Circuit Breaker
Brand
Square D
SKU
KHP36175
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D KHP36175 - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
175A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty commercial applications, this 175A three-pole breaker delivers dependable long-time and instantaneous trip functions. It is designed to handle up to 600VAC and 250VDC in industrial environments. The bolt-on device integrates seamlessly with Square D switchboards, enclosures, and motor control centers. While this K-Frame model is a legacy component, it can be replaced by the PowerPacT JGL36175. It features an adjustable magnetic trip and a 35kAIC rating at 480V.Specifications
| Brand | Square D |
|---|---|
| Part Number | KHP36175 |
| Series | KHP |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Switchboards, Enclosures, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Includes AL250KA Mechanical Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
5 answersWhat type of panels or equipment is the KHP36175 compatible with?
The KHP36175 is a bolt-on unit mount circuit breaker designed for use in Square D switchboards, industrial enclosures, and motor control centers. It does not fit I-Line panelboards, which require a plug-on mounting style.
Is the Square D KHP36175 still manufactured, or is there a modern replacement?
The KHP36175 is a legacy K-frame circuit breaker. For new installations or direct replacements, Square D recommends the PowerPact J-frame series, specifically the JGL36175, which shares the same 175A rating, 3-pole configuration, and 35kA at 480V interrupting capacity.
What wire sizes and materials are accepted by the lugs on the KHP36175?
The standard lugs on this breaker accept wire gauges from 4 AWG up to 350 kcmil. They are rated for use with both aluminum and copper (Al/Cu) conductors.
What does the LI trip function code mean on this breaker?
The LI designation indicates that the thermal-magnetic trip unit provides Long-Time (L) and Instantaneous (I) protection. The thermal element provides fixed long-time overload protection, while the magnetic element can be adjusted to set the instantaneous short-circuit trip threshold.
Can the KHP36175 be used in DC applications?
Yes, in addition to its 600VAC rating, this breaker is rated for up to 250VDC with an interrupting capacity of 10kA, making it suitable for select industrial DC control and distribution circuits.
