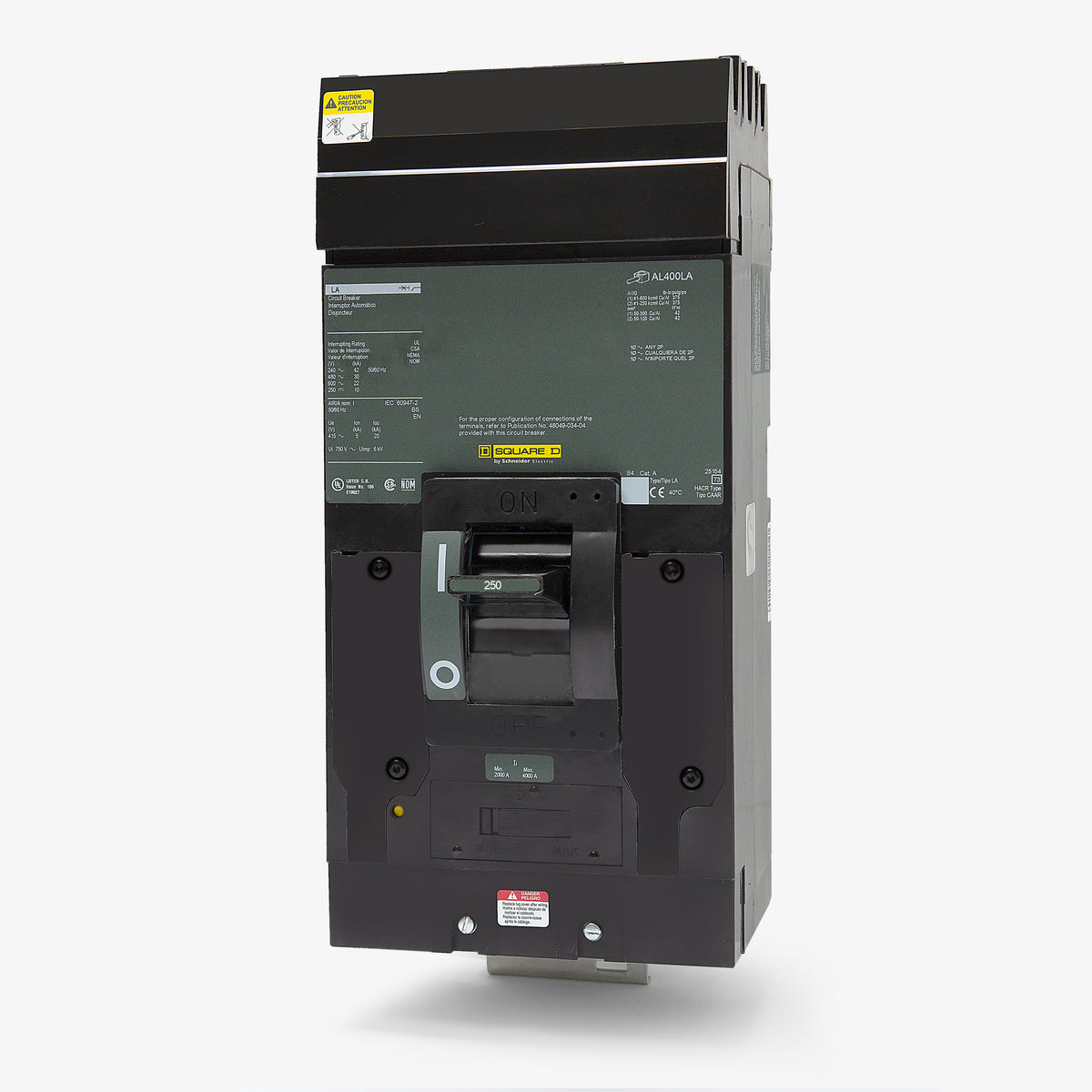

Square D LA36250 Molded Case Circuit Breaker
- 250A
- 3 Pole
- I-Line
Square D
LA36250
Molded Case Circuit Breaker
Brand
Square D
SKU
LA36250
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D LA36250 - 250A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D LA36250 - 250A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | LA36250 |
| Series | LA |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | LA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 1 AWG-600 kcmil (Al/Cu) or (2) 1 AWG-250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line Side Panel Connectors, Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D LA36250 - 250A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | LA36250-R |
| Series | LA |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | LA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 1 AWG-600 kcmil (Al/Cu) or (2) 1 AWG-250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line Side Panel Connectors, Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
300A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
Description
Serving as a robust feeder disconnect, this 250A thermal-magnetic device delivers essential LI protection for commercial facilities. The classic L-frame construction ensures long-lasting durability in demanding environments. The plug-on jaw design installs seamlessly into standard Square D I-Line distribution panels and switchboards. Facilities looking to modernize can transition to the newer PowerPacT J-frame (JJA36250) equivalent. Equipped with a Visi-Trip indicator, it handles 30kA at 480V.Specifications
| Brand | Square D |
|---|---|
| Part Number | LA36250 |
| Series | LA |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | LA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 1 AWG-600 kcmil (Al/Cu) or (2) 1 AWG-250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line Side Panel Connectors, Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat panelboards and switchboards accept the LA36250?

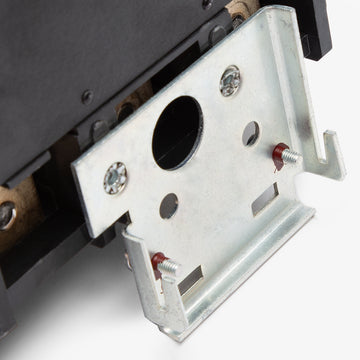

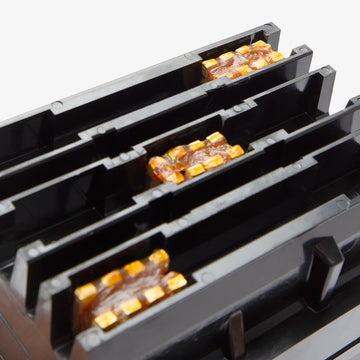

The Square D LA36250 is designed exclusively for use in Square D I-Line panelboards and switchboards. Its plug-in style connection mounts directly to the proprietary I-Line busbar system.
What is the magnetic trip adjustment range for this 250A breaker?
The LA36250 features an adjustable magnetic, or instantaneous, trip function with a range from 1250A on the low setting to 2500A on the high setting. The thermal overload trip remains fixed at 250 amps.
What wire sizes and configurations are supported by the lugs on the LA36250?
The factory lugs accept a single conductor from 1 AWG to 600 kcmil, or two parallel conductors ranging from 1 AWG to 250 kcmil. The terminals are rated for both aluminum and copper wiring.
Does the LA36250 carry a direct current interrupting rating?
Yes. While typically used in alternating current systems up to 600VAC, this breaker is also rated for 250VDC applications. It delivers a maximum interrupting capacity of 10kAIC at 250VDC.
What does the LI trip function code indicate on this specific L-Frame breaker?
The LI code signifies that the thermal magnetic trip unit provides standard Long-Time overload protection and Instantaneous short-circuit protection. It does not include Short-Time delay or Equipment Ground Fault protection functions.
Is the LA36250 considered a legacy circuit breaker?
Yes, the LA36250 is part of the legacy Square D L-Frame molded case circuit breaker family. These breakers remain in service for existing I-Line installations, though modern system upgrades typically transition to the current PowerPact series.
