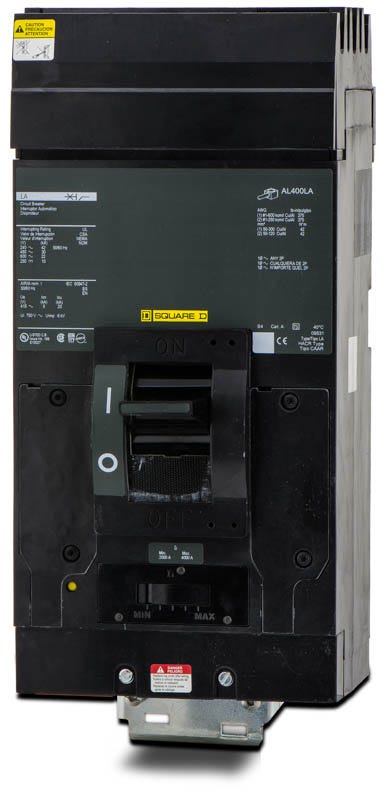

Square D LA36200 Molded Case Circuit Breaker
- 200A
- 3 Pole
- I-Line
Square D
LA36200
Molded Case Circuit Breaker
Brand
Square D
SKU
LA36200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

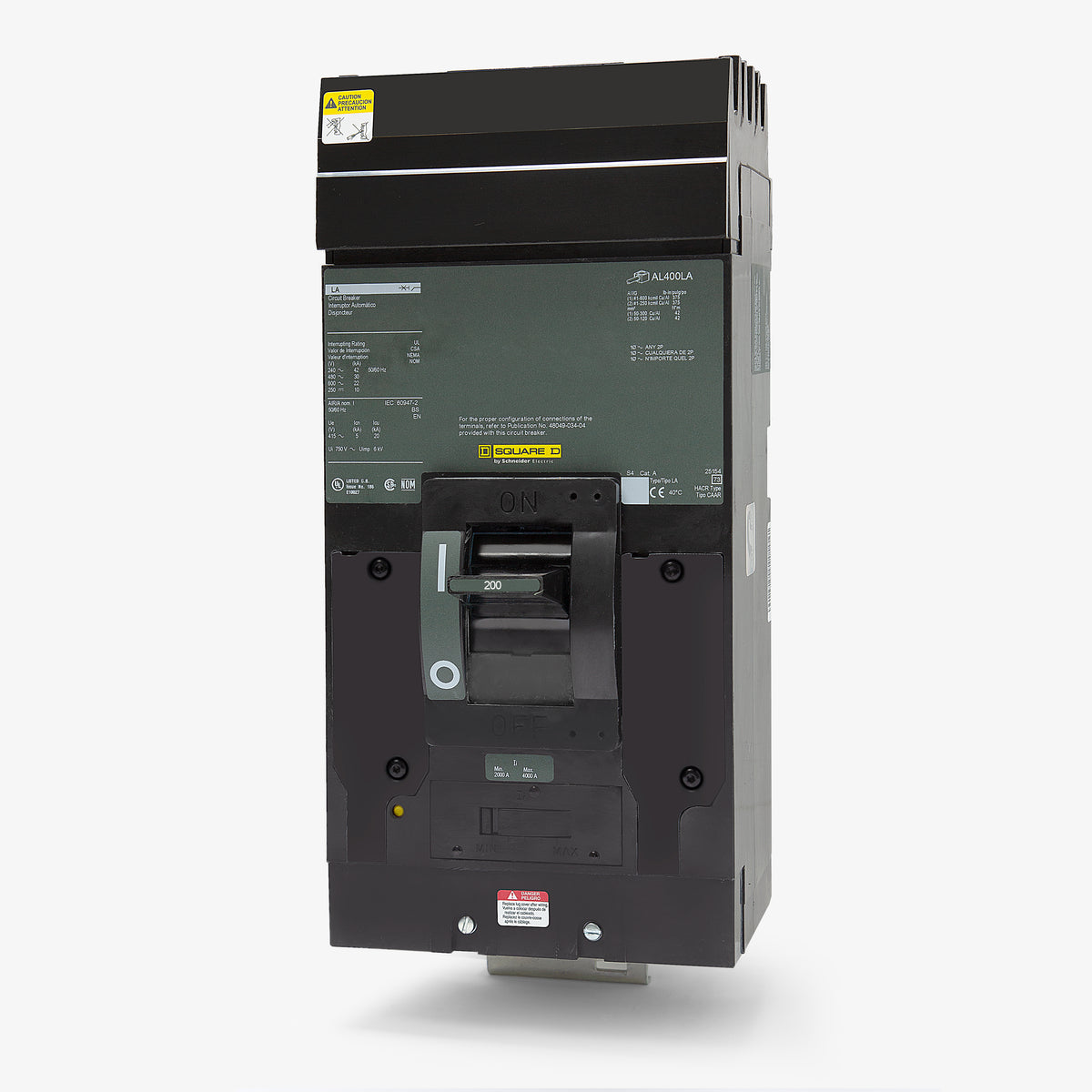

Square D LA36200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D LA36200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | LA36200 |
| Series | LA |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | LA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | (1) 1 AWG - 600 kcmil (Al/Cu) or (2) 1 AWG - 250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D LA36200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | LA36200-R |
| Series | LA |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | LA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | (1) 1 AWG - 600 kcmil (Al/Cu) or (2) 1 AWG - 250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
175A 3 Pole Molded Case Circuit Breaker
250A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial power distribution, the Square D LA36200 provides robust 200A overcurrent protection. This 3-pole molded case circuit breaker features a thermal-magnetic trip unit with an adjustable magnetic setting for precise coordination. It installs into Square D I-Line panelboards and switchboards, utilizing a plug-on connection for rapid deployment. Rated at 30 kAIC at 480VAC, it serves as a reliable solution before upgrading to the PowerPacT J-Frame series.Specifications
| Brand | Square D |
|---|---|
| Part Number | LA36200 |
| Series | LA |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | LA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | (1) 1 AWG - 600 kcmil (Al/Cu) or (2) 1 AWG - 250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersCan this breaker be installed in standard NQ or NF panelboards?
No. It is engineered exclusively for Square D I-Line power distribution panelboards and switchboards. It will not fit in standard NQ or NF lighting panels unless they are built as an I-Line combo panelboard featuring a dedicated I-Line power section.
Which side of the breaker utilizes the mechanical wire lugs?

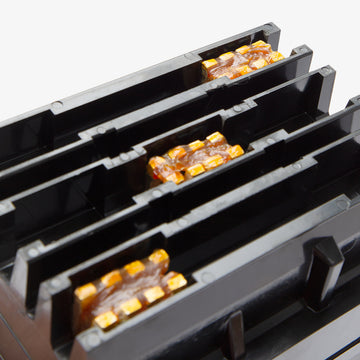

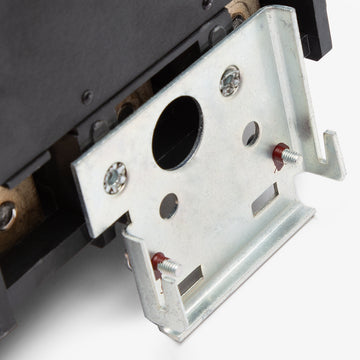

On I-Line circuit breakers, the line side connects directly to the panelboard bus via a factory-installed plug-on jaw assembly. The mechanical wire lugs are located exclusively on the load side for your outgoing field connections.
What is the magnetic trip adjustment range for this breaker?
The instantaneous magnetic trip function can be adjusted using a dial on the breaker face, featuring a low setting of 1000A and a high setting of 2000A to assist with selective coordination.
Is the LA-frame circuit breaker series still in active production?
The LA frame is a legacy product line that has been phased out by Schneider Electric. For new installations or direct 200A I-Line replacements, the Square D PowerPacT J-Frame is the current generation equivalent.
Can I use a modern PowerPacT L-Frame breaker to replace this 200A unit?
No. While both utilize the I-Line mounting standard, the modern PowerPacT L-Frame series starts at a minimum of 250A. To directly replace a 200A LA-frame breaker, you must use a PowerPacT J-Frame unit, which covers the 150A to 250A range.
Can I coordinate this breaker using a Micrologic electronic trip unit?
No. The LA36200 relies on traditional thermal-magnetic trip technology. It features a fixed thermal element and an adjustable magnetic element, and it cannot be upgraded or retrofitted with a Micrologic electronic trip unit.
