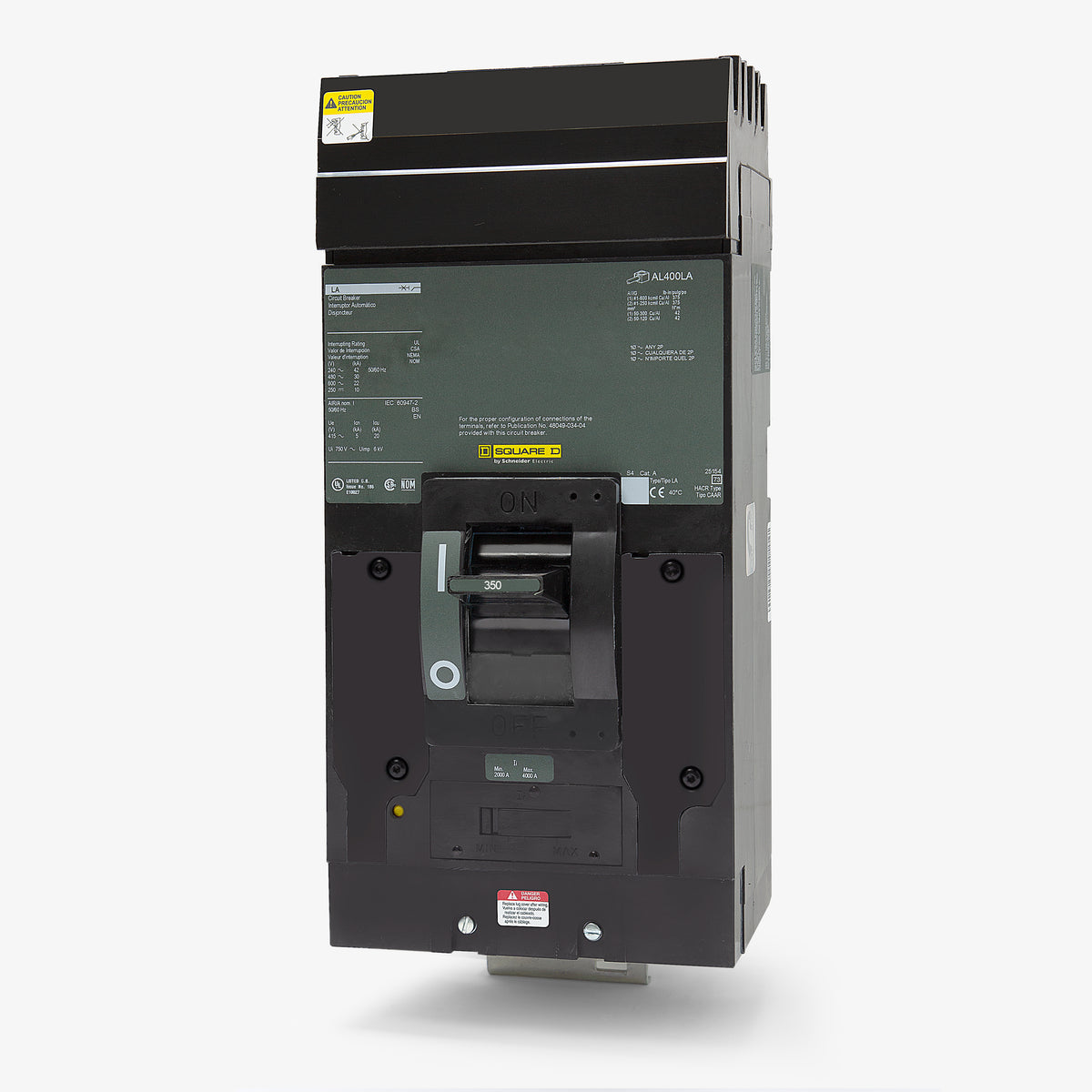

Square D LA36350 Molded Case Circuit Breaker
- 350A
- 3 Pole
- I-Line
Square D
LA36350
Molded Case Circuit Breaker
Brand
Square D
SKU
LA36350
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D LA36350 - 350A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D LA36350 - 350A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Series | LA |
| Amperage | 350A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | LA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 1 AWG-600 kcmil (Al/Cu) or (2) 1 AWG-250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs (Load Side) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D LA36350 - 350A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | LA |
| Amperage | 350A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | LA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 1 AWG-600 kcmil (Al/Cu) or (2) 1 AWG-250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs (Load Side) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
300A 3 Pole Molded Case Circuit Breaker
250A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
Description
Part of the legacy L-Frame family, this 350A molded case circuit breaker delivers robust long-time and instantaneous trip functions for industrial environments. It installs into standard Square D I-Line panelboards and switchboards, utilizing a plug-on design for rapid deployment. Featuring an adjustable magnetic trip and a 30kAIC rating at 480VAC, it is an exact fit for existing commercial infrastructure. Note that this unit is replaced by the PowerPacT LJA36350U31X in newer installations.Specifications
| Brand | Square D |
|---|---|
| Series | LA |
| Amperage | 350A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | LA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 1 AWG-600 kcmil (Al/Cu) or (2) 1 AWG-250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs (Load Side) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
5 answersWhat type of panelboard accepts the Square D LA36350?

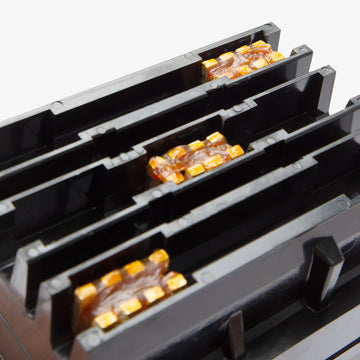

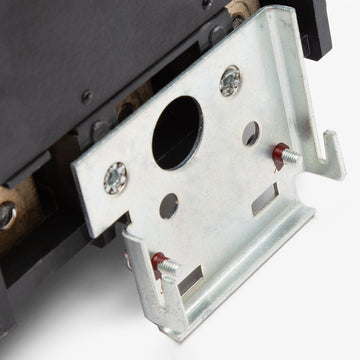

This breaker is built with an I-Line plug-in mounting style on the line side, meaning it will only fit into Square D I-Line panelboards and switchboards. It cannot be used in standard load centers or unit-mount applications.
What is the difference between the LA36350 and LAL36350 breakers?
Both are 350-amp, L-frame circuit breakers, but they have different mounting configurations. The LA36350 features an I-Line plug-in connection for I-Line panels, whereas the LAL36350 is a unit-mount (lug-to-lug) breaker designed for individual enclosures or standard configurations.
What size wire can I use with the standard lugs on this breaker?
The included load-side lugs accept either a single 1 AWG to 600 kcmil conductor or two 1 AWG to 250 kcmil conductors per phase. They are rated for both aluminum and copper (Al/Cu) wiring.
Are the trip settings on the LA36350 adjustable?
The thermal protection (Long-Time) is fixed at 350 amps, but the magnetic trip (Instantaneous) is adjustable. This allows you to fine-tune the breaker's response to short circuits without affecting standard overload protection.
What is the high-interrupting alternative to the LA36350?
If your electrical system requires a higher short-circuit interrupting rating, the LH36350 is the direct high-interrupting upgrade for this I-Line L-frame breaker.
