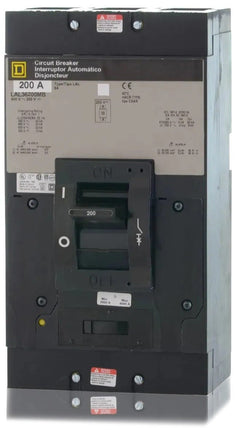

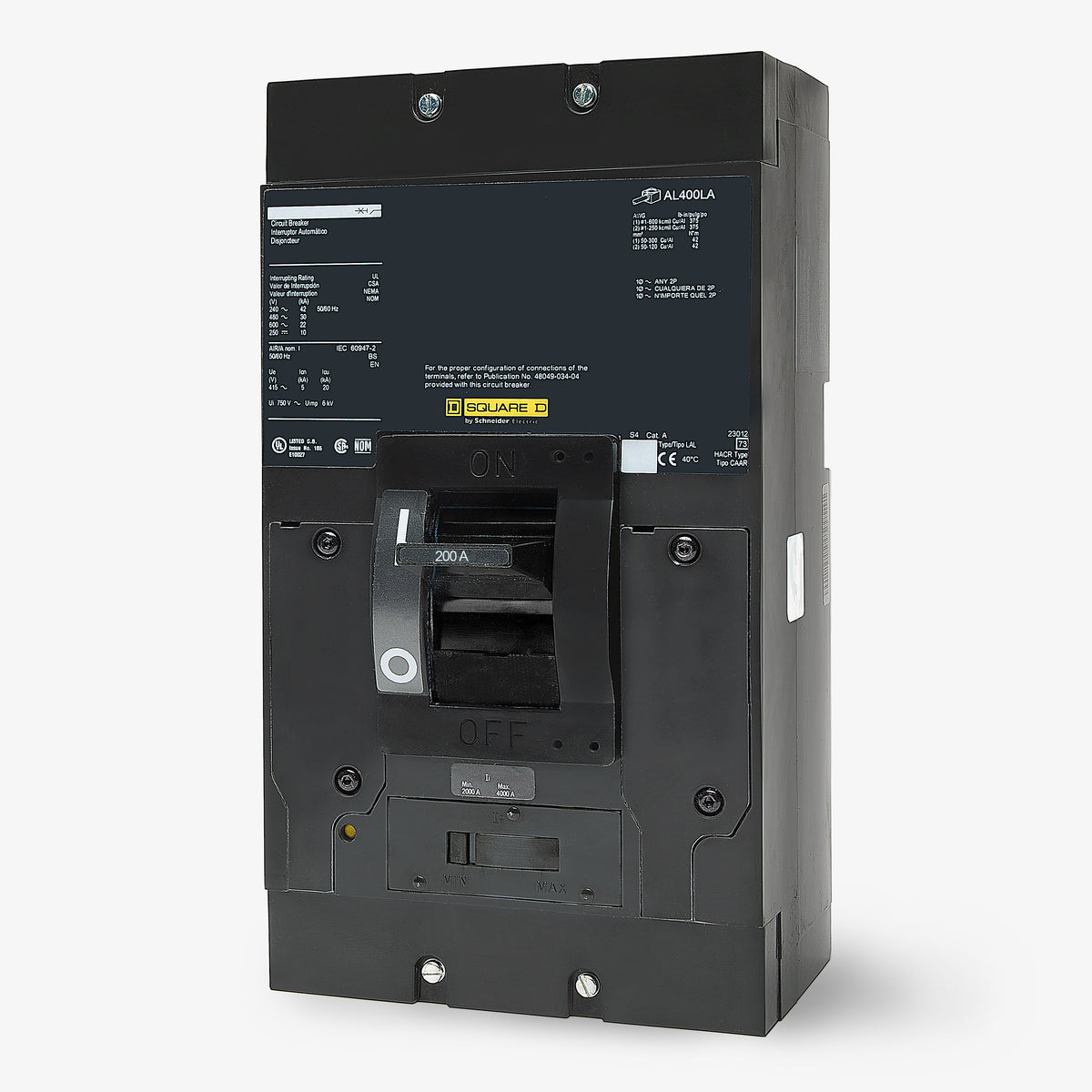

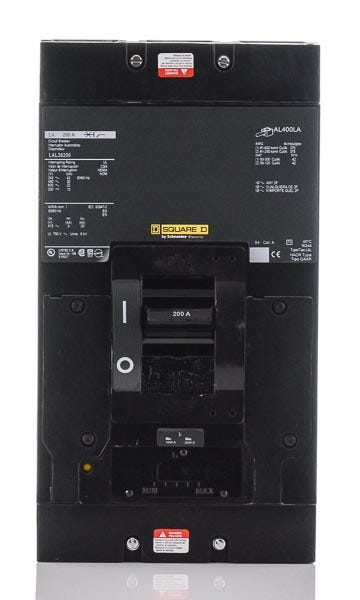

Square D LAL36200 Molded Case Circuit Breaker
- 200A
- 3 Pole
- Unit Mount
Square D
LAL36200
Molded Case Circuit Breaker
Brand
Square D
SKU
LAL36200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D LAL36200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D LAL36200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | LAL36200 |
| Series | LAL |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | LAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Industrial Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | (1) 1 AWG-600 kcmil (Al/Cu) or (2) 1 AWG-250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D LAL36200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | LAL36200-R |
| Series | LAL |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | LAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Industrial Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | (1) 1 AWG-600 kcmil (Al/Cu) or (2) 1 AWG-250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
225A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
250A 3 Pole Molded Case Circuit Breaker
Description
Designed to handle demanding loads, the Square D LAL36200 is a 200A, 3-pole MCCB. It provides essential thermal-magnetic protection for industrial power systems. This unit mount breaker installs into Square D enclosures and switchboards. As a legacy L-Frame device, it maintains existing equipment and is replaced by the LJL36200. Rated for 600VAC, it achieves a 30kA capacity at 480V. The adjustable magnetic trip allows for precise coordination, and it is fully HACR rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | LAL36200 |
| Series | LAL |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | LAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Industrial Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | (1) 1 AWG-600 kcmil (Al/Cu) or (2) 1 AWG-250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat wire sizes do the standard lugs on the LAL36200 accept?

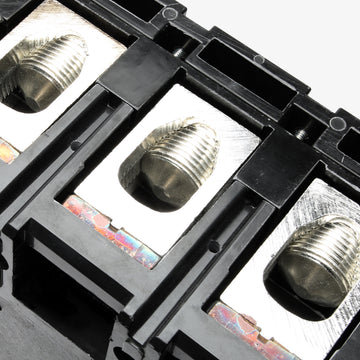

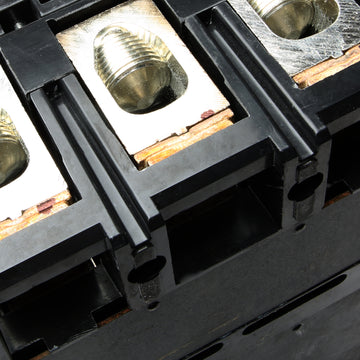

The standard AL400LA lugs accept either a single wire from 1 AWG to 600 kcmil, or two wires from 1 AWG to 250 kcmil. These lugs are compatible with both aluminum and copper conductors.
What is the recommended tightening torque for the standard LAL36200 lugs?
The tightening torque for the standard AL400LA unit-mount lugs is 115 lbf-in (13 N.m) for both single-wire and dual-wire configurations.
What is the magnetic trip adjustment range for the 200A LAL36200?
The adjustable magnetic trip on the 200-amp LAL36200 can be set between a low of 1000A and a high of 2000A.
Is the LAL36200 part of an active product line, or has it been replaced?
The LAL frame is a legacy molded case circuit breaker. For applications requiring modern capabilities or field-installable internal accessories, Schneider Electric recommends crossing to the PowerPacT J-Frame or L-Frame series.
What is the difference between the LAL36200 and the LHL36200?
Both are 200-amp, 3-pole legacy LA-frame breakers, but they have different interrupting capacities. The LAL36200 is standard-interrupting, while the LHL36200 is the high-interrupting version.
What type of equipment is the LAL36200 designed to be installed in?

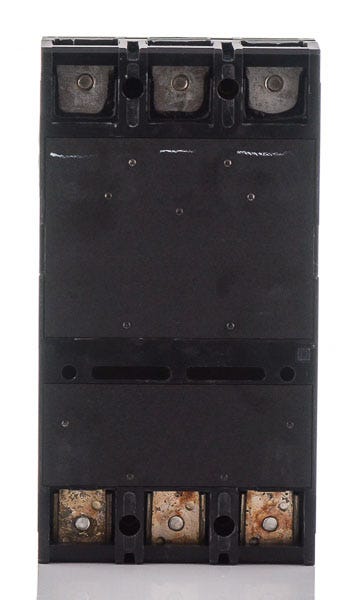

As a unit-mount circuit breaker, the LAL36200 is designed to be fastened directly to a backpan using its feed-thru lugs. It is commonly used in Square D industrial enclosures, switchboards, and motor control centers.
