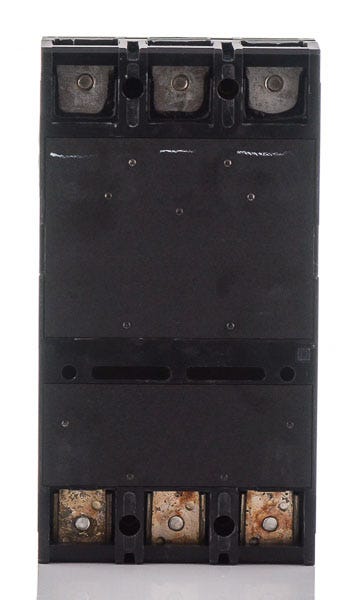

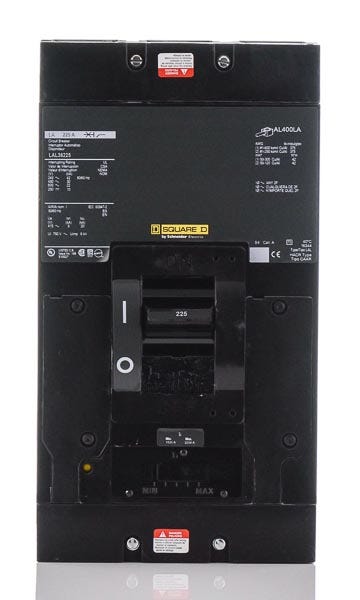

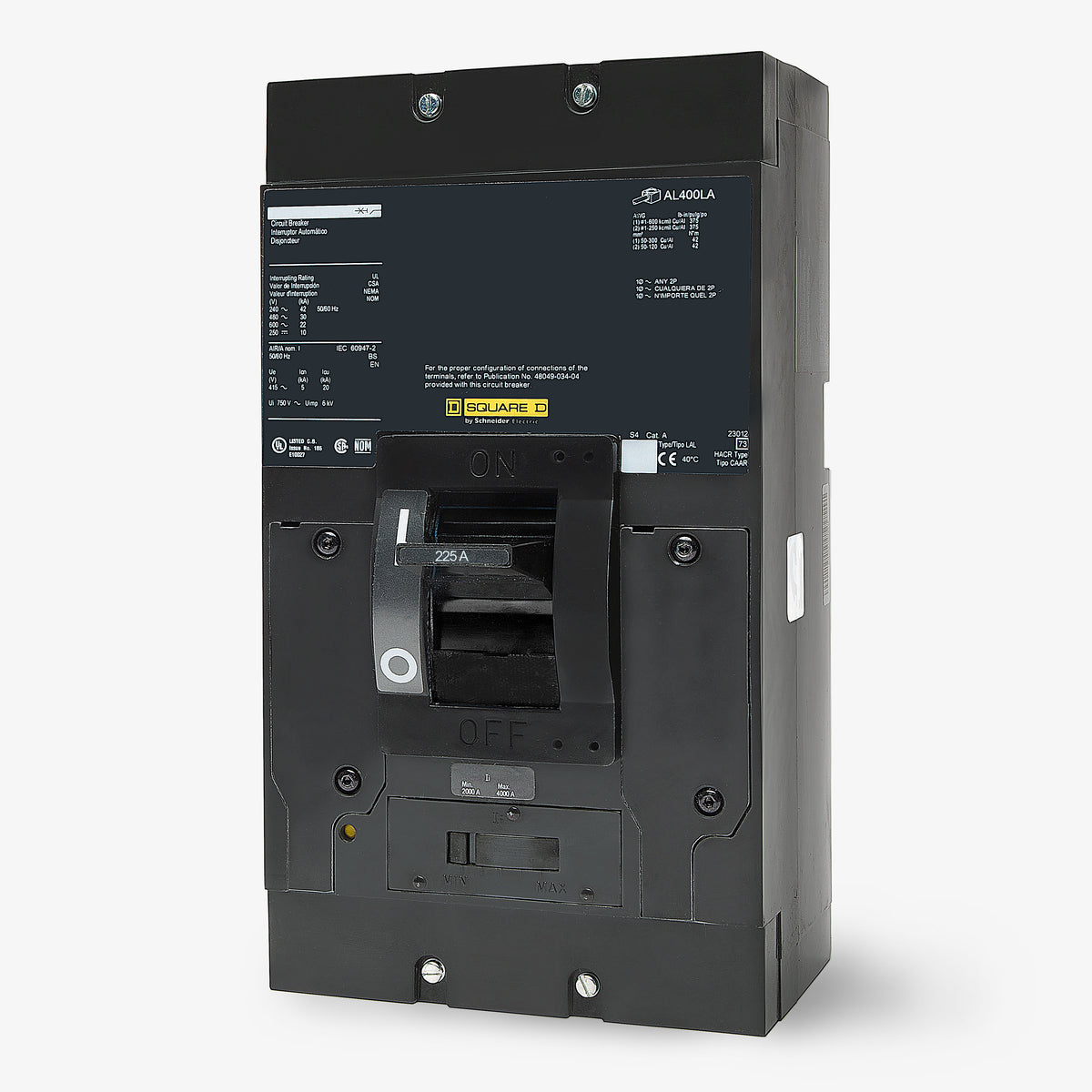

Square D LAL36225 Molded Case Circuit Breaker
- 225A
- 3 Pole
- Unit Mount
Square D
LAL36225
Molded Case Circuit Breaker
Brand
Square D
SKU
LAL36225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D LAL36225 - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D LAL36225 - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | LAL36225 |
| Series | LAL |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | LAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Panelboards, Switchboards, Enclosures |
| Wire Gauge | (1) 1 AWG-600 kcmil (Al/Cu) or (2) 1 AWG-250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (Line and Load) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Quantity
Square D LAL36225 - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | LAL36225-R |
| Series | LAL |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | LAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Panelboards, Switchboards, Enclosures |
| Wire Gauge | (1) 1 AWG-600 kcmil (Al/Cu) or (2) 1 AWG-250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (Line and Load) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Similar Items
250A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
Description
Part of the legacy L-Frame series, this 225-amp molded case circuit breaker delivers robust thermal-magnetic protection for commercial and industrial power systems. It mounts into standard Square D panelboards, switchboards, and enclosures requiring a unit-mount configuration. Featuring adjustable magnetic trip settings and a 30kAIC rating at 480VAC, it handles demanding electrical loads. Facilities upgrading their infrastructure often replace this unit with the newer PowerPacT J-Frame series.Specifications
| Brand | Square D |
|---|---|
| Part Number | LAL36225 |
| Series | LAL |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | LAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Panelboards, Switchboards, Enclosures |
| Wire Gauge | (1) 1 AWG-600 kcmil (Al/Cu) or (2) 1 AWG-250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (Line and Load) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
6 answersWhat is the adjustable magnetic trip range for the LAL36225?
The magnetic trip on this 225A breaker is adjustable from a low setting of 1125A to a high setting of 2250A.
What is the lug torque specification for the LAL36225?
The line and load lugs should be torqued to 115 lb-in (13 N.m) for both single-wire (1 AWG to 600 kcmil) and dual-wire (1 AWG to 250 kcmil) configurations.
What is the difference between Square D LAL and LAP circuit breakers?

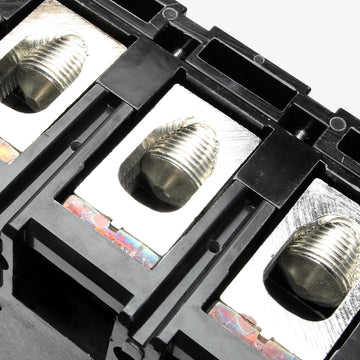

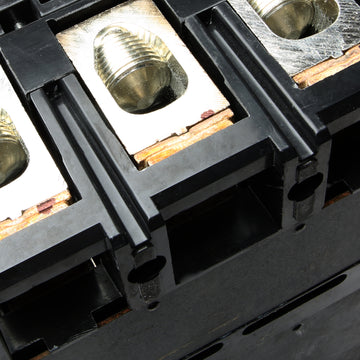

LAL breakers come with mechanical lugs on both the line (ON) and load (OFF) sides. LAP breakers have lugs on the load side but feature terminal pads on the line side.
What is the difference between the Square D LA and LH breaker series?
The LA series provides standard interrupting ratings, while the LH series offers high interrupting capacity for environments with higher available fault currents.
What is the modern replacement for the legacy LAL36225?
Facilities upgrading their infrastructure often replace legacy LA-frame breakers with the newer Square D PowerPacT J-Frame series. Note that retrofitting to a newer frame may require panel modifications or different mounting hardware.
Can the LAL36225 be installed in an I-Line panelboard?
No. The LAL36225 is a unit-mount, feed-thru circuit breaker. It does not have the plug-on jaw connections required for Square D I-Line panelboards.
