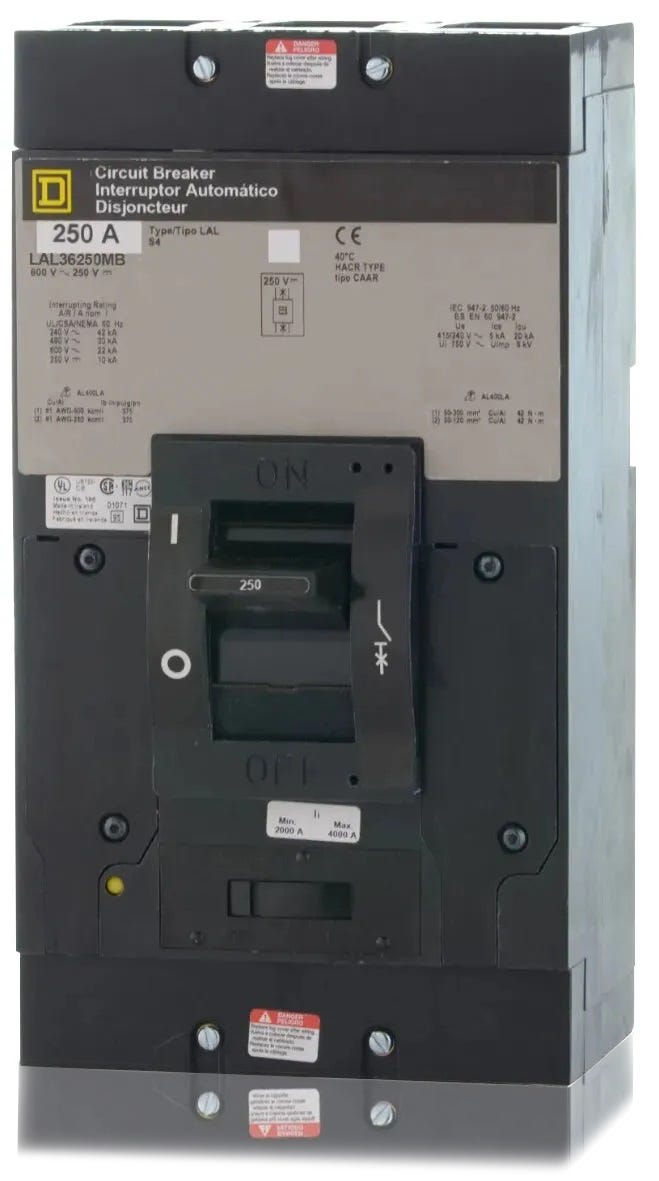

Square D LAL36250MB - 250A 3 Pole Molded Case Circuit Breaker

Brand Square D
SKU LAL36250MB
5.0
Rated 5.0 out of 5 stars
6 Reviews
Square D LAL36250MB 3 Pole Circuit Breaker
Free Shipping Over $99

Square D LAL36250MB - 250A 3 Pole Molded Case Circuit Breaker

Brand Square D
SKU LAL36250MB
5.0
Rated 5.0 out of 5 stars
6 Reviews
Select Item Condition
Earn 4350 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more
Square D LAL36250MB 3 Pole Circuit Breaker

Square D LAL36250MB - 250A 3 Pole Molded Case Circuit Breaker

New

$4350.00 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Engineered for industrial applications, the Square D LAL36250MB is a 250A, 3-pole molded case circuit breaker. It provides reliable thermal-magnetic protection for heavy-duty systems. This unit-mount breaker installs into Square D enclosures and switchboards. As a legacy L-Frame component, it is officially replaced by the newer LGL36250 model for modern upgrades. The MB suffix indicates a short operating handle, allowing it to fit behind shallow panel doors.

Specifications

Brand Square D
Series LAL
Part Number LAL36250MB
Amperage 250A
Voltage 240VAC, 480VAC, 600VAC, 250VDC
Poles 3
Phase 3
AIC Rating 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC
Mounting Style Unit Mount
Terminal Type Lugs
For Use With Industrial Enclosures, Switchboards, Panelboards
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Adjustable Magnetic
Wire Gauge (1) 1 AWG-600 kcmil (Al/Cu) or (2) 1 AWG-250 kcmil (Al/Cu)
Max Wire 600 kcmil
Min Wire 1 AWG
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch
Accessories Short Handle
Standards CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489
Approval CSA, IEC, UL
Temp Rating 40C
Construction Features HACR Rated
