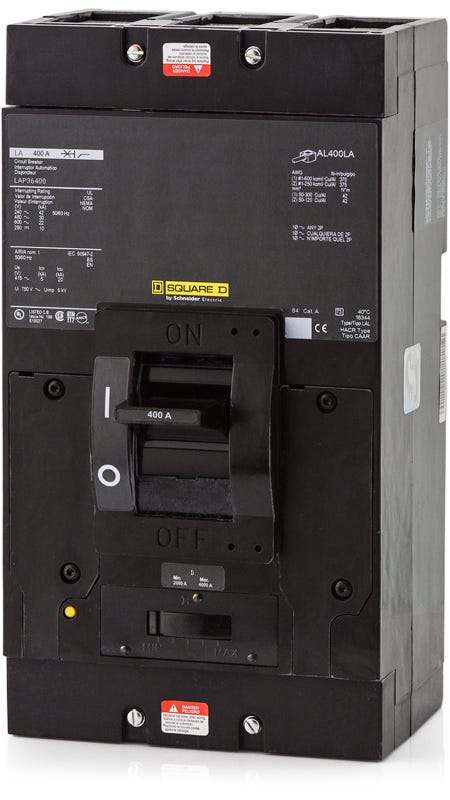

Square D LAP36400 Molded Case Circuit Breaker
- 400A
- 3 Pole
- Unit Mount
Square D
LAP36400
Molded Case Circuit Breaker
Brand
Square D
SKU
LAP36400
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D LAP36400 - 400A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D LAP36400 - 400A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | LAP36400 |
| Series | LAP |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | LAP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers, Control Panels |
| Wire Gauge | 1 AWG - 600 kcmil (Al/Cu) or (2) 1 AWG - 250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | None (Base Model) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D LAP36400 - 400A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | LAP36400-R |
| Series | LAP |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | LAP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers, Control Panels |
| Wire Gauge | 1 AWG - 600 kcmil (Al/Cu) or (2) 1 AWG - 250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | None (Base Model) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
3 Pole Circuit Breaker
250A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial power distribution, the Square D LAP36400 provides robust overload and short-circuit protection. This 400A, 3-pole unit mount breaker integrates seamlessly into Square D switchboards, motor control centers, and control panels. Featuring a fixed thermal and adjustable magnetic trip unit, it allows for precise coordination in demanding environments. Rated for 30kAIC at 480VAC, it serves as a dependable solution for legacy L-Frame installations.Specifications
| Brand | Square D |
|---|---|
| Part Number | LAP36400 |
| Series | LAP |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | LAP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers, Control Panels |
| Wire Gauge | 1 AWG - 600 kcmil (Al/Cu) or (2) 1 AWG - 250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | None (Base Model) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
5 answersWhat is the standard lug kit for the LAP36400 circuit breaker?
The standard mechanical lug kit for this breaker is the Square D AL400LA. It accepts one 1 AWG to 600 kcmil or two 1 AWG to 250 kcmil aluminum or copper conductors.
What is the magnetic trip range for the LAP36400?
The adjustable magnetic trip on this 400A breaker features a hold setting of 2000A and a trip setting of 4000A.
Can the LAP36400 be reverse fed?
Yes, this thermal magnetic molded case circuit breaker is suitable for reverse feed applications in switchboards and control panels.
What type of equipment accepts the LAP36400?
This unit mount, bolt-on circuit breaker is designed for installation in Square D switchboards, motor control centers, and industrial control panels.
Is the LAP36400 a current or legacy frame?
The LAP36400 is part of the legacy Square D L Frame series. It serves as a direct replacement for existing LA and LAP frame installations without requiring panel modifications.
