Square D LAP36400MT Circuit Breaker
- 400
- 3 Pole
- Unit
Square D
LAP36400MT
Circuit Breaker
Brand
Square D
SKU
LAP36400MT
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

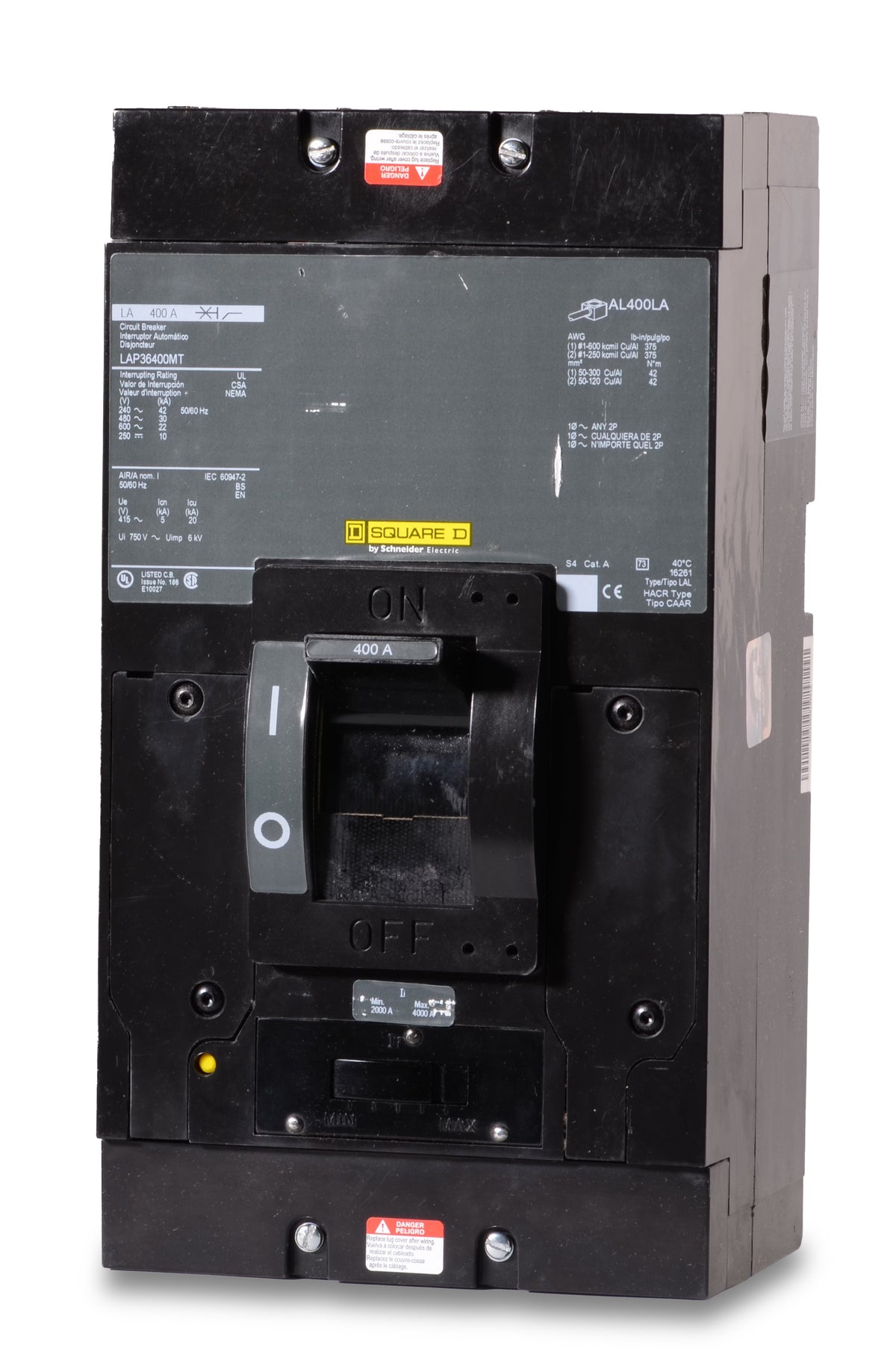

Square D LAP36400MT 3 Pole Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D LAP36400MT 3 Pole Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | LAP36400MT |
| Series | LA |
| Amperage | 400 A |
| Poles | 3 |
| Mounting Style | Unit |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 30kA@480V |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Switchboards, Motor Control Centers, Control Panels |
| Wire Gauge | 1 AWG - 600 kcmil (Al/Cu) or (2) 1 AWG - 250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line Side Lugs Included, Plug-On Shroud (Factory Installed) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D LAP36400MT 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | LA |
| Amperage | 400 A |
| Poles | 3 |
| Mounting Style | Unit |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 30kA@480V |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Switchboards, Motor Control Centers, Control Panels |
| Wire Gauge | 1 AWG - 600 kcmil (Al/Cu) or (2) 1 AWG - 250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line Side Lugs Included, Plug-On Shroud (Factory Installed) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
400A 3 Pole Molded Case Circuit Breaker
250A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
Description
Square D LAP36400MT 3 Pole Circuit Breaker
The Square D LAP36400MT is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 400 Amps and a voltage rating of 600VAC, 250VDC. It has an interrupting rating of 30kAIC at 480V. The LAP36400MT has a bolt-on connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | Square D |
|---|---|
| Series | LA |
| Amperage | 400 A |
| Poles | 3 |
| Mounting Style | Unit |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 30kA@480V |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Switchboards, Motor Control Centers, Control Panels |
| Wire Gauge | 1 AWG - 600 kcmil (Al/Cu) or (2) 1 AWG - 250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line Side Lugs Included, Plug-On Shroud (Factory Installed) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
5 answersWhat does the MT suffix indicate on the LAP36400MT catalog number?
The MT suffix signifies that this circuit breaker includes a factory-installed plug-on shroud. This shroud is typically located on the OFF end of the breaker to facilitate specific connections in Square D switchboards and motor control centers.
Is the LAP36400MT compatible with Square D I-Line panelboards?
No. The LAP36400MT is a unit-mount (bolt-on) circuit breaker designed for switchboards, motor control centers, and control panels. I-Line panelboards require a breaker with plug-on jaw connections, such as the standard LA36400.
How does the adjustable magnetic trip function on the LAP36400MT?
While the thermal overload protection is fixed, the instantaneous magnetic trip element can be adjusted. This allows panel builders and electricians to tune the short-circuit response range to properly coordinate with downstream devices and specific motor loads.
How can I safely verify the mechanical operation of this breaker?
The LAP36400MT is equipped with a push-to-trip button on the front face. This feature allows electricians to manually trip the breaker mechanism and verify its mechanical integrity without requiring exposure to live electrical parts.
What is the modern replacement path for the legacy LAP36400MT?
While the LAP36400MT remains available for maintaining existing systems, facilities upgrading to modern switchgear typically replace these legacy L-Frame breakers with Square D PowerPact L-Frame models (such as the LJA series) using an appropriate retrofit kit.
