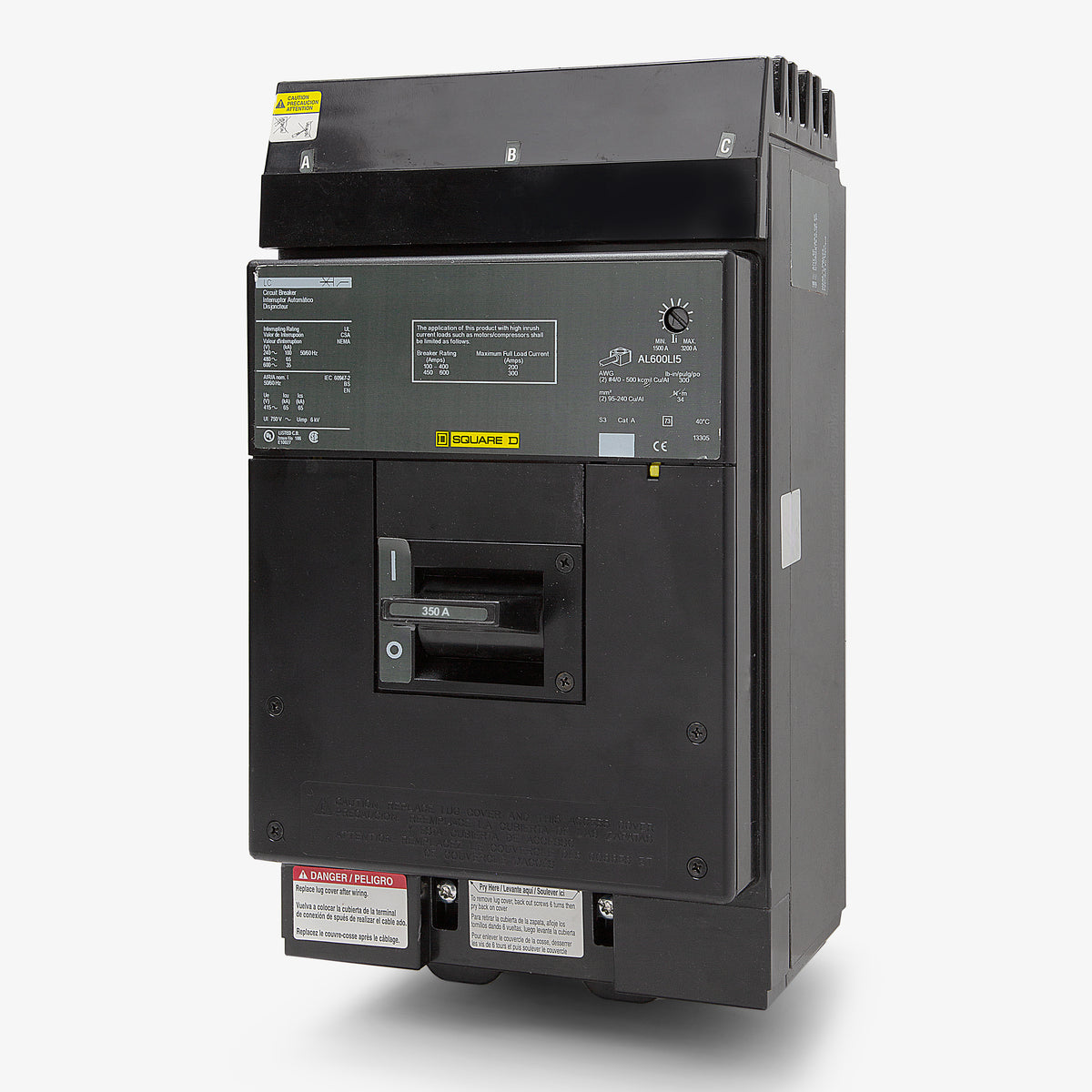

Square D LC36350 Molded Case Circuit Breaker
- 350A
- 3 Pole
- I-Line
Square D
LC36350
Molded Case Circuit Breaker
Brand
Square D
SKU
LC36350
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D LC36350 - 350A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D LC36350 - 350A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | LC36350 |
| Series | LC |
| Amperage | 350A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | LC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | (2) 4/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 4/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Extra High Interrupting Capacity, HACR Rated |
Quantity
Square D LC36350 - 350A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | LC36350-R |
| Series | LC |
| Amperage | 350A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | LC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | (2) 4/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 4/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Extra High Interrupting Capacity, HACR Rated |
Similar Items
450A 3 Pole Molded Case Circuit Breaker
500A 3 Pole Molded Case Circuit Breaker
600A 3 Pole Molded Case Circuit Breaker
Description
Built for rugged industrial environments, the LC36350 is a 350A molded case circuit breaker from Square D's legacy L-Frame series. It provides dependable thermal-magnetic LI protection for commercial electrical systems. This breaker mounts into Square D I-Line panelboards utilizing a plug-on connection. Facilities looking to modernize can replace this unit with the PowerPact LJA36400U31X. Delivering a 65 kAIC interrupting rating at 480VAC, it is engineered to handle severe fault conditions.Specifications
| Brand | Square D |
|---|---|
| Part Number | LC36350 |
| Series | LC |
| Amperage | 350A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | LC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | (2) 4/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 4/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Extra High Interrupting Capacity, HACR Rated |
Product FAQs
7 answersWhat panels are compatible with the Square D LC36350?
This breaker is designed exclusively for Square D I-Line panelboards and switchboards. It uses a plug-on jaw connection to mount directly to the internal bus.
What is the modern replacement for the legacy LC36350?
For facilities looking to upgrade, this legacy L-Frame breaker can typically be replaced by the modern PowerPact L-Frame series, such as the LJA36400U31X, which mounts into the same I-Line panelboards.

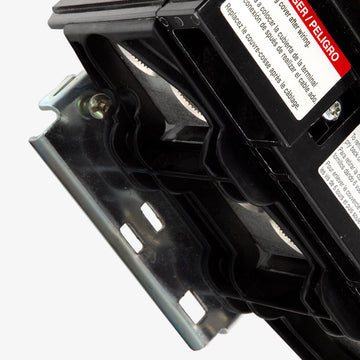

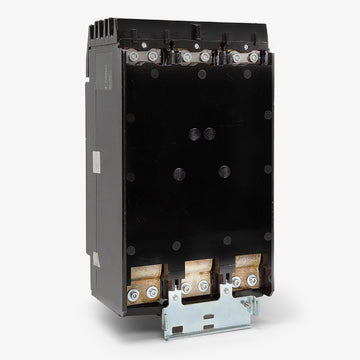

What are the wire size limits for the lugs on this 350A breaker?
The factory lugs accept two conductors per phase, allowing you to run parallel cables. The terminals accept either aluminum or copper wire sized from 4/0 AWG to 500 kcmil.
Are the trip settings adjustable on this legacy LC frame breaker?
The long-time thermal trip is fixed at 350 amps, but the instantaneous magnetic trip is adjustable. This allows you to fine-tune the short-circuit response to achieve better coordination with other protective devices in your system.
Can this breaker be used in DC systems?
Yes. In addition to its AC ratings, this unit is certified for 250VDC applications with a 10kA interrupting capacity, making it suitable for specialized industrial DC power distribution.

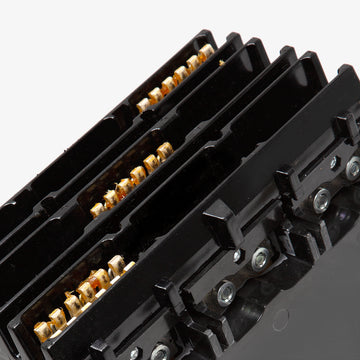

Do I need separate busbar hardware to install this breaker?
No. The breaker features an integrated I-Line jaw connection that pushes directly onto the panelboard bus assembly. This eliminates the need for separate bolt-on bus hardware, streamlining the installation.
Is the LC36350 circuit breaker HACR rated?
Yes, this model carries an HACR rating, meaning it is certified for group motor installations in heating, air conditioning, and refrigeration equipment. It also meets standard UL 489 requirements for molded case circuit breakers.
