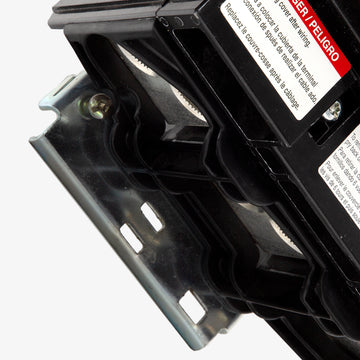

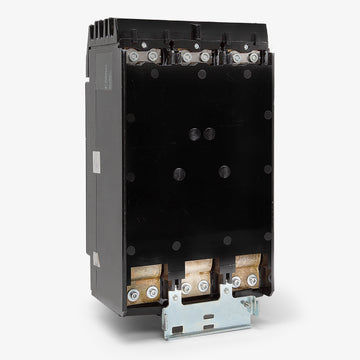

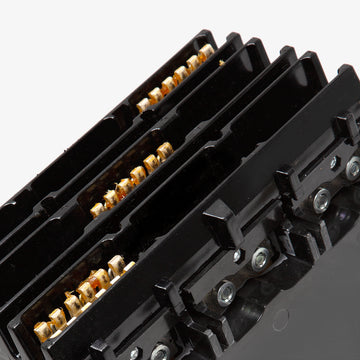

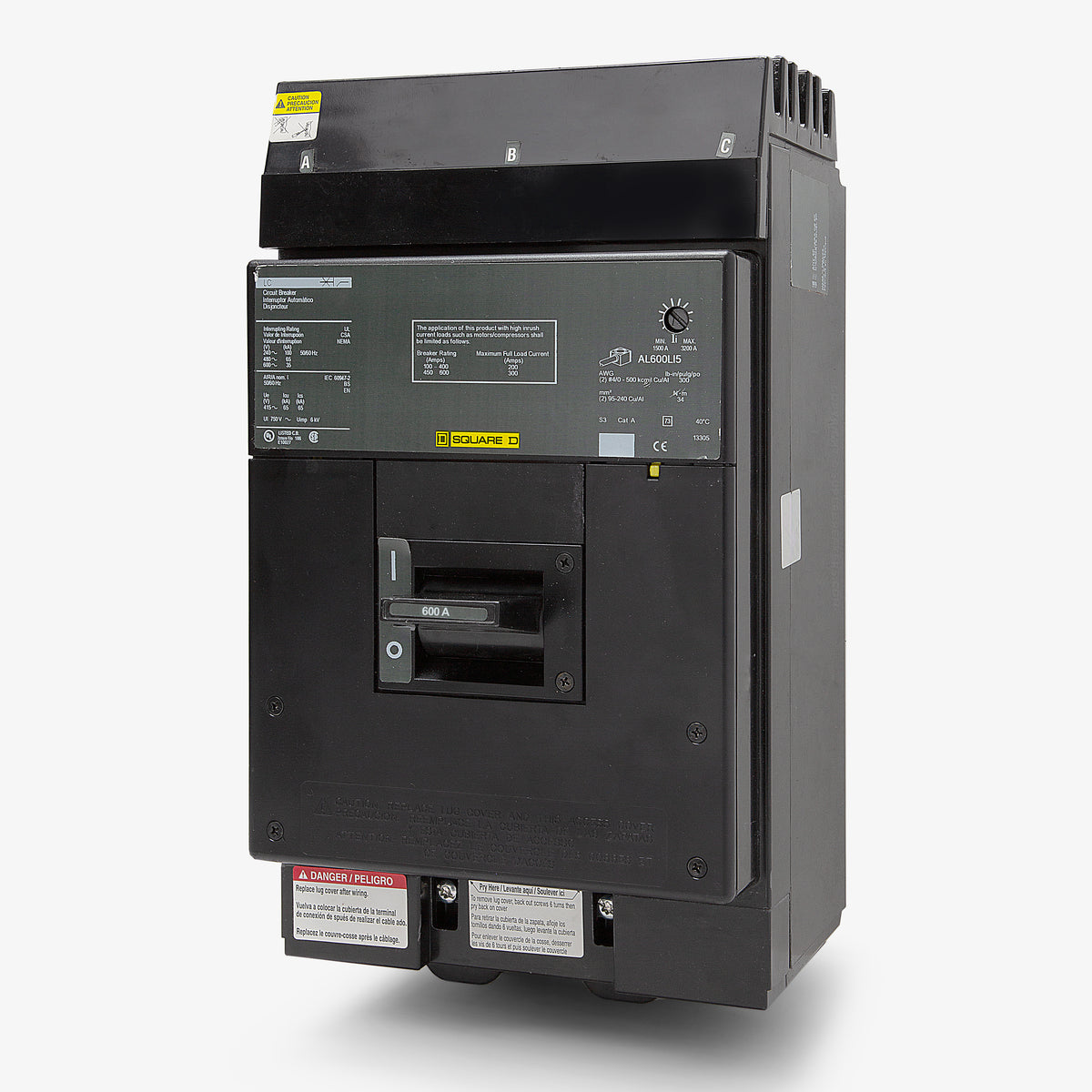

Square D LC36600 Molded Case Circuit Breaker
- 600A
- 3 Pole
- I-Line
Square D
LC36600
Molded Case Circuit Breaker
Brand
Square D
SKU
LC36600
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D LC36600 - 600A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D LC36600 - 600A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | LC36600 |
| Series | LC |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | LC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | (2) 4/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 4/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Extra High Interrupting Capacity, HACR Rated |
Quantity
Square D LC36600 - 600A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | LC36600-R |
| Series | LC |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | LC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | (2) 4/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 4/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Extra High Interrupting Capacity, HACR Rated |
Similar Items
450A 3 Pole Molded Case Circuit Breaker
350A 3 Pole Molded Case Circuit Breaker
300A 3 Pole Molded Case Circuit Breaker
Description
Part of the legacy L-Frame series, this 600-ampere molded case circuit breaker delivers robust thermal-magnetic protection for commercial and industrial distribution networks. The unit features fixed thermal and adjustable magnetic trip settings to accommodate specific load requirements. Designed for seamless integration, it installs into Square D I-Line panelboards and switchboards. Note that this model has been superseded by the LJA36600U31X for applications requiring adjustable trip units.Specifications
| Brand | Square D |
|---|---|
| Part Number | LC36600 |
| Series | LC |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | LC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | (2) 4/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 4/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Extra High Interrupting Capacity, HACR Rated |
Product FAQs
5 answersWhat is the modern replacement for the legacy LC36600 circuit breaker?
Schneider Electric has superseded the LC36600 with the PowerPact L-frame LJA36600U31X. This newer model is a direct I-Line replacement but utilizes an advanced electronic MicroLogic trip unit instead of the older thermal-magnetic design.
What is the adjustable magnetic trip range for the LC36600?
The magnetic trip unit on this 600A breaker can be adjusted between a low setting of 3000A and a high setting of 4200A to accommodate varying inrush current requirements.
What replacement lug kit is required for the LC36600?
The standard mechanical lug kit for the LC36600 is the AL600LI5. These lugs accept two 4/0 AWG to 500 kcmil aluminum or copper conductors per phase.
Can the LC36600 be installed in standard NQ or NF distribution panels?
No. The LC36600 utilizes an I-Line plug-on connection and is exclusively compatible with Square D I-Line panelboards and switchboards. It will not fit in NQ or NF lighting panels.
Is the LC36600 considered a current-limiting circuit breaker?
No, the LC36600 provides extra-high interrupting capacity but is not formally rated as current-limiting. In the legacy Square D L-frame series, current-limiting performance requires the LI36600 (I-Limiter) model.
