Square D LDA36400U33X Molded Case Circuit Breaker
- 400A
- 3 Pole
- I-Line
Square D
LDA36400U33X
Molded Case Circuit Breaker
Brand
Square D
SKU
LDA36400U33X
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

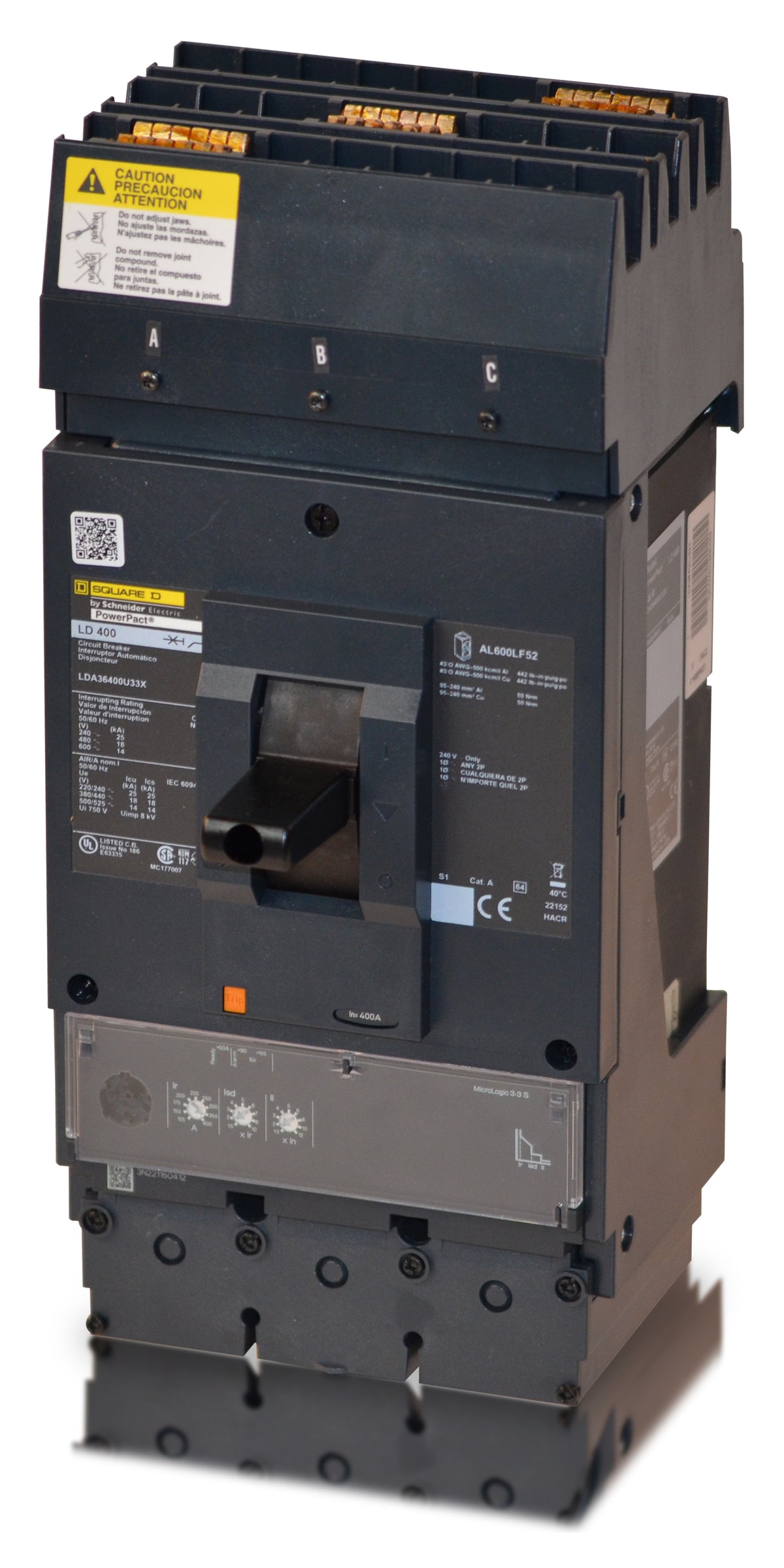

Square D LDA36400U33X - 400A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
400A 3 Pole Molded Case Circuit Breaker
400A 3 Pole Molded Case Circuit Breaker
600A 3 Pole Molded Case Circuit Breaker
Description
Rated for 400 amps, this PowerPacT L-Frame circuit breaker brings sophisticated power distribution to commercial facilities. The 3-pole device handles voltages up to 600VAC. Engineered for Square D I-Line panelboards and switchboards, the breaker features a plug-on mounting design. This allows for efficient installation. It includes a MicroLogic 3.3S electronic trip unit, providing adjustable long-time, short-time, and instantaneous (LSI) protection.Specifications
| Brand | Square D |
|---|---|
| Part Number | LDA36400U33X |
| Series | LDA |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC |
| Amperage Range | 160-400A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 2 x 2/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Communication Module |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NEMA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, True RMS Sensing, RoHS Compliant, Mercury Free |
Product FAQs
6 answersWhat does the U33X suffix indicate on this PowerPacT breaker?
The U33X suffix designates a MicroLogic 3.3S electronic trip unit. This provides field-adjustable Long-Time, Short-Time, and Instantaneous (LSI) protection settings, allowing for precise coordination with other breakers in your distribution system.
Can the LDA36400U33X replace older 400A Square D I-Line breakers?
Yes, the PowerPacT L-Frame series is the modern replacement for obsolete LA, LH, and LC frame I-Line breakers. Note that the L-Frame requires 6 inches of mounting space, so replacing a smaller frame may require removing blank extensions or modifying the panelboard deadfront.
What tools are required for the load side lug connections?
The load side mechanical lugs accept 2 AWG to 500 kcmil aluminum or copper conductors. Securing these cables typically requires an 8 mm (5/16 inch) hex wrench. Always refer to the breaker faceplate for exact torque specifications during installation.
Is this circuit breaker rated for 100 percent continuous current?
No, the standard LDA36400U33X is rated for 80 percent continuous current. Breakers in this family with a 100 percent continuous rating will include a "C" suffix in the catalog number.
Does this breaker include a manual testing mechanism?
Yes, all PowerPacT L-Frame circuit breakers feature an integral push-to-trip button on the front cover. This allows electricians to manually trip the breaker to verify the mechanical operation of the trip mechanism.
Can this 3-pole breaker be used in a single-phase application?
PowerPacT L-Frame breakers equipped with MicroLogic trip units, such as the U33X, are marked for single-phase use on 240VAC circuits only. For 480VAC or 600VAC applications, they must be installed in a three-phase system.
