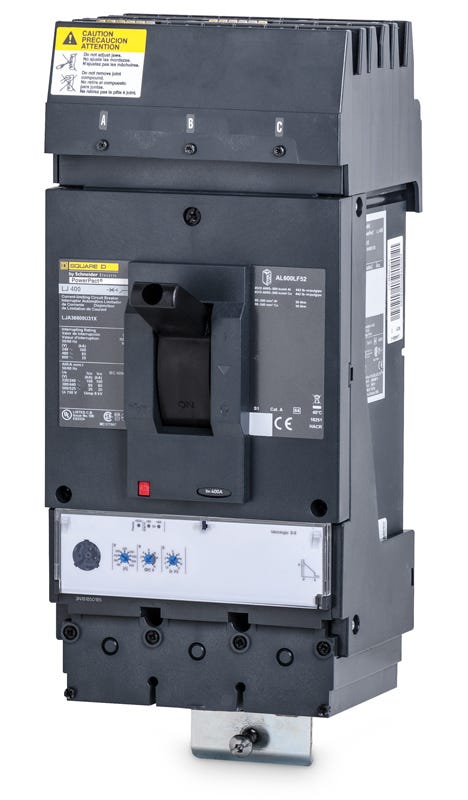

Square D LJA36250U31X Molded Case Circuit Breaker
- 250A
- 3 Pole
- I-Line
Square D
LJA36250U31X
Molded Case Circuit Breaker
Brand
Square D
SKU
LJA36250U31X
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D LJA36250U31X - 250A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D LJA36250U31X - 250A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Series | LJA |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC |
| Amperage Range | 100-250A |
|---|
| Frame Type | L Frame |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | (1) 2 AWG - 500 kcmil (Al) or (1) 2 AWG - 600 kcmil (Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 2 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Communication Module |
|---|---|
| Accessories | Micrologic 3.3 Trip Unit |
| Standards | CSA C22.2 No 5, IEC 60947-2, NEMA AB1, NOM-003-SCFI-2000, UL 489 |
| Approval | CCC, CE, CSA, IEC, NEMA, NOM, UKCA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, True RMS Sensing, Mercury Free, PVC Free |
Sold out
Quantity
Square D LJA36250U31X - 250A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | LJA |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC |
| Amperage Range | 100-250A |
|---|
| Frame Type | L Frame |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | (1) 2 AWG - 500 kcmil (Al) or (1) 2 AWG - 600 kcmil (Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 2 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Communication Module |
|---|---|
| Accessories | Micrologic 3.3 Trip Unit |
| Standards | CSA C22.2 No 5, IEC 60947-2, NEMA AB1, NOM-003-SCFI-2000, UL 489 |
| Approval | CCC, CE, CSA, IEC, NEMA, NOM, UKCA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, True RMS Sensing, Mercury Free, PVC Free |
Similar Items
400A 3 Pole Molded Case Circuit Breaker
400A 3 Pole Molded Case Circuit Breaker
Schneider ElectricLJA36400U44X
400A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial power distribution, the Square D LJA36250U31X is a 3-pole, 250A electronic trip molded case circuit breaker. It is part of the robust PowerPacT L-Frame family, designed to handle demanding electrical environments. This breaker installs into Square D I-Line panelboards and switchboards, utilizing a plug-on line connection and load-side lugs. It features a Micrologic 3.3 trip unit, delivering adjustable long-time and instantaneous (LI) protection.Specifications
| Brand | Square D |
|---|---|
| Series | LJA |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC |
| Amperage Range | 100-250A |
|---|
| Frame Type | L Frame |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | (1) 2 AWG - 500 kcmil (Al) or (1) 2 AWG - 600 kcmil (Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 2 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Communication Module |
|---|---|
| Accessories | Micrologic 3.3 Trip Unit |
| Standards | CSA C22.2 No 5, IEC 60947-2, NEMA AB1, NOM-003-SCFI-2000, UL 489 |
| Approval | CCC, CE, CSA, IEC, NEMA, NOM, UKCA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, True RMS Sensing, Mercury Free, PVC Free |
Product FAQs
7 answersWhat panels are compatible with the LJA36250U31X breaker?
This breaker features an I-Line mounting style and is designed exclusively for installation in Square D I-Line panelboards and I-Line switchboards.
What does the U31X suffix indicate on this catalog number?
The U31X suffix designates that the breaker is equipped with a MicroLogic 3.3 electronic trip unit. This unit provides adjustable long-time and instantaneous (LI) trip functions rather than fixed thermal-magnetic protection.
Can I use this 3-pole L-frame breaker on a single-phase system?
Yes, three-pole PowerPacT L-frame breakers with MicroLogic trip units are marked for single-phase use, but only on 240V AC circuits. You can use any two poles for the single-phase connection.
What wire sizes are accepted by the lugs on the LJA36250U31X?
The mechanical lugs on this breaker will accept one 2 AWG to 500 kcmil aluminum wire, or one 2 AWG to 600 kcmil copper wire per terminal.
How does the LJA36250U31X connect to the power source?
It utilizes an I-Line plug-in connection on the line side to mount directly and securely to the panelboard bus, while the load side uses standard mechanical lugs for wire terminations.
Is the LJA36250U31X rated for 80 percent or 100 percent continuous load?
This specific catalog number carries a standard 80 percent continuous current rating.
Does the U31X trip unit on this breaker include ground fault protection?
No, the MicroLogic 3.3 trip unit only provides long-time and instantaneous (LI) protection. It does not include short-time or equipment ground fault sensing capabilities.
