Square D LJA36250U33X Circuit Breaker
- 250
- 3 Pole
- I-Line
Square D
LJA36250U33X
Circuit Breaker
Brand
Square D
SKU
LJA36250U33X
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D LJA36250U33X 3 Pole Circuit Breaker
New
Quantity
Quantity
Square D LJA36250U33X 3 Pole Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Series | PowerPacT L |
| Amperage | 250 A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC |
| Amperage Range | 100-250A |
|---|
| Frame Type | L |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | (1) 2 AWG - 500 kcmil (Al) or (1) 2 AWG - 600 kcmil (Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 2 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Communication Module, Motor Operator |
|---|---|
| Accessories | Load Side Lugs (AL400L61K3) |
| Standards | RoHS, REACh, HACR |
| Approval | CCC, CE, CSA, IEC, NEMA, NOM, UKCA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, True RMS Sensing, Mercury Free, PVC Free, 80% Rated, Double-Break Rotary Contact Structure, Trip-Free Mechanism |
Quantity
Square D LJA36250U33X 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | PowerPacT L |
| Amperage | 250 A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC |
| Amperage Range | 100-250A |
|---|
| Frame Type | L |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | (1) 2 AWG - 500 kcmil (Al) or (1) 2 AWG - 600 kcmil (Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 2 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Communication Module, Motor Operator |
|---|---|
| Accessories | Load Side Lugs (AL400L61K3) |
| Standards | RoHS, REACh, HACR |
| Approval | CCC, CE, CSA, IEC, NEMA, NOM, UKCA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, True RMS Sensing, Mercury Free, PVC Free, 80% Rated, Double-Break Rotary Contact Structure, Trip-Free Mechanism |
Similar Items
400A 3 Pole Molded Case Circuit Breaker
400A 3 Pole Molded Case Circuit Breaker
400A 3 Pole Molded Case Circuit Breaker
Description
Square D LJA36250U33X 3 Pole Circuit Breaker

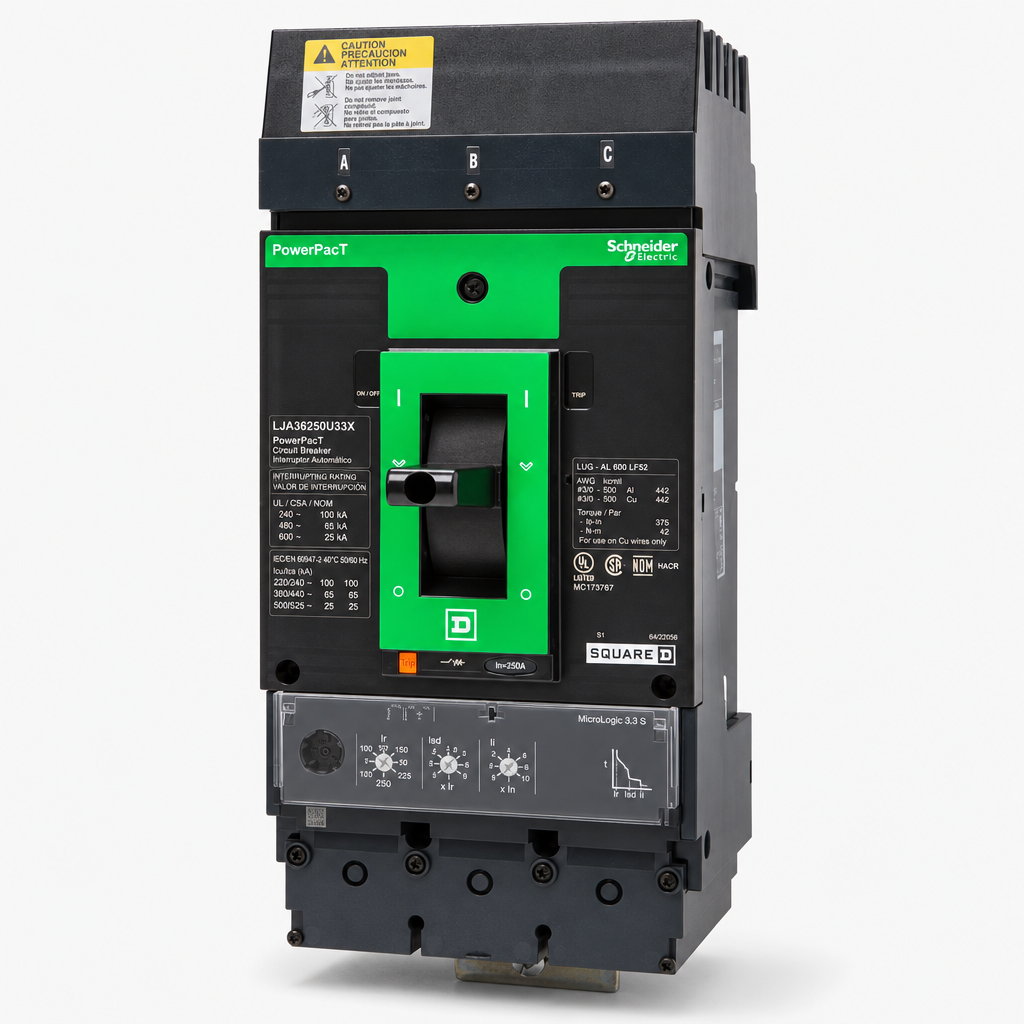

The Square D LJA36250U33X is a 3 Pole solid state molded case circuit breaker with a current rating of 250 Amps and a voltage rating of 600VAC. It has an interrupting rating of 65kAIC at 480VAC. The LJA36250U33X has an I-Line style plug-in connection type and includes long time, short time and instantaneous trip functions.
Specifications
| Brand | Square D |
|---|---|
| Series | PowerPacT L |
| Amperage | 250 A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC |
| Amperage Range | 100-250A |
|---|
| Frame Type | L |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | (1) 2 AWG - 500 kcmil (Al) or (1) 2 AWG - 600 kcmil (Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 2 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Communication Module, Motor Operator |
|---|---|
| Accessories | Load Side Lugs (AL400L61K3) |
| Standards | RoHS, REACh, HACR |
| Approval | CCC, CE, CSA, IEC, NEMA, NOM, UKCA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, True RMS Sensing, Mercury Free, PVC Free, 80% Rated, Double-Break Rotary Contact Structure, Trip-Free Mechanism |
Product FAQs
5 answersWhich panelboards are compatible with the LJA36250U33X?
This breaker is designed exclusively for use in Square D I-Line panelboards and I-Line switchboards. It cannot be used in standard unit-mount or drawout enclosures.
How are the line and load connections configured on the LJA36250U33X?
The line side utilizes an I-Line plug-in connection for direct bus mounting in compatible panelboards. The load side features mechanical lugs that accept one 2 AWG to 500 kcmil aluminum wire or one 2 AWG to 600 kcmil copper wire.
What does the U33X suffix indicate on this circuit breaker?
The U33X suffix specifies that the breaker is equipped with a MicroLogic 3.3S electronic trip unit. This provides adjustable Long-Time, Short-Time, and Instantaneous (LSI) trip functions for precise system coordination.
Is the LJA36250U33X rated for 80 percent or 100 percent continuous current?
This PowerPacT L-frame circuit breaker carries a standard continuous current rating of 80 percent.
What does the LJA prefix designate in the Square D catalog number?
The "L" designates the PowerPacT L-frame family, the "J" indicates the interrupting rating tier of 65kAIC at 480VAC, and the "A" specifies the I-Line plug-in mounting style.
