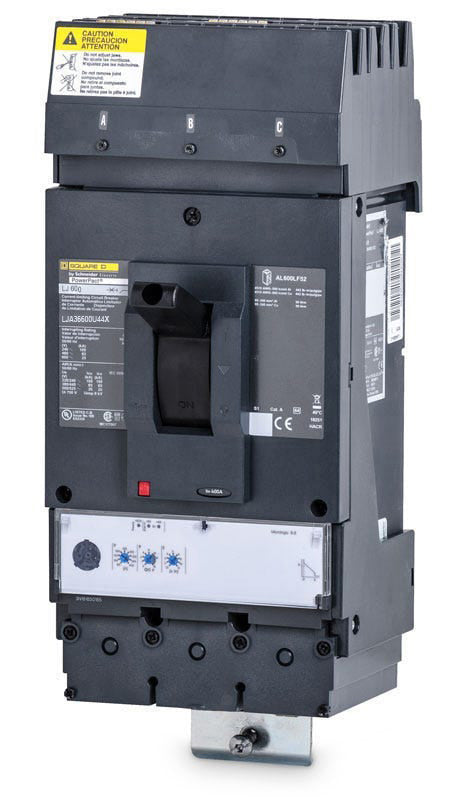

Schneider Electric LJA36600U44X Molded Case Circuit Breaker
- 600A
- 3 Pole
- I-Line
Schneider Electric
LJA36600U44X
Molded Case Circuit Breaker
Brand
Schneider Electric
SKU
LJA36600U44X
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Schneider Electric LJA36600U44X - 600A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Schneider Electric LJA36600U44X - 600A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Schneider Electric |
|---|---|
| Part Number | LJA36600U44X |
| Series | LJA |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC |
| Amperage Range | 240-600A |
|---|
| Frame Type | LJA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | (2) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Trip Unit Model | MicroLogic 6.3A |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Padlock Attachment, Communication Module |
|---|---|
| Accessories | MicroLogic 6.3A Trip Unit |
| Standards | CSA C22.2 No 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, NEMA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, 80% Rated, Visual Trip Indicator, True RMS Sensing, HACR Rated, RoHS Compliant, Mercury Free |
Sold out
Quantity
Schneider Electric LJA36600U44X - 600A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Schneider Electric |
|---|---|
| Series | LJA |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC |
| Amperage Range | 240-600A |
|---|
| Frame Type | LJA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | (2) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Trip Unit Model | MicroLogic 6.3A |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Padlock Attachment, Communication Module |
|---|---|
| Accessories | MicroLogic 6.3A Trip Unit |
| Standards | CSA C22.2 No 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, NEMA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, 80% Rated, Visual Trip Indicator, True RMS Sensing, HACR Rated, RoHS Compliant, Mercury Free |
Similar Items
600A 3 Pole Molded Case Circuit Breaker
Schneider ElectricLJA36400U44X
400A 3 Pole Molded Case Circuit Breaker
Schneider ElectricLJA36400U43X
400A 3 Pole Molded Case Circuit Breaker
Description
The Schneider Electric LJA36600U44X is a 600A, 3-pole MCCB from the PowerPacT L-Frame series. It is engineered to provide reliable electronic trip protection for 600VAC systems. Featuring an I-Line mounting style, this breaker installs seamlessly into Square D I-Line panelboards and switchboards for commercial and industrial distribution. It includes a MicroLogic 6.3A trip unit, delivering adjustable LSIG protection with integrated ground fault sensing. It boasts a 65 kAIC rating at 480V.Specifications
| Brand | Schneider Electric |
|---|---|
| Part Number | LJA36600U44X |
| Series | LJA |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC |
| Amperage Range | 240-600A |
|---|
| Frame Type | LJA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | (2) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Trip Unit Model | MicroLogic 6.3A |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Padlock Attachment, Communication Module |
|---|---|
| Accessories | MicroLogic 6.3A Trip Unit |
| Standards | CSA C22.2 No 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, NEMA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, 80% Rated, Visual Trip Indicator, True RMS Sensing, HACR Rated, RoHS Compliant, Mercury Free |
Product FAQs
5 answersWhat panels accept the LJA36600U44X breaker?
This PowerPacT L-frame breaker features an I-Line plug-in connection. It is designed exclusively for installation in Square D I-Line panelboards and switchboards. It is not compatible with standard bolt-on or plug-on commercial load centers.
Is the LJA36600U44X continuous duty rated at 100 percent?
No, this standard thermal-magnetic footprint breaker is strictly 80 percent rated. For compliance, continuous loads applied for three hours or more must not exceed 480 amps.
What does the U44X suffix designate on this circuit breaker?
The U44X suffix indicates the factory inclusion of a MicroLogic 6.3 A (Ammeter) electronic trip unit. This specific module provides an integrated ammeter and LSIG functionality for long-time, short-time, instantaneous, and ground-fault protection.
What are the torque requirements for the load lugs?
The tightening torque for the factory load lugs is 442.5 lb-in or 50 N.m. These lugs accept dual aluminum or copper conductors ranging from 3/0 AWG to 500 kcmil.
What safety mechanisms prevent overheating when swapping trip units on this frame?
PowerPacT trip units are secured with torque-limiting screws. The screw heads break off automatically when the correct mounting torque is reached, ensuring a secure connection and eliminating the risk of overheating from under-torqued internal contacts.
