Square D LX36200G Molded Case Circuit Breaker
- 200A
- 3 Pole
- I-Line
Square D
LX36200G
Molded Case Circuit Breaker
Brand
Square D
SKU
LX36200G
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

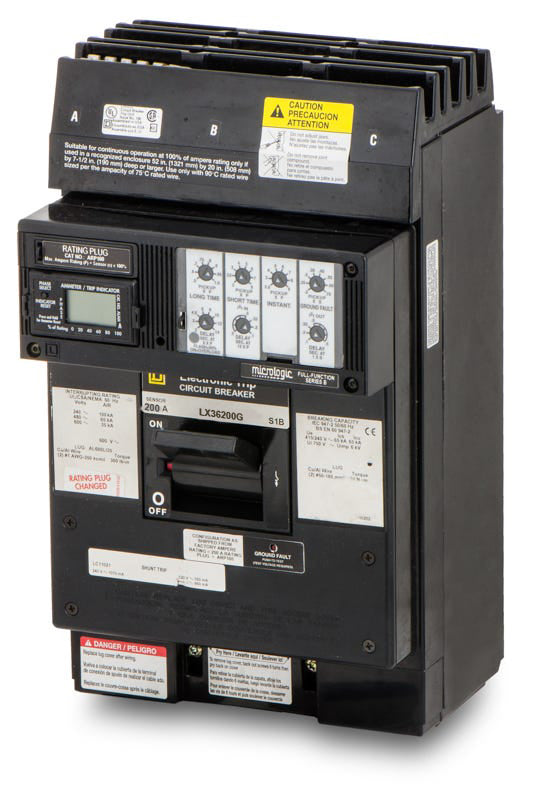

Square D LX36200G - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
250A 3 Pole Molded Case Circuit Breaker
250A 3 Pole Molded Case Circuit Breaker
400A 3 Pole Molded Case Circuit Breaker
Description
Part of the legacy L-Frame series, the Square D LX36200G delivers 200A of reliable power distribution. This 3-pole MCCB features a Micrologic electronic trip unit with adjustable Long-Time, Short-Time, Instantaneous, and Ground Fault (LSIG) settings. It mounts into standard Square D I-Line panelboards and switchboards. It can be replaced by the modern PowerPacT L-Frame series. Rated 65 kAIC at 480VAC, true RMS sensing ensures precise coordination and superior solid-state protection.Specifications
| Brand | Square D |
|---|---|
| Part Number | LX36200G |
| Series | LX |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 35kA @ 600Y/347VAC, 35kA @ 600VAC |
| Amperage Range | 100-200A |
|---|
| Frame Type | LX |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | (1) 1 AWG-600 kcmil or (2) 1 AWG-250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs (Load Side) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | True RMS Sensing |
Product FAQs
5 answersWhat type of panelboards is the LX36200G compatible with?
This breaker is designed exclusively for Square D I-Line panelboards and switchboards. It features an I-Line style plug-in connection and will not fit standard QO or NQ panels.
What does the LSIG trip function on this breaker indicate?
The LSIG designation means the Micrologic electronic trip unit includes adjustable settings for Long-Time, Short-Time, Instantaneous, and Ground-Fault protection. This allows for precise coordination in commercial and industrial electrical systems.
Is the Square D LX frame still in active production?
The LX frame is a legacy molded case circuit breaker series. For new installations or direct upgrades, it has been superseded by the modern Square D PowerPacT L-Frame series.
What wire sizes are accepted by the load side lugs on the LX36200G?
The included lugs accept either one 1 AWG to 600 kcmil conductor or two 1 AWG to 250 kcmil conductors. They are rated for both aluminum and copper wiring.
Does the LX36200G provide ground-fault equipment protection?
Yes, the G suffix in the catalog number indicates that this breaker includes integrated ground-fault protection as part of its solid-state electronic trip unit.
