Square D LX36250G Molded Case Circuit Breaker
- 250A
- 3 Pole
- I-Line
Square D
LX36250G
Molded Case Circuit Breaker
Brand
Square D
SKU
LX36250G
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D LX36250G - 250A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Quantity
Square D LX36250G - 250A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | LX36250G-R |
| Series | LX |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 35kA @ 600Y/347VAC, 35kA @ 600VAC |
| Amperage Range | 125-250A |
|---|
| Frame Type | LX |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | (1) 1 AWG-600 kcmil or (2) 1 AWG-250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs (Load Side) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | True RMS Sensing, Non-Interchangeable Trip, High Interrupting Capacity |
Sold out
Quantity
Square D LX36250G - 250A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | LX36250G-R |
| Series | LX |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 35kA @ 600Y/347VAC, 35kA @ 600VAC |
| Amperage Range | 125-250A |
|---|
| Frame Type | LX |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | (1) 1 AWG-600 kcmil or (2) 1 AWG-250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs (Load Side) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | True RMS Sensing, Non-Interchangeable Trip, High Interrupting Capacity |
Similar Items
400A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
Description

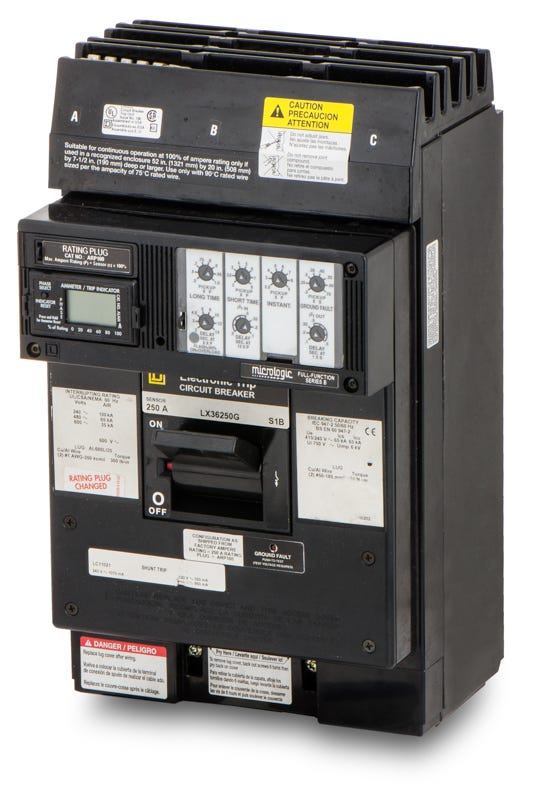

Providing comprehensive circuit defense, the Square D LX36250G is a 3-pole, 250A electronic trip molded case circuit breaker with a Micrologic trip unit. This L-frame breaker installs into Square D I-Line panelboards. When upgrading, it is replaced by equivalent PowerPacT L-Frame LSIG breakers using an HNM1BL filler plate. Rated 65 kAIC at 480VAC, it features fully adjustable LSIG settings. True RMS sensing ensures precise coordination and enhanced safety for industrial systems.Specifications
| Brand | Square D |
|---|---|
| Part Number | LX36250G-R |
| Series | LX |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 35kA @ 600Y/347VAC, 35kA @ 600VAC |
| Amperage Range | 125-250A |
|---|
| Frame Type | LX |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | (1) 1 AWG-600 kcmil or (2) 1 AWG-250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs (Load Side) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | True RMS Sensing, Non-Interchangeable Trip, High Interrupting Capacity |
Product FAQs
6 answersWhat type of panelboards are compatible with the LX36250G circuit breaker?
This breaker features an I-Line style plug-in connection, making it exclusively compatible with Square D I-Line panelboards and switchboards.
What does the G in the LX36250G catalog number indicate?
The G suffix signifies that the breaker is equipped with an LSIG electronic trip unit, which provides Long-Time, Short-Time, Instantaneous, and Ground-Fault protection.
How does the I-Line connection on this breaker install into the panel?
The breaker uses a plug-on jaw connection that mounts directly onto the busbar of an I-Line panelboard, while the load side utilizes standard mechanical lugs for wire termination.
Is the Square D LX36250G still in active production?
The LX36250G is a legacy molded case circuit breaker. For new installations or direct upgrades, it is typically superseded by the current Square D PowerPact L-frame series.
What are the load lug wire capacity options for this breaker?
The standard load lugs accept either a single 1 AWG to 600 kcmil conductor or dual 1 AWG to 250 kcmil conductors, and are rated for both aluminum and copper wiring.
Can the trip settings on the LX36250G be adjusted in the field?
Yes, the solid-state electronic trip unit allows for field-adjustable settings to precisely coordinate the breaker with your specific electrical system requirements.
